    480x800 4 Inch TFT LCD Module Display IPS With RGB Interface RTP Touch

    Ask Lasest Price
    Brand Name : SAEF
    Model Number : SF-TC397H-8774A-T
    Certification : ISO9001 / ISO14000
    Price : Negotiable based on order lot quantity
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 3000K pcs per month
    Delivery Time : 1-5 weeks
    • Product Details
    • Company Profile

    480x800 4 Inch TFT LCD Module Display IPS With RGB Interface RTP Touch

    4" inch TFT LCD module 480x800 IPS full viewing angle with RGB interface and RTP Touch

    Saef Tech SF-TC397H-8774A-T is a diagonal size 3.97”inch(4.0” inch) IPS type TFT LCD Display with resolution 480x800 pixels.

    Product Quick Details:
    1. LCD Size: 3.97” inch(4.0” inch)
    2. Resolution: 480x800
    3. Viewing Angle: Free Viewing Angle
    4. Outline Dimension: 57.14*96.85*3 mm
    5. LCD Driver IC: ILI9806E
    6. LCD Interface Type: RGB
    7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
    8. Touch Panel: Resistive Touch Screen

    Product Features:
    1. SF-TC397H-8774A-T is TFT LCD module is a 3.97”inch(4.0” inch) diagonal size, 480x800, full color TFT LCD display with Resistive Touch Screen (RTP).
    2. This module supports RGB Interface. SF-TC397H-8774A-T model is having module dimension of 57.14*96.85 mm and Active area size of 51.84 x 86.40 mm;
    3. SF-TC397H-8774A-T is integrated with ILI9806E controller on module, and its logic supply voltage ranges from 2.6V to 3.3V.
    4. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
    5. SF-TC397H-8774A-T is portrait mode LCD module, with 400 cd/m2 luminance. If you would like to use it as portrait mode or adjust the luminance, please contact with us for more technical support.
    6. SF-TC397H-8774A-T FPC can be customized, and optional to be with or without Resistive Touch Screen (RTP).

    Product Advantages
    1. IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.
    2. Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
    3. Wide Temperature of Top of -20℃ to +70℃ for industrial applications.
    4. Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
    5. Low-cost solution among the same kinds in the LCD industry.
    6. Easy to install and easy to maintain.
    Customer Service
    1.Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
    2. Your inquiry related to our products or price will be replied in 24hrs.
    3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
    4. One-year warranty for our LCD display after delivery. All the defects can be returned and replaced within warranty period.
    5. Buyer can dispatch technician to our factory for free training before delivery.
    6. We’re focusing on creating values for customers. For essential technical or commercial support, we will arrange con-call meeting, online technical service, or at-site local help, etc to meet customer different needs.


    FAQ
    1. How can i place an order?
    Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. Then you can place us the order.
    For designing or further discussion, it is better to contact us by email / phone for more clear and accurate LCD solution proposal for you. .
    2. What kind of display we provide?
    We have TFT color LCD display module, monochrome lcd module, OLED lcd module, lcd module with digital frame, Android Tablet, etc. We support both indoor and outdoor applications, industrial and commercial applications.
    We also support standard solutions and customized design solutions.
    We have off-shelf and design-in products to provide customer with one-stop solutions.
    3. How about the warranty ?
    We have 1 year warranty. All the defects can be returned and replaced.
    4. What is your terms of delivery?
    We accept EXW, FOB, FCA, etc. You can choose the one which is the most convenient or cost effective for you.

    Product:4"inch TFT LCD Touch ScreenTouch Screen:Resistive Touch Panel (RTP)
    Resolution:480x800Viewing Direction:IPS Full Viewing Angle
    Driver IC:ILI9806EPin Number:51 Pins
    Connection:PluggingSurface Luminance:300 Cd/m2 (nits)
    Interface:RGBLED Lifetime:40,000 Hours

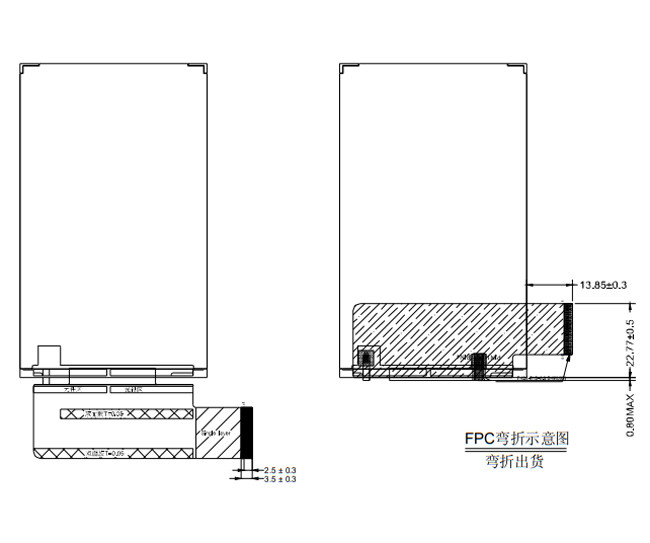

    3.97 inch(4 inch)TFT touch lcd screen Drawing

    480x800 4 Inch TFT LCD Module Display IPS With RGB Interface RTP Touch

    480x800 4 Inch TFT LCD Module Display IPS With RGB Interface RTP Touch

    Pin Definition

    NO.PIN NAMEI/ODescription
    1LEDKOLED Cathode
    2LEDAOLED Anode
    3YUITouch Panel input signal
    4XLITouch Panel input signal
    5YDITouch Panel input signal
    6XRITouch Panel input signal
    7GNDIGround
    8VCIIPower Supply 2.8V Voltage
    9NC-Set Open
    10IOVCCIPower Supply 1.8V Voltage
    11TEITearing effect output
    12SDO-SPI Interface Input/output Pin
    13SDIISPI Interface Input/output Pin
    14WR/SCL-SPI Clock Signal
    15CSXIInput pin for chip selection signal
    16RESXILCM Reset input signal
    17-40DB23-DB0I/ODisplay Data I/O
    41ENABLEIData enable signal in RGB I/F mode 1.
    42DOTCLKIClock Signal to Sample each date
    43HSYNCIHorizontal Synchronizing Signal
    44VSYNCIVertical Synchronizing Signal
    45LEDPWMIThis pin is connect to the external LED driver.
    46LWDONIUsed for turning On/Off external LED backlight control.
    47RSIRegister select signal
    48RDIRead strobe signal input pin
    49IM0ISelect the interface mode
    50IM1ISelect the interface mode
    51GNDIGround

    3.97 inch(4 inch)TFT touch lcd screen REAL PRODUCT DEMOSTRATION
