TFT Lcd Display 5.6 Inch RGB Interface 40 Pin Color Display With Resistive Touch Panel

5.6 inch TFT RGB Touch Display Module Description

SAEF SF-TC560I-9270A-T is a 5.6 inch full TFT-LCD display with 640x480 resolution (640 horizontal by 480 vertical pixels array). This model supports RGB interface; the supply voltage (VCC) of driving LCD panel is from is 3.0V to 3.6V. SAEF SF-TC560I-9270A-T can be used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.

SAEF SF-TC560I-9270A-T is a TN-LCD type TFT which gray scale inversion direction is 6 o'clock. with brightness 280 cd/m2 (typical value). It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. SF-TC560I-9270A-T is fully compatible with Innolux model AT056TN53V.1

FAQ:

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.

Q2. What about the lead time?

A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.

Q3. Do you have any MOQ limit for sample and production order?

A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.

Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for LCD module?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the LCD product?

A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

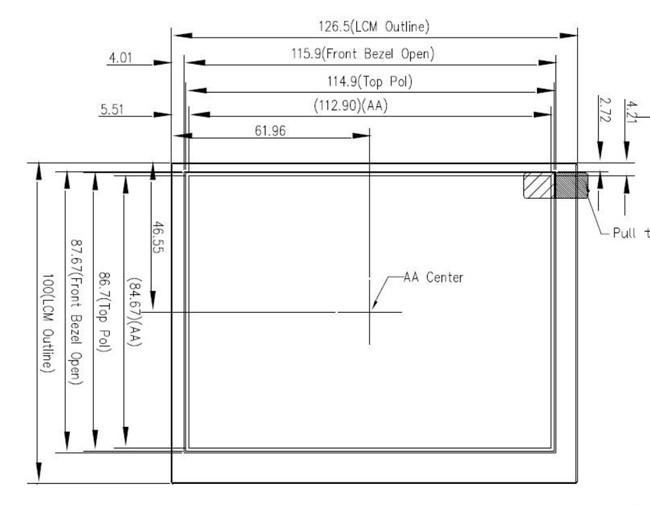

5.6 inch TFT RGB Touch Display Module Drawing

5.6 inch TFT RGB Touch Display Module Real Product Image
