    7 Inch TFT LCD 800x480 Dots Display RGB 24 Bit Interface With Resistive Touch Panel


    7” TFT RGB LCD, 800x480 LCD display 7" Description



    SF-TO700PY-8994A-T TFT LCD module is a 7”inch diagonal size, 800x480 full color TFT LCD display with RTP (Resistive touch screen). This module supports 24 bit RGB Interface. SF-TO700PY-8994A-T model is having module dimension of 164.9x100x6.8 mm and Active area size of 153.84x85.63mm. it's integrated with EK9716BD4 + EK73002AB2 controller on module, and its logic supply voltage ranges from 2.6V to 3.3V. typical value is 2.8V.


    The LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. SF-TO700PY-8994A-T is with 300 cd/m2 luminance. If you would like to adjust the luminance, please contact with us for more technical support, we can increase the surface brightness to 1000 nits.


    Product:7 Inch TFT Touch LCDResolution:800x480 Pixels
    Interface:RGB 24 BitsOutline Dimension:164.9x100x6.8 mm
    Touch Screen:With Resistive Touch ScreenCover Glass Dimension:Customizable
    Viewing Direction:6 O'clockPin Number:50 Pins
    Connection:PluggingSurface Luminance:300 Cd/m2(nits)
    LED Lifetime:40,000 HoursCompliance:REACH & RoHS Compliant

    Pin Definition


    Pin1-2, LEDA LED back light(Anode)

    Pin3-4, LEDK LED back light(Cathode)

    Pin5, GND Ground

    Pin6, VCOM Common Voltage(NC)

    Pin7, DVDD Digital power supply

    Pin8, MODE DE/SYNC mode select. Normally pull high. (H: DE mode. L: HS/VS mode)

    Pin9, DEN Data enable signal

    Pin10, VSYNC Vertical synchronization signal

    Pin11, HSYNC Horizontal synchronization signal

    Pin12~Pin19, B7-B0 Blue Data bus

    Pin20~Pin27, G7-G0 Green Data bus

    Pin28~Pin35, R7-R0 Red Data bus

    Pin36, GND Ground

    Pin37, DOTCLK Dot clock signal

    Pin38, GND Ground

    Pin39, SHLR Left/Right Display Control pin. Normal pull high

    Pin40, UPDN Up/Down Display Control pin. Normal pull low

    Pin41, VGH Positive Power for TFT

    Pin42, VGL Negative Power for TFT

    Pin43, AVDD Analog supply voltage

    Pin44, NRESET Reset signal

    Pin45, NC No Connection

    Pin46, VCOM Common Voltage(NC)

    Pin47, DITHER Dithering function control pin. Normal pull low. H: Enable dithering function, 6bit resolution. L: Disable dithering function, 8bit resolution

    Pin48, GND Ground

    Pin49~Pin50, NC No Connection

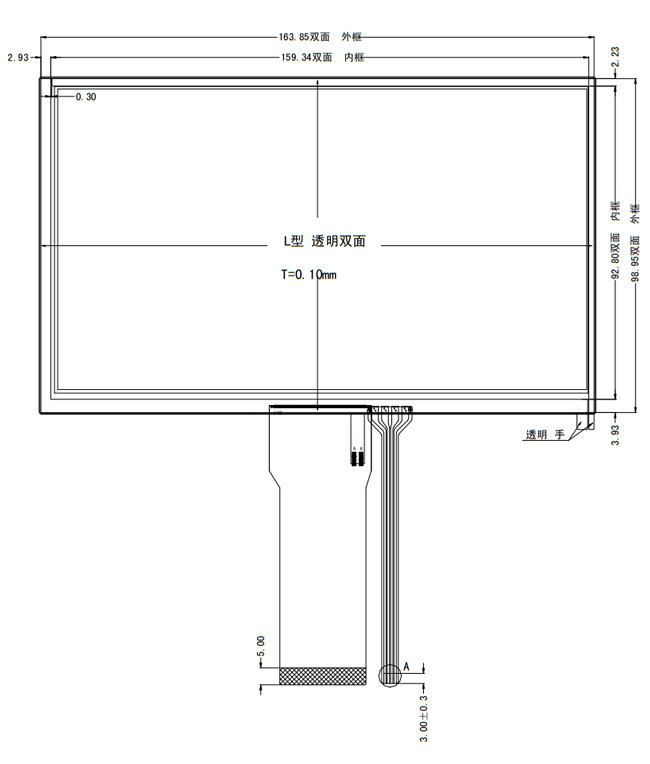

    7” TFT RGB LCD, 800x480 LCD display 7" Drawing


    7 Inch TFT LCD 800x480 Dots Display RGB 24 Bit Interface With Resistive Touch Panel

    7 Inch TFT LCD 800x480 Dots Display RGB 24 Bit Interface With Resistive Touch Panel

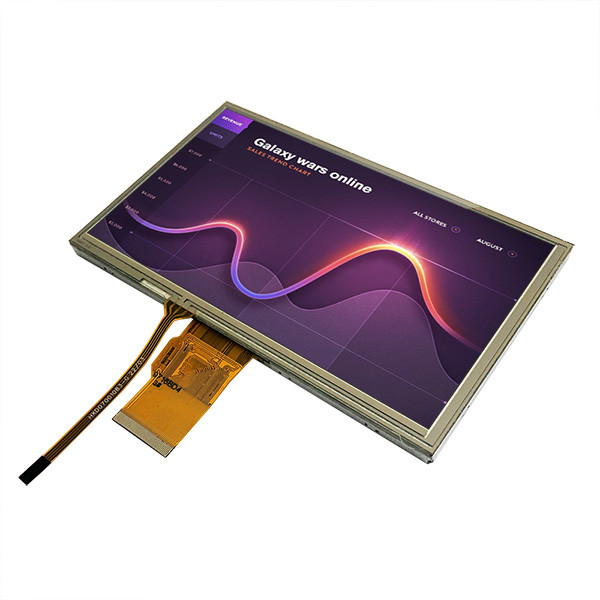

    7” TFT RGB LCD, 800x480 LCD display 7" Real Product Image
