1.77" LCD Touch Screen Display 128x160 TN Panel For Smart Devices
Product Introduction
SAEF TECHNOLOGY SF-TC177L-9273A-T LCD touch screen is a 1.77 inch
full TFT-LCD display with 128x160 resolution (128 horizontal by 160
vertical pixels array). This TFT LCD model supports SPI interface;
the supply voltage (VCC) of driving LCD panel is from is 2.6V to
3.3V, typical value is 2.8V. It can be used in embedded systems,
automation, GPS, medical equipment, industrial device, security
equipment which requires TFT display in high quality and colorful
image. SF-TC177L-9273A-T Resistive touchscreen TFT is with
brightness 200 cd/m2 (typical value). It can be operating at
temperatures from -20℃ to +70℃; its storage temperatures range from
-30℃ to +80℃.
Features
This 1.77 inch TFT LCD is a TN type, the viewing dircection is 12
O'clock.
This 1.77 inch TFT display is designed to SPI interface, and it can
be customized to be MCU and RGB interface as well.
This 1.77 inch resistive touch screen TFT is a QQVGA resolution,
128x160 dots, portrait/vertical type display.
This 1.77 inch TFT screen is controlled by ILI9163C, compitable
with ST7735.
This 1.77 inch LCD touch screen can be operating at -20℃ To +70℃
| Product: | 1.77" Inch Resistive LCD Touch Screen |
| Resolution: | 128x160 Pixels |
| Interface: | SPI (can Be Customized) |
| Driver IC: | ILI9163C |
| Cover Glass Dimension: | Customizable |
| Pin Number: | 18 Pins ( Customizable ) |
| Outline Dim.: | 34x42.9x3.55 Mm |
| LED Lifetime: | 40,000 Hours |
| Touch Screen: | With Resistive Touch ( PCAP Optional) |
| Viewing Direction: | 12 O'clock |
| Connection: | Soldering Type (Customizable) |
| Surface Luminance: | 200 Cd/m2(nits) |
| Operating Temp.: | -20℃ To +70℃ |
| Compliance: | REACH & RoHS Compliant |
1.77" LCD Touch Screen Display 128x160 TN Panel For Smart Devices

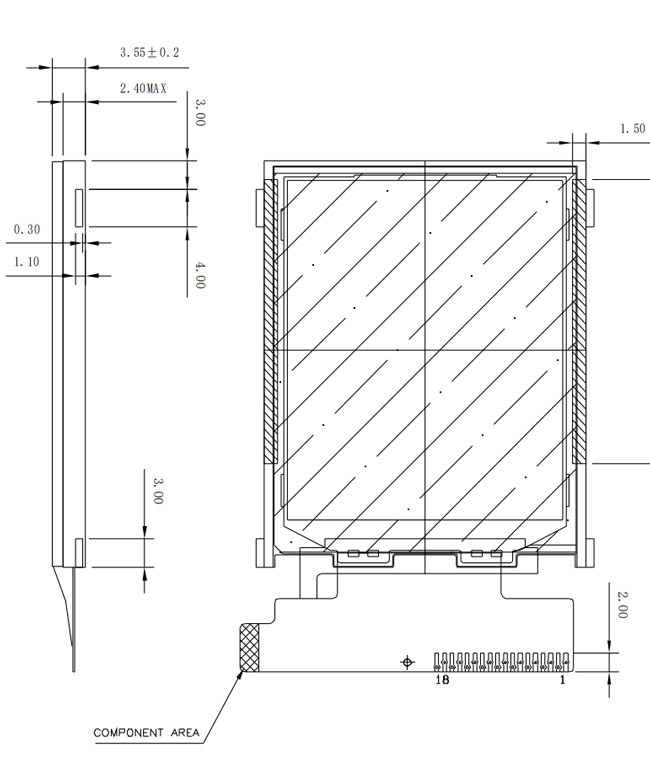

Product Drawing
PIN Description
| NO. | PIN NAME | I/O | Description |
| 1 | GND | I | Ground |
| 2 | LED- | O | LED Cathode |
| 3 | LED+ | O | LED Anode |
| 4 | GND | I | Ground |
| 5 | RESET | I | LCM Reset input signal |
| 6 | A0 | I | Register select signal |
| 7 | SDA | I | Display Data input signal |
| 8 | SCK | I | Display Clock input signal |
| 9 | VDDA | I | Power Supply 2.8V Voltage |
| 10 | VDDIO | I | Power Supply 2.8V/1.8V Voltage |
| 11 | CS | I | Input pin for chip selection signal |
| 12 | GND | I | Ground |
| 13 | YD | I | Touch Panel input signal |
| 14 | XL | I | Touch Panel input signal |
| 15 | YU | I | Touch Panel input signal |
| 16 | XR | I | Touch Panel input signal |
| 17 | GND | I | Ground |
| 18 | GND | I | Ground |
Maximum Absolute Limit
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | 1.6~3.3 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20 to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
DC Characteristics (VDD=2.8V,Ta=25°C)
| Item | Symbol | Min | Type | Max | Unit | Test condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | - |
| Supply current | IDD | - | - | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | - | VDD | V | - |
| VIL | 0 | - | 0.2VDD | V |
| Input leakage current | IIL | -1.0 | - | 1.0 | mA | VIN=VDD or VSS |
Backlight Electrical-optical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition | Note |
| Supply Voltage | Vf | 3.0 | 3.2 | 3.4 | V | If=30 mA | - |
| Supply Current | If | - | 30 | - | mA | - | - |
| Reverse Voltage | Vr | - | - | 5 | V | - | |
| Power dissipation | Pd | - | 288 | - | mW | - | |
| Luminous Intensity for LCM |
- | - | 200 | - | Cd/m2 | If=30mA | - |
| Uniformity for LCM | - | 80 | - | - | ％ | If=30 mA | - |
| Backlight Color | White |
1.77" LCD Touch Screen Display 128x160 TN Panel For Smart Devices

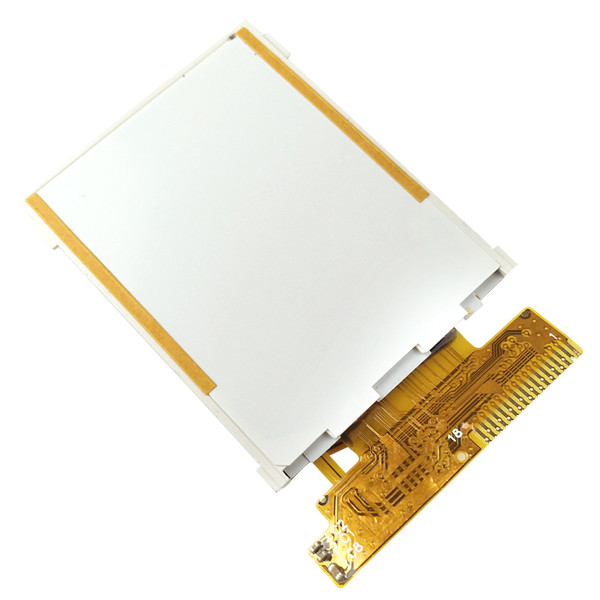

Product Image
Factory Facilities and Certificates
TFT LCD Display Module Manufacturer - more than 300 TFT standard
items on line
SAEF Technology is a global leading Manufacturer of TFT LCD display
based China. SAEF offers a wide product range of small to medium
sizes TFT display modules in sizes ranging such as 0.96", 1.22"
round, 1.28" round,1.44", 1.54", 1.77, 2", 2.1" round, 2.2" 2.3",
2.4", 2.6", 2.8", 3", 3.1", 3.2", 3.4" 3.5", 3.6", 3.7", 4", 4.3",
4.6", 5", 5.5", 5.6", 5.7", 6.5", 7", 8", 9", 10.1", 10.2", 10.4",
11.6", 12.1" , 12.3", 13.3", 14", 15", 15.6", 17", 17.3" 18.4",
18.5", 19", 21.3", 21.5", 23.8", 24", 25", 27" and 28" TFT
(diagonal size of the active area) and so on. There are more than
300 TFT standard models listed on this website; furthermore, almost
each item is acceptable to derivate from the standard items to meet
the customers' requirement.
SAEF TFT displays are qualified under industrial standard including
standard TFT-LCD modules, IPS TFT, High brightness TFT LCD
(sunlight readable display), TFT panels with controller boards, Bar
Type TFT, Wide Temperature TFT LCD. These displays include
landscape or portrait modes. SAEF TFT LCD displays are available in
various resolutions as well as touch screen optional in resistive
and projected capacitive (PCAP touch screen) technology. Many of
our TFT display modules have more than one interface available
including MCU, RGB, TTL, LVDS and MIPI DSI. SAEF TFT modules are
perfect for a number of applications including industrial control,
coffee machine, medical equipment, POS system, automation, GPS
navigator, white goods, energy control, telecoms, medical equipment
and etc.
