2.4 Inch QVGA 240x320 Dots TFT LCD Display MCU Interface With PCAP Projected Capacitive Touch

2.4 inch TFT LCD with PCAP Touch Screen Description

SFTC240G-8050A-CT is a 2.4 inch 8 bits MPU interface QVGA TN type TFT-LCD module with projected capacitive touch panel (PCAP). it is a vertical/portrait active matrix TFT module with transmissive mode. Its resolution is 240x320 pixels. This 2.4 inch TFT display module has controller IC ILI9341V supporting MPU interface with the PCAP is I2C interface. The brightness is 300 cd/m2 with contrast ratio 500:1. Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃. This design is a good fit for industrial application, testing equipment, automation, medical equipment, security equipment etc. The supply voltage (VCC) of driving LCD panel is from is 2.8V to 3.4V. Typical value is 3.2V.

SFTC240G-8050A-CT s an TN type TFT with brightness 300 cd/m2 (typical value). the brightness can be customized achieving 1000 nits. pls contact our sales for more details.

Why Choose us

1. We provide LCD Display custom solution

Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.

2. Total solutions for Touch screen and display

Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.

3. Commitment to quality reliability

SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.

4. Long-term supply

Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.

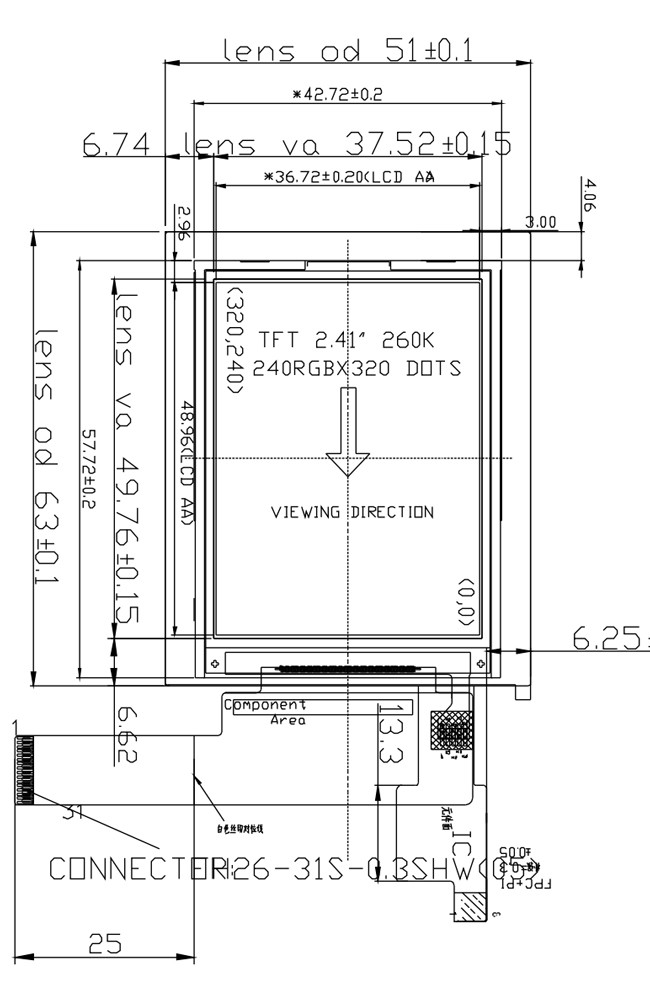

2.4 inch TFT LCD with PCAP Touch Screen​ Drawing

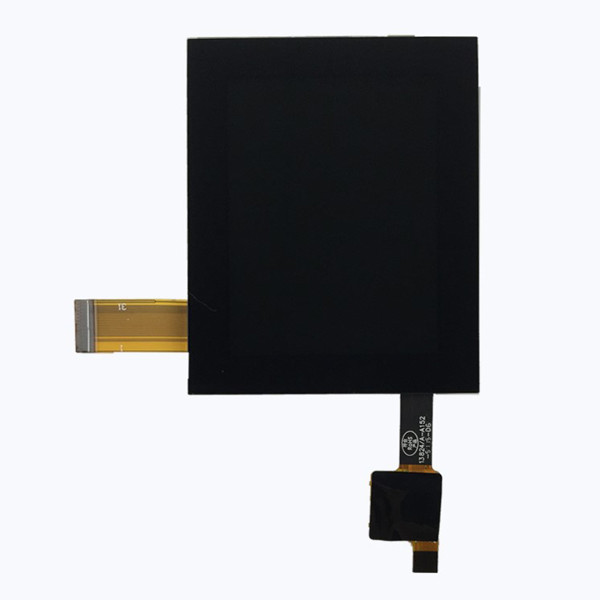

2.4 inch TFT LCD with PCAP Touch Screen​ Real Product Image
