5" Inch TFT LCD Portrait HD 720x1280 Dots ILI9881C MIPI Interface
IPS Free Viewing Angles with custom CTP
5" Inch TFT LCD with CTP, HD 720x1280 TFT PCAP Display Description
Saef Technology SF-TC500I-8725B-CT is a diagonal size 5” inch TFT
LCD module with resolution 720x1280 pixels. This module is built in
with ILI9881C IC; it includes the controller and driver IC
functions, supports MIPI interface, and supply voltage (Vdd) range
from 2.6V to 3.3V. typical value 2.8V. This module viewing
direction is IPS type free viewing angle(85/85/85/85).
SF-TC500I-8725B-CT TFT LCD module is portrait mode with brightness
300 nits. The module also is available for newly design a Resistive
Touch Screen and Projected Capacitive Touch Screen. It can be
operating at temperatures from -20℃ to +70℃; its storage
temperatures range from -30℃ to +80℃. This 5” inch TFT LCD module
is widely used in industrial devices, scanner, home automation,
access control system, monitoring equipment, analyzers, security
system, garden irrigation system, etc.
Product Advantages
- Excellent display performance of background color, luminance,
viewing angle, and intensity, etc.
- Wide Temperature of Top of -20℃ to +70℃ for industrial
applications.
- Stable Supply for continuous mass production of over 5 years. No
EOL worry.
- Flexible to have with or without resistive touch screen. We can
support to design customized CTP(capacitive touch panel) for
customers as well.
- FPC is customizable to have different interface, pin number and pin
assignment, etc.
- Low-cost solution among the same kinds in the LCD industry.
- Easy to install and easy to maintain.
| Product: | 5" IPS TFT LCD | Resolution: | 720x1280 Dots |
|---|
| Interface: | MIPI (Customizable) | Touch Screen: | PCAP Optional |
|---|
| Viewing Direction: | IPS All Viewing Angle(85/85/85/85) | PCAP Structure: | GFF |
|---|
| LCD Controller: | ILI9881C | CTP Controller: | GT911 |
|---|
| Cover Glass Dimension: | Customizable | Pin Number: | 25 Pins |
|---|
| Connection: | FPC Plugging (customizable) | Surface Luminance: | 300 Cd/m2(nits) |
|---|
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
|---|
Pin Definition
Pin1, LEDA LED Anode
Pin2, LEDK LED Cathode
Pin3, VCC Power Supply 2.8V
Pin4, IOVCC Power Supply 1.8V/2.8V Voltage
Pin5, GND Power Ground
Pin6, CLKP DSI-CLK+ clock signals
Pin7, CLKN DSI-CLK- clock signals
Pin8, GND Power Ground
Pin9, D0N DSI-D0- data signals
Pin10, D0P DSI-D0+ data signals
Pin11, GND Power Ground
Pin12, D1N DSI-D1- data signals
Pin13, D1P DSI-D1+ data signals
Pin14, GND Power Ground
Pin15, D2N NC DSI-D2- data signals
Pin16, D2P NC DSI-D2+ data signals
Pin17, GND Power Ground
Pin18, D3N NC DSI-D2- data signals
Pin19, D3P NC DSI-D2+ data signals
Pin20, GND Power Ground
Pin21, TE Power Supply 2.8V
Pin22, LCD_ID LCD_ID
Pin23, RESET Register select pin
Pin24, GND Power Ground
Pin25, GND Power Ground
5" Inch TFT LCD with CTP, HD 720x1280 TFT PCAP Display Drawing

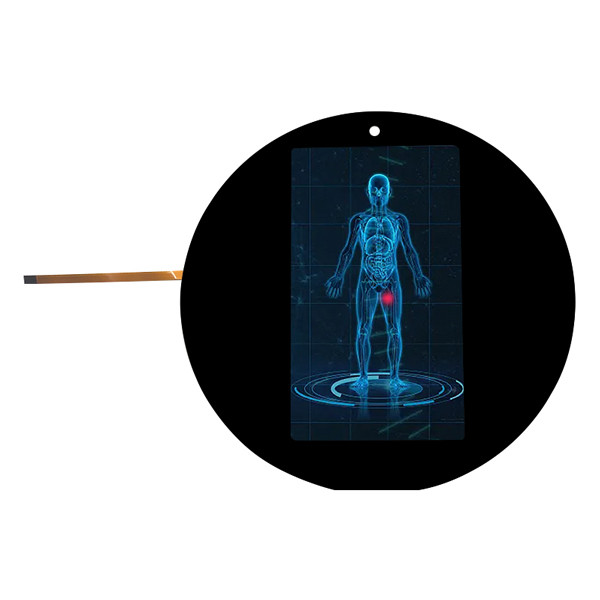

5" Inch TFT LCD with CTP, HD 720x1280 TFT PCAP Display Real Product
