5 Inch Raspberry Pi PCAP HDMI TFT Dispaly 800x480 Pixels IPS Screen​ Product Introduction

SFHD500HX10-800480A-CT is a new integrated (LCD screen, touch screen, driver board) new integrated LCD display control module. It perfectly presents the HDMI digital signal output from the PC on the 800*480 LCD display.
1. This Raspberry PI 5 inch HDMI display supports HDMI 1.3, HDMI 1.4, HDCP 1.4, HDCP 2.2 standards.
2. The HDMI sources for this 5 inch PCAP TFT are compatible with mainstream mini PCs such as Raspberry Pi, BB Black, and Banana Pi.
3. This 5 inch capacitive TFT display has a CTP from USB interface to I2C one, no driver installation is required.
4. This Raspberry PI 5 inch touch TFT LCD is design for the use on the Raspberry Pi Raspberry Pi display, and it can also be used for other HDMI industrial control small screen touch devices.
5. When used as a Raspberry Pi display, this 5 inch TFT LCD display supports Raspbian, Ubuntu, WIN10 IOT and other systems, single-touch, and when used as a computer monitor, it supports Windows 7/8/10, five-point touch, drive-free.

Features

5 Inch Raspberry Pi PCAP HDMI TFT Dispaly 800x480 Pixels IPS Screen​ Product Drawing

HDMI Pin Definition:

USB 5V Pin Definition:

USB TP Pin Definition:

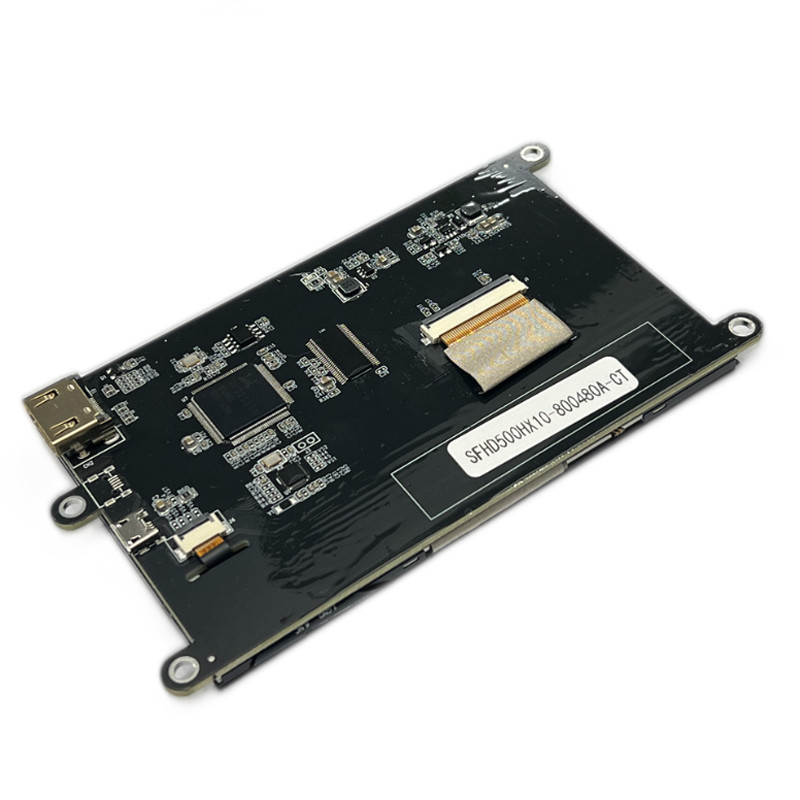

5 Inch Raspberry Pi PCAP HDMI TFT Dispaly 800x480 Pixels IPS Screen​ Product Image

Factory Facilities and Certificates

TFT LCD Display Module Manufacturer - more than 300 TFT standard items on line

SAEF Technology is a global leading Manufacturer of TFT LCD display based China. SAEF offers a wide product range of small to medium sizes TFT display modules in sizes ranging such as 0.96", 1.22" round, 1.28" round,1.44", 1.54", 1.77, 2", 2.1" round, 2.2" 2.3", 2.4", 2.6", 2.8", 3", 3.1", 3.2", 3.4"round, 3.5", 3.6"round, 3.7", 4"round, 4.3", 4.6", 5", 5.5", 5.6", 5.7", 6.5", 7", 8", 9", 10.1", 10.2", 10.4", 11.6", 12.1" , 12.3", 13.3", 14", 15", 15.6", 17", 17.3" 18.4", 18.5", 19", 21.3", 21.5", 23.8", 24", 25", 27" and 28" TFT (diagonal size of the active area) and so on. There are more than 300 TFT standard models listed on this website; furthermore, almost each item is acceptable to derivate from the standard items to meet the customers' requirement.

SAEF TFT displays are qualified under industrial standard including standard TFT-LCD modules, IPS TFT, High brightness TFT LCD (sunlight readable display), TFT panels with controller boards, Bar Type TFT, Wide Temperature TFT LCD. These displays include landscape or portrait modes. SAEF TFT LCD displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology. Many of our TFT display modules have more than one interface available including MCU, RGB, TTL, LVDS and MIPI DSI. SAEF TFT modules are perfect for a number of applications including industrial control, coffee machine, medical equipment, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.
