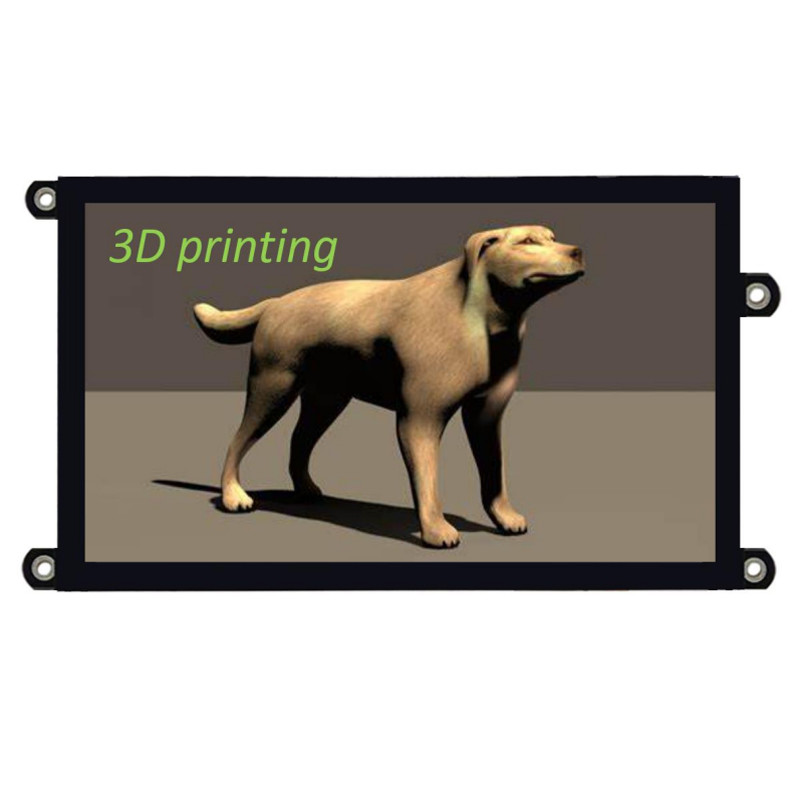

5 Inch Mini TFT HDMI LCD Display (For Raspberry Use), 5 Inch Small
HDMI Signal TFT Display Product Introduction
SFHD500HX10-800480A-CT is a new integrated (LCD screen, touch
screen, driver board) new integrated LCD display control module. It
perfectly presents the HDMI digital signal output from the PC on
the 800*480 LCD display.
1. This Raspberry PI 5 inch HDMI display supports HDMI 1.3, HDMI
1.4, HDCP 1.4, HDCP 2.2 standards.
2. The HDMI sources for this 5 inch PCAP TFT are compatible with
mainstream mini PCs such as Raspberry Pi, BB Black, and Banana Pi.
3. This 5 inch capacitive TFT display has a CTP from USB interface
to I2C one, no driver installation is required.
4. This Raspberry PI 5 inch touch TFT LCD is design for the use on
the Raspberry Pi Raspberry Pi display, and it can also be used for
other HDMI industrial control small screen touch devices.
5. When used as a Raspberry Pi display, this 5 inch TFT LCD display
supports Raspbian, Ubuntu, WIN10 IOT and other systems,
single-touch, and when used as a computer monitor, it supports
Windows 7/8/10, five-point touch, drive-free.
SAEF Technology Mini / Small HDMI Signal TFT LCD Display Panel:
Saef released for HDMI signal Displays are designed to work with
the Raspberry Pi or embedded system, single board computers (or
desktop/laptops) which support HDMI signal output. This series
display modules come with a control board with a HDMI signal
interface output; it is designed to make Raspberry Pi usage become
easily. These displays are featured below advantages:
> Designed to make Raspberry Pi usage becomes easily (Support
Rasberry Pi use)
> Support HDMI signal output
> Good touch response
> Fast response time
> Support Raspberry Pi GPIO
> Support mini-PCs, it can work as a computer monitor
> Support RTP with USB interface
> Support PCAP option
> Without Touch panel option is available
Product Features:
| Keywords: | 5 Inch HDMI TFT LCD Display |
| Resolution: | 800*480 |
| CTP Interface: | IIC To USB |
| Menu (reserved): | Brightness, Contrast, Auto-correction, Phase, Clock, Line Field
Position, Function Settings, Reset, Etc |
| Support: | HDMI, Raspberry Pi, Raspbian, Ubuntu, WIN10 IOT |
| Surface Luminance: | 300 Cd/m2 - 1000 Cd/m2 |
| Viewing Direction: | IPS All Viewing Angles (85/85/85/85) |
| Touch Screen: | CTP( Capacitive Touch Screen) |
| LED Lifetime: | 40,000 Hours |
| Storage Temp.: | –30℃ To +80℃ |
| Operating Temp.: | –30℃ To +80℃ |
| Audio Output: | 8Ω1.5W (20*30 BOX Speaker * 2) |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant & Halogen Free |
5 Inch Mini TFT HDMI LCD Display (For Raspberry Use), 5 Inch Small
HDMI Signal TFT Display Product Drawing
HDMI Pin Definition:
| 1 | T.M.D.S DATA2+ |
| 2 | T.M.D.S DATA2 shielded屏蔽 |
| 3 | T.M.D.S DATA2- |
| 4 | T.M.D.S DATA1+ |
| 5 | T.M.D.S DATA1 shielded屏蔽 |
| 6 | T.M.D.S DATA1- |
| 7 | T.M.D.S DATA0+ |
| 8 | T.M.D.S DATA0 shielded屏蔽 |
| 9 | T.M.D.S DATA0- |
| 10 | T.M.D.S DATA CLOCK+ |
| 11 | T.M.D.S DATA CLOCK shielded屏蔽 |
| 12 | T.M.D.S DATA CLOCK- |
| 13 | CEC (Consumer Electronics Control, Optional electronic consumer controller可选择的电子消费控制器) |
| 14 | Reserved (in cable but N.C. on device) |
| 15 | SCL(DDC Clock) |
| 16 | SDA(DDC data) |
| 17 | DDC/CEC Ground |
| 18 | +5V power |
| 19 | Hot-swappable probe wires热插拔探测线 |
USB 5V Pin Definition:
USB TP Pin Definition:
5 Inch Mini TFT HDMI LCD Display (For Raspberry Use), 5 Inch Small
HDMI Signal TFT Display Product Image
Projected Capacitive (PCAP) Touch Screen
Projected Capacitive (PCAP) touch technology offers a fast and
sensitive response and professional-grade reliability combined. The
SAEF
technology projected capacitive touch screen is designed for strict
industrial, medical, and automotive applications. We can also
combine PCAP touch screens with liquid crystal displays (LCDs),
which is an integrated embedded solution that helps simplify the
supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
Contact Us
We love to hear about your projects, If you have any questions, we
can be reached at sales2@saef.com.cn
