1.77'' TFT LCD Display SPI Interface W/Anti-Glare Surface, 128x160, Touch Screen Optional Product Description

SFTO177DG-7062A-N is a 1.77 inch portrait mode TFT LCD module with 128x160 dot resolution. It supports mpu 8 bit interface, widely use in handheld devices, medical devices, and some other small size consumer electronics. SFTO177DG-7062A-N​ FT LCD module is built-in with ST7735 IC ( compitable with ILI9163V IC). supply voltage for analog (Vcc) range from 2.6V to 3.3V, typical value 2.8V. This module is having anti-glare surface panel, view direction 12 o'clock, gray scale inversion 6 o'clock.

SF-TS177H-8784A-N module is a Portrait mode TFT-LCD and it's available as well for resistive touch screen option whose part no. SFTO177DG-7062A-T. The working temperatures is from -20°C to +70°C; its storage temperatures range from -30°C to +80°C.

1.77'' TFT LCD Display SPI Interface W/Anti-Glare Surface, 128x160, Touch Screen Optional Product Drawing

Pin Description

1 NC NC

2 GND System ground

3 BL_K Backlight LED Cathode.

4 BL_A Backlight LED Athode.

5 GND System ground

6 RESET Reset Signal pin (“Low” is enable)

7 RS Data or command select pin. “H”: Date, “L”:Command.

8 SDA Serial data input/output PIN

9 SCK Serial interface Clock input

10 IOVCC Power supply(1.8)

11 VCC Power supply(2.8)

12 CS Chip Selected (“Low” is enable)

13 GND System ground

14 NC NC

Quality Management
1. Quality policy
Provide sound quality and deliver goods on time;
To satisfy requirements of customers with continuous improvement
2. EHS policy
To observe laws and regulations and to prevent and control pollution;
To try to reduce emission and conserve and make full use of resources;
To improve environmental protection awareness and continuously improve the environment;
3. Measures adopted
It will make transparent its quality policy and improve employees’ awareness on quality via training and education;
By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;
It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;
Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency.

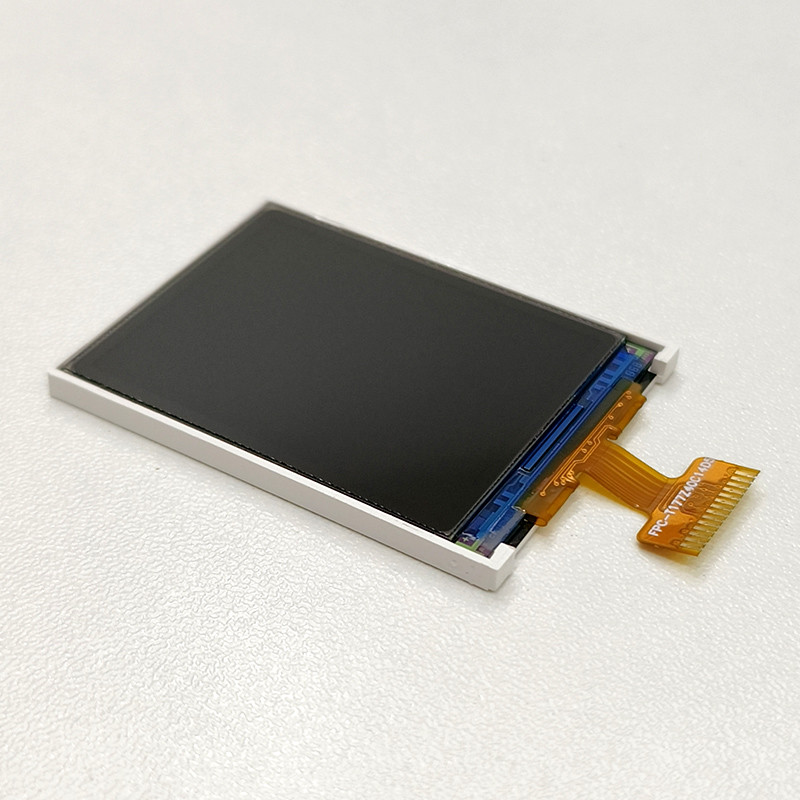

1.77'' TFT LCD Display SPI Interface W/Anti-Glare Surface, 128x160, Touch Screen Optional Product Image

Factory Facilities and Certification

for 1.77'' TFT LCD Display SPI Interface W/Anti-Glare Surface, 128x160, Touch Screen Optional more information, pls send enquiry to sales2@saef.com.cn or ck@saef.com.cn

Search keyword: tft 1.77", 1.8 tft lcd, 1.8" tft lcd, 1.8 inch tft lcd, tft lcd 1.77, 1.77 tft display, 1.77" tft display, 1.77 inch tft display, tft display 1.8 inch, tft display 1.8", 1.8 inch tft lcd display

Founded in 2007, ShenZhen SAEF Technology Co., Ltd is committed to manufacturing and developing high-quality products for industrial LCD display, including TFT LCD, OLED, monochrome TN/STN/FSTN LCM display modules and system integration solutions. Saef Technology has become a leading enterprise in the field of small and medium size displays, and its continuous innovation has enable it to obtain a number of invention patents in the display field. With more than 14 years of experience, providing competitive products and services through stable product quality and professional pre-sales and after-sales service, SAEF technology has won the recognition of many international big brand companies and established long-term and stable cooperation with them.

Saef Technology is an ISO9001 and environmental ISO 14001 certified manufacturer. We provide 1 to 10 years warranty for all the company’s products. We are not only a display manufacturer but also a solution partner for our customers.

As a leading manufacturer in the display module market, Saef Technology will continue to focus on the research and development of new technologies such as TFT, OLED display, embedded systems integration solutions, and we will continue to provide customers display products with high cost performance.
