    Sunlight Readable 2.4 Inch IPS TFT LCD Display ILI9341V Driver SPI Interface

    Ask Lasest Price
    Brand Name : SAEF
    Model Number : SFTC240B-7105A-CT
    Certification : ISO9001 / ISO14000
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 3000K pcs per month
    Delivery Time : 1-5 weeks
    • Product Details
    • Company Profile

    Sunlight Readable 2.4 Inch IPS TFT LCD Display ILI9341V Driver SPI Interface

    Sunlight Readable 2.4 Inch IPS TFT LCD Display ILI9341V Driver SPI Interface Product Introduction

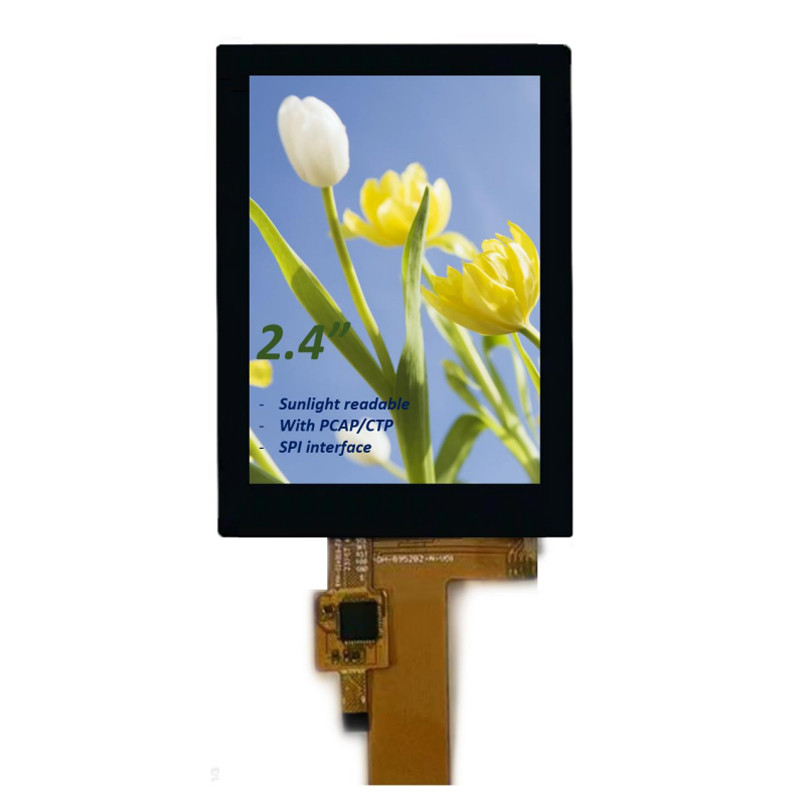

    SFTC240B-7105A-CT TFT LCD display is a 2.4 inch portrait mode with capacitive touch screen (CTP) TFT LCD module, Displaying QVGA resolution 240x320 pixels, this TFT LCD module is built-in with ILI9341V IC ( compitable with ST7789V IC). it supports SPI interface. supply voltage for analog (Vcc) range from 2.4V to 3.6V, typical value 3.3V. This module is having anti-glare surface panel and all viewing angles visible.


    SFTC240B-7105A-CT TFT display product uses a high-brightness backlight, with a high-brightness polarizer, the surface brightness can reach 1000 NITS, and the CTP surface is anti-glare, so that this product can be read in sunlight. This LCD module can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image.


    Features:

    Product:2.4 Inch TFT LCD Display
    Resolution:240*320
    Viewing Direction:IPS All Viewing Angles
    Pin Number:15 Pins
    Surface Luminance:1000 Cd/m2
    LED Lifetime:40,000 Hours
    Touch Screen:Capacitive Touch Panel
    Cover Glass Dimension:Customizable
    Interface:SPI
    Connection:Plug In
    Driver IC:ILI9341V
    Compliance:REACH & RoHS Compliant

    Sunlight Readable 2.4 Inch IPS TFT LCD Display ILI9341V Driver SPI Interface​ Product Drawing

    Sunlight Readable 2.4 Inch IPS TFT LCD Display ILI9341V Driver SPI InterfaceSunlight Readable 2.4 Inch IPS TFT LCD Display ILI9341V Driver SPI Interface


    Pin Definition:

    1 GND

    2 RS

    3 CS

    4 SCL

    5 DATA

    6 RESET

    7 VDD

    8 VSS

    9 BL-A

    10 BL-K

    11 TP-VCC-

    12 TP-RST

    13 TP-INT

    14 TP-SCL

    15 TP-SDA

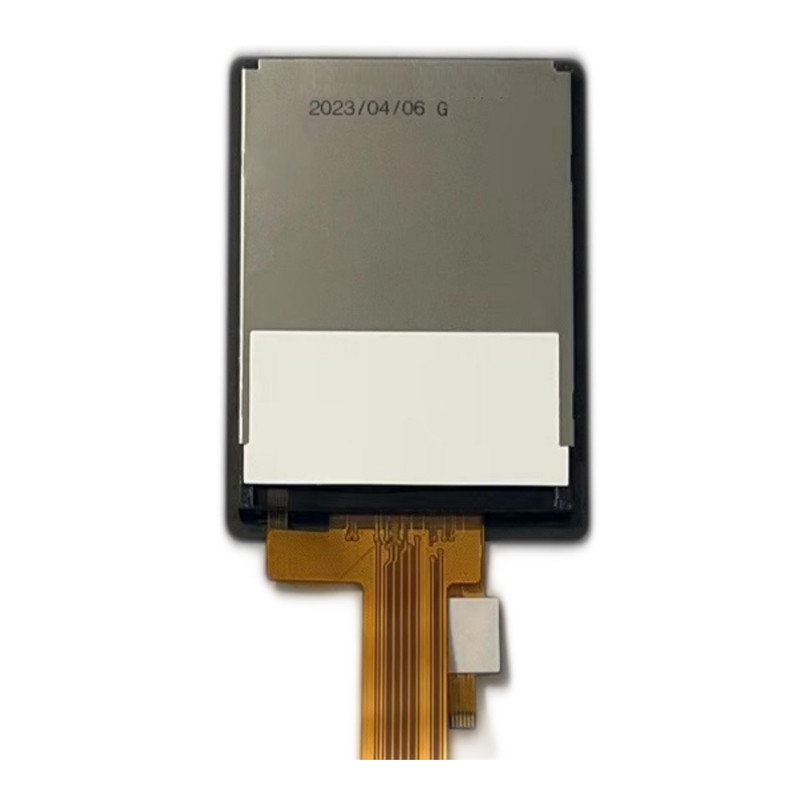

    Sunlight Readable 2.4 Inch IPS TFT LCD Display ILI9341V Driver SPI Interface​ Product Images

    Sunlight Readable 2.4 Inch IPS TFT LCD Display ILI9341V Driver SPI InterfaceSunlight Readable 2.4 Inch IPS TFT LCD Display ILI9341V Driver SPI Interface

    Factory Facilities and Certifications

    Sunlight Readable 2.4 Inch IPS TFT LCD Display ILI9341V Driver SPI InterfaceSunlight Readable 2.4 Inch IPS TFT LCD Display ILI9341V Driver SPI Interface


    TFT LCD Display Module Manufacturer - more than 300 TFT standard items on line


    SAEF Technology is a global leading Manufacturer of TFT LCD display based China. SAEF offers a wide product range of small to medium sizes TFT display modules in sizes ranging such as 0.96",1.28", 1.77, 2", 2.1" 2.2" 2.3", 2.4", 2.6", 2.8", 3", 3.1", 3.2", 3.4" 3.5", 3.6", 3.7", 4", 4.3", 4.6", 5", 5.5", 5.6", 5.7", 6.5", 7", 8", 9", 10.1", 10.2", 10.4", 11.6", 12.1" , 12.3", 13.3", 14", 15", 15.6", 17", 17.3" 18.4", 18.5", 19", 21.3", 21.5", 23.8", 24", 25", 27" and 28" TFT (diagonal size of the active area) and so on. There are more than 200 TFT standard models listed on this website; furthermore, almost each item is acceptable to derivate from the standard items to meet the customers' requirement.


    SAEF TFT displays are qualified under industrial standard including standard TFT-LCD modules, IPS TFT, High brightness TFT LCD (sunlight readable display), TFT panels with controller boards, Bar Type TFT, Wide Temperature TFT LCD. These displays include landscape or portrait modes. SAEF TFT LCD displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology. Many of our TFT display modules have more than one interface available including MCU, RGB, TTL, LVDS and MIPI DSI. SAEF TFT modules are perfect for a number of applications including industrial control, coffee machine, medical equipment, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.


    Search keyword: tft 2.4", 2.4 tft lcd, 2.4" tft lcd, 2.4 inch tft lcd, tft lcd 2.4, 2.4 tft display, 2.4" tft display, 2.4 inch tft display, tft display 2.4 inch, tft display 2.4", 2.4 inch tft lcd display, 2.4" tft screen, 2.4 inch tft screen, tft screen 2.4 inch, tft screen 2.4", 2.4 inch tft lcd screen
