** Datasheet Download **

SFTO2150SM-7048A3CT Specification.pdf

PCAP TFT Display 21.5 Inch FHD 1920*1080 Resolution, LVDS 21.5 Inch TFT LCD Display With Built-In LED Backlight Driver​ Product Description

SFTO2150SM-7048A3CT PCAP TFT LCD display is a 21.5 inch color active matrix TFT LCD module using amorphous silicon TFT‘s (Thin Film Transistors) as an active switching devices. SFTO2150SMT-7048A-CT PCAP TFT LCD display module has a 21.5 inch diagonally measured active area with Full-HD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M(Round up)(6bit+2FRC) colors and color gamut 72%. The LED driver for back-light driving is built in this model.

SFTO2150SM-7048A3CT PCAP TFT display is demostrating graphics and texts on a 1920×3×1080 dotspanel with16.7M colors by using Dual channel LVDS,8 bits RGB data input and supplying+3.3VDC supply voltage for TFT-LCD panel driving.In this SFTO2150SM-7048A3CT TFT LCD display panel, color filters for excellent color performance is incorporated to realize brighter and clearer pictures, making this display optimum for use in multi-media applications.Optimum viewings are in all directions.

* Reserve Type
* LVDS interface
* High-speed response
* 6-bit (Hi-FRC) color depth, Display 16.7M colors
* Incorporated edge type (LED) backlight
* Compatible with RGB98% and NTSC45% (NTSC72% is available as well)
* High luminance and contrast ratio, low reflection and wide viewing angle
* DE ( data enable ) only
* Rohs and Halogen free
* TEO 6.0, ES6.0 Compliant
* Gamma Correction

Features:

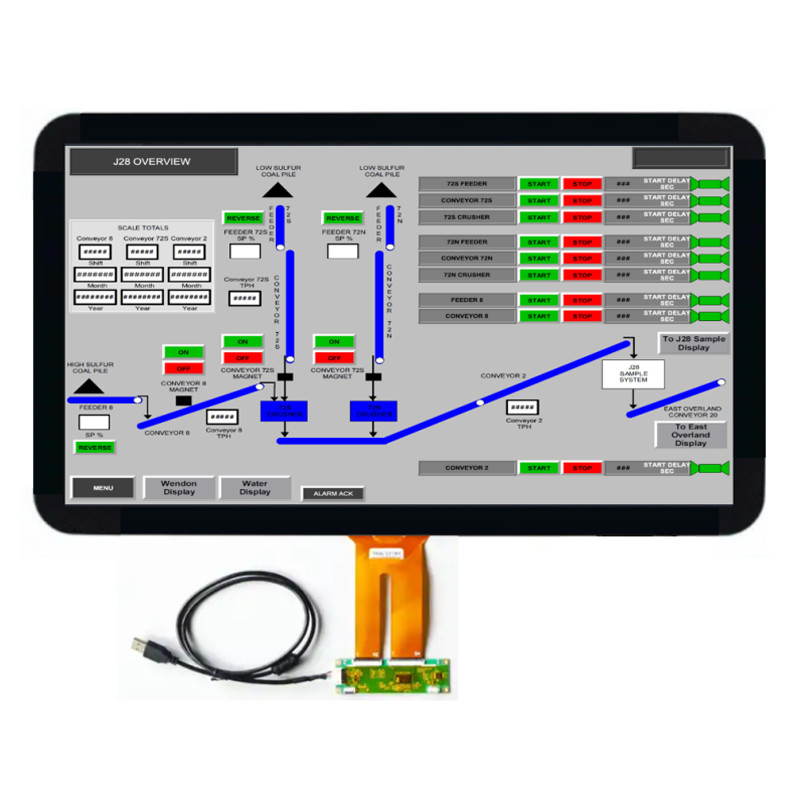

PCAP TFT Display 21.5 Inch FHD 1920*1080 Resolution, LVDS 21.5 Inch TFT LCD Display With Built-In LED Backlight Driver​ Product Image

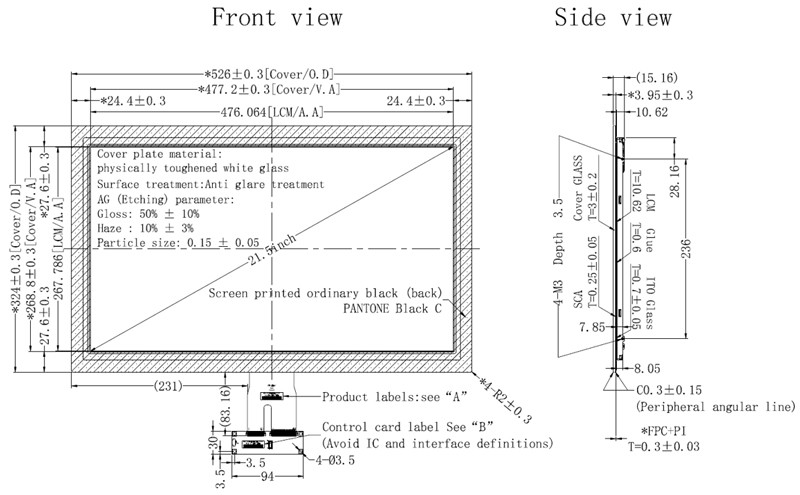

PCAP TFT Display 21.5 Inch FHD 1920*1080 Resolution, LVDS 21.5 Inch TFT LCD Display With Built-In LED Backlight Driver​ Product Drawing

Display Pin Definition

1 RxO0- Negative LVDS differential data input (Odd data)

2 RxO0+ Positive LVDS differential data input (Odd data)

3 RxO1- Negative LVDS differential data input (Odd data)

4 RxO1+ Positive LVDS differential data input (Odd data)

5 RxO2- Negative LVDS differential data input (Odd data)

6 RxO2+ Positive LVDS differential data input (Odd data)

7 GND Ground

8 RxOCLK- Negative LVDS differential clock input (Odd clock)

9 RxOCLK+ Positive LVDS differential clock input (Odd clock)

10 RxO3- Negative LVDS differential data input (Odd data)

11 RxO3+ Positive LVDS differential data input (Odd data)

12 RxE0- Negative LVDS differential data input (Even data)

13 RxE0+ Positive LVDS differential data input (Even data)

14 GND Ground

15 RxE1- Negative LVDS differential data input (Even data)

16 RxE1+ Positive LVDS differential data input (Even data)

17 GND Ground

18 RxE2- Negative LVDS differential data input (Even data)

19 RxE2+ Positive LVDS differential data input (Even data)

20 RxECLK- Negative LVDS differential clock input (Even clock)

21 RxECLK+ Negative LVDS differential clock input (Even clock)

22 RxE3- Negative LVDS differential data input (Even data)

23 RxE3+ Positive LVDS differential data input (Even data)

24 GND Ground 25 CTL CTL_DVR

26 CE CE_ DVR 27 NC No connection

28 VDD Power Supply Input Voltage

29 VDD Power Supply Input Voltage

30 VDD Power Supply Input Voltage

PCAB USB Pin Definition

1 VBUS / VDD

2 DN / D-

3 DP / D+

4 GND

Factory Facilities and Certificates

Projected Capacitive (PCAP) touch

Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The SAEF

technology projected capacitive touch screen is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.

Cover Glass:

1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF

Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
