** Datasheet Download **
SFTO2150SM-7048A3CT
Specification.pdf
About this item SFTO2150SM-7048A3CT
The following is a product introduction for a 21.5-inch TFT LCD
display screen:
Size and Resolution: This 21.5-inch TFT LCD display has a full HD resolution of
1920x1080 pixels, providing clear and delicate image display.
Display type: Adopting IPS (In Plane Switching) display technology ensures
consistent color and brightness from all angles.
Touch screen: with USB capacitive touch screen; Support customized capacitive
touch screen (CTP) to enhance user interaction and operational
convenience.
Interface: Equipped with LVDS interface, supporting 30 PIN connection to
ensure high-speed data transmission.
Brightness and visibility: The brightness reaches 1000 cd/m ², which can maintain clear
visibility even under direct sunlight, making it very suitable for
outdoor or bright environments.
Operating and storage temperature: The operating temperature range is -0~+50 ° C, and the storage
temperature range is -20~+60 ° C, meeting the usage needs under
various environmental conditions.
Application areas: Suitable for various application scenarios such as interactive
billboards, digital signage, point of sale systems, educational
displays, etc.
Customized services: Provide customized solutions for capacitive or resistive touch
screens based on customer needs.
Material compliance: The materials comply with RoHS standards, ensuring environmental
protection and user safety.
Quality control: The product has implemented a series of quality control measures,
including production process control, automated testing equipment,
manual testing, sampling inspection, quality management system, and
third-party supervision and inspection, to ensure product quality.
Technical support and services: Provide high-quality technical support services, including sample
code libraries, IC data manuals, product specification downloads,
and solution support, to help customers achieve unique display
requirements.
This 21.5-inch FHD TFT LCD display is an ideal choice for various
commercial and industrial applications due to its high resolution,
high brightness, and good environmental adaptability.
Features
21.5 inch TFT Display is a Reserve Type module
21.5 inch TFT LCD is with LVDS interface
21.5 inch PCAP TFT Display has High-speed response
21.5 inch Touch TFT Screen has 6-bit (Hi-FRC) color depth, Display
16.7M colors
21.5 inch LCD Display module has Incorporated edge type (LED)
backlight
21.5 inch TFT is Compatible with RGB98% and NTSC45% (NTSC72% is
available as well)
21.5 inch TFT screen has High luminance and contrast ratio, low
reflection and wide viewing angle
21.5 inch TFT PCAP screen has DE ( data enable ) only
21.5 inch industrial Display screen is Rohs and Halogen free
21.5 inch industrial TFT is TEO 6.0, ES6.0 Compliant
21.5 inch LCD Touch has Gamma Correction function
| Keywords: | 21.5 Inch PCAP TFT Display |
| Resolution: | 1920*1080 Pixels |
| LCD Interface: | LVDS |
| LCD Size: | 495.6 X 292.2 X 10.57 Mm (w/o Touch) |
| LCD With Touch: | 526 X 324 X 15.16 Mm (with Touch) |
| Active Area: | 476.064(H) X 267.786(V) Mm |
| CTP Interface: | USB |
| Surface Luminance: | 1000 Cd/m2 |
| Touch Screen: | CTP (Projective Capacitive Touch Screen) |
| Operating Temp.: | -10℃ To +60℃ |
| Storage Temp.: | -20℃ To +60℃ |
| Display Type: | IPS Full Viewing Angles |
| Contrast Ratio: | 1000 |
| LED Lifetime: | 30,000 Hours |
| Surface Treatment: | Haze 25%, 3H |
| Display Color: | 16.7 M |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |
Mechanical Drawing
Interface Pin Definition
| Pin No. | Symbol | Description |
| 1 | RxO0- | Negative LVDS differential data input (Odd data) |
| 2 | RxO0+ | Positive LVDS differential data input (Odd data) |
| 3 | RxO1- | Negative LVDS differential data input (Odd data) |
| 4 | RxO1+ | Positive LVDS differential data input (Odd data) |
| 5 | RxO2- | Negative LVDS differential data input (Odd data) |
| 6 | RxO2+ | Positive LVDS differential data input (Odd data) |
| 7 | GND | Ground |
| 8 | RxOCLK- | Negative LVDS differential clock input (Odd clock) |
| 9 | RxOCLK+ | Positive LVDS differential clock input (Odd clock) |
| 10 | RxO3- | Negative LVDS differential data input (Odd data) |
| 11 | RxO3+ | Positive LVDS differential data input (Odd data) |
| 12 | RxE0- | Negative LVDS differential data input (Even data) |
| 13 | RxE0+ | Positive LVDS differential data input (Even data) |
| 14 | GND | Ground |
| 15 | RxE1- | Negative LVDS differential data input (Even data) |
| 16 | RxE1+ | Positive LVDS differential data input (Even data) |
| 17 | GND | Ground |
| 18 | RxE2- | Negative LVDS differential data input (Even data) |
| 19 | RxE2+ | Positive LVDS differential data input (Even data) |
| 20 | RxECLK- | Negative LVDS differential clock input (Even clock) |
| 21 | RxECLK+ | Negative LVDS differential clock input (Even clock) |
| 22 | RxE3- | Negative LVDS differential data input (Even data) |
| 23 | RxE3+ | Positive LVDS differential data input (Even data) |
| 24 | GND | Ground |
| 25 | CTL | CTL_DVR |
| 26 | CE | CE_DVR |
| 27 | NC | No connection |
| 28 | VDD | Power Supply Input Voltage |
| 29 | VDD | Power Supply Input Voltage |
| 30 | VDD | Power Supply Input Voltage |
PCAB USB Pin Definition
1 VBUS / VDD
2 DN / D-
3 DP / D+
4 GND
Electrical Characteristics
| Parameter | Symbol | Min | Typ Max | Unit |
| Power supply voltage | VDD | 4.5 | 5.0 | 5.5 | V |
| Power Supply Current | IVDD | | 500 | 1200 | mA |
| In-Rush Current | IRUSH | | 2.0 | 3.0 | A |
| Permissible Input Ripple Voltage | VRF | | | 300 | mV |
| High Level Differential Input Threshold Voltage | VIH | | | +100 | mV |
| Low Level Differential Input Threshold Voltage | VIL | -100 | | | mV |
| Differential input voltage | VID | 200 | | 600 | mV |
| Input voltage(BL) | VBL_I | | -0.3 | VDD+0.3 | mV |
| Differential input common mode voltage | VCM | 1.0 | 1.2 | 1.5 | |
| Power Consumption | VD | | 2.5 | 6 | W |
Optical Characteristics
| Paramete | Conditions | Min. | Typ. | Max. | Unit |
Viewing Angle (CR>10) | Horizontal | θL | 85 | 89 | - |
degree |
| θ R | 85 | 89 | - |
| Vertical | θT | 85 | 89 | - |
| θB | 85 | 89 | - |
| Contrast Ratio | Center | 700 | 1000 | - | - |
| Response Time | Tr+Td | - | 14 | 20 | ms |
CF Color Chromaticity (CIE1931) | Red x |
Typ. -0.03 | 0 |
Typ. +0.03 | 0 |
| Red y | - | - |
| Green x | - | - |
| Green y | - | - |
| Blue x | - | - |
| Blue y | - | - |
| White x | 0.323 | - |
| White y | 0.379 | - |
| Center Luminance of white | YLI | 800 | 1000 | cd/m |
| Cross Talk | Ct | | | 2.0 | % |

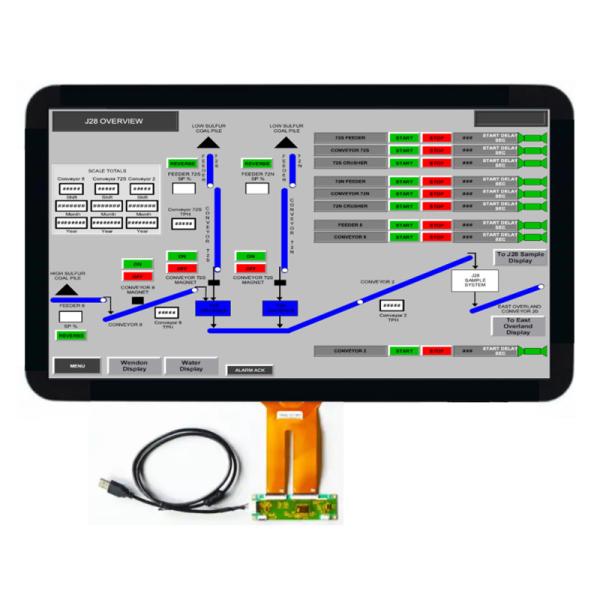

Product Image
Factory Facilities and Certificates
Projected Capacitive (PCAP) Touch Screen
Projected Capacitive (PCAP) touch technology offers a fast and
sensitive response and professional-grade reliability combined. The
SAEF
technology projected capacitive touch screen is designed for strict
industrial, medical, and automotive applications. We can also
combine PCAP touch screens with liquid crystal displays (LCDs),
which is an integrated embedded solution that helps simplify the
supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
Contact Us
We love to hear about your projects, If you have any questions, we
can be reached at sales2@saef.com.cn
