10.1-inch WiFi digital photo frame 1280x800 IPS screen,
automatically rotating pictures and videos Product Introduction
Industry-specific attributes
Product name:Wifi Digital Photo Frame
Size 10'' inch IPS screen
Frame Material:ABS Frame
Function:WIFI, Video Playback, MP3
Plug and Play Micro SD Card: Supports direct playback from up to
32GB Micro SD card and USB drive to expand storage or import,
export, and backup files. No built-in memory.
Installation:wall-mountin wall/desktop
system configuration
CPU:Rockchip RK3126c Clocked 1.5G
RAM:1G
Memory:16GB
system:Android 8.1
Display parameters and performance:
IPS screen:10. 1"IPS screen
Resolution:1280*800 216.96(W)×135.6(H) mm
contrast ratio:1000
brightness:320cdm2
touch screen:5 point capacitive touch screen
Contrast:800:1
Visual angle:85/85/85/85
Response time:6ms
Life(hrs):60,000(hrs)
Horizontal frequency:50-70KHZ
Vertical frequency:56-75KHZ
Screen ratio:16:10
network:
WiFi :802. 11b/g/n 2.4G
Interface:
SD:SD card, (supports Max 64GB)
Mini USB:USB OTG
USB Host 2.0:x 1pcs
Power jack:DC/4.0 power input
headset port:3.5mm stereo headphone output
Media play:
Video format:MPEG- 1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support
up to 1080p
Audio format:MP3/WMA/AAC etc.
Picture format:jpeg,jpg
Speaker:2*2W
OSD language:Multilingual OSD operation in English and Chinese
Accessory:
an instruction manual:Standard
Adapter:Power adapter 5V/1.5A
Desktop Support:Standard
Temperature:
Working temperature:- 10°C~50°C
Storage temperature:-20°C~60°C
Color selection: White / Black......
Application:Wifi,Touch screen,Play advertising videos and images
| Product: | 10.1" Inch WIFI Digital Photo Frame | Resolution: | 1280x800 Dots IPS Screen |
|---|
| Brightness: | 320 Cdm2 | Screen Scale/Display Area: | 16:10/ Display Area : 216.96(W)×135.6(H) Mm |
|---|
| CPU: | Rockchip RK3126c Clocked 1.5G | Memory: | 1G+16G |
|---|
| Interface: | SD/Mini USB/USB 2.0/Power/Earphone | Multi-Media: | Video/Audio/Picture |
|---|
| Other Functions: | Remote Control/Time/Power On / Off/Key/Auto Play/Picture Playback
Adjustment | Speaker: | 2×2W Speakers |
|---|
| OSD Language: | Multi OSD Language | Adapter: | DC-In 5V/1.5A |
|---|
| User's Manual: | One | WiFi: | 802. 11b/g/n 2.4G |
|---|
Product Advantages
1.IPS full viewing angle(80/80/80/80). Very good viewing angle.
Perfect for different kinds of applications, regardless of putting
on top, or on the table, or used handheld, etc.
2.Excellent display performance of background color, luminance,
viewing angle, and intensity, etc.
3.Wide Temperature of Top of -30℃ to +80℃ for industrial
applications.
4.Flexible to have with or without resistive touch screen. We can
support to design customized CTP(capacitive touch panel) for
customers as well. FPC is customizable too.
5.Low-cost solution among the same kinds in the LCD industry.
6.Easy to install and easy to maintain.
Resolution determines how detailed a bitmap image is.
In general, the higher the resolution of the image, the more pixels
it contains, the sharper the image, and the better the quality of
the print. At the same time, it also increases the storage space
taken up by the files.
10.1-inch WiFi digital photo frame 1280x800 IPS screen,
automatically rotating pictures and videos Product Drawing

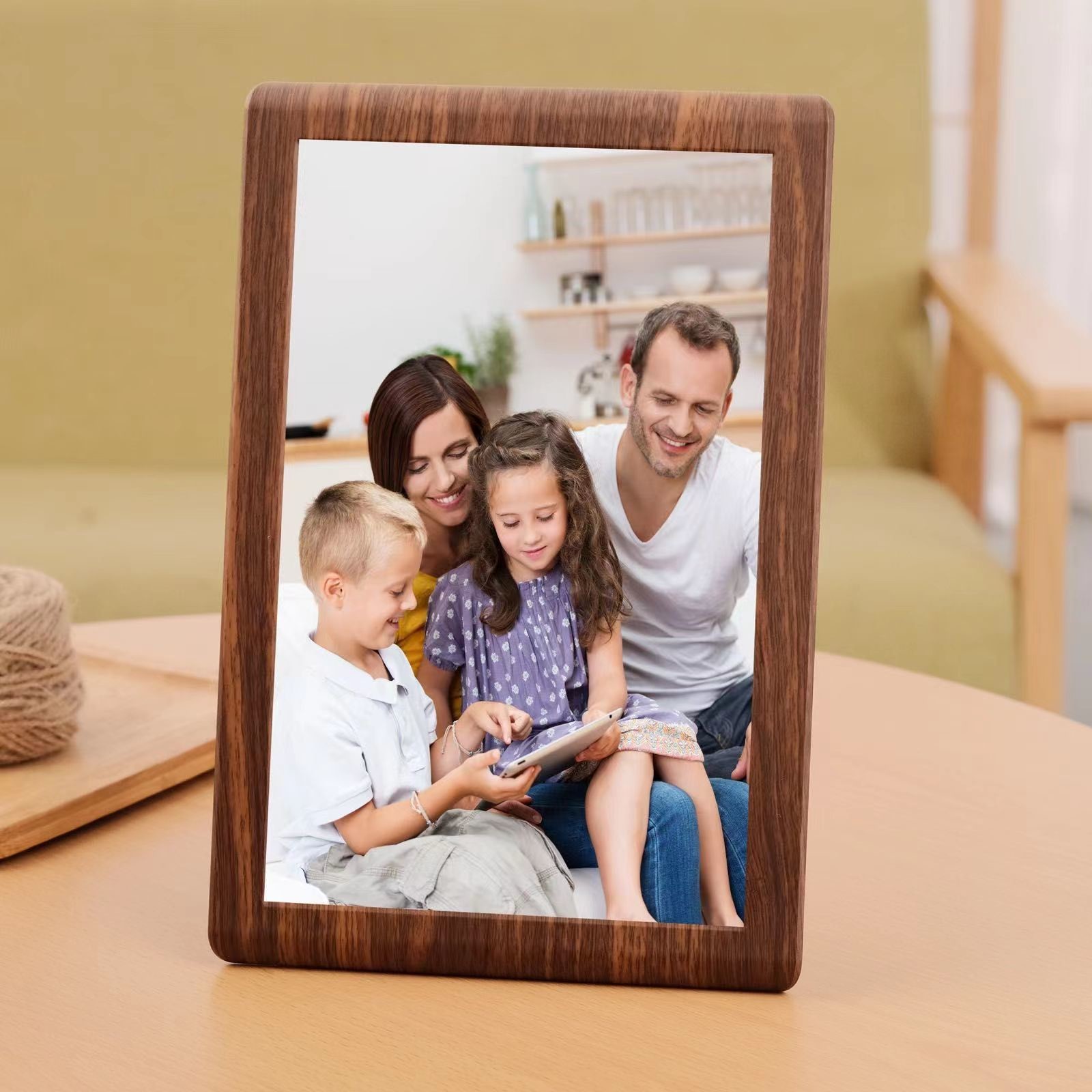

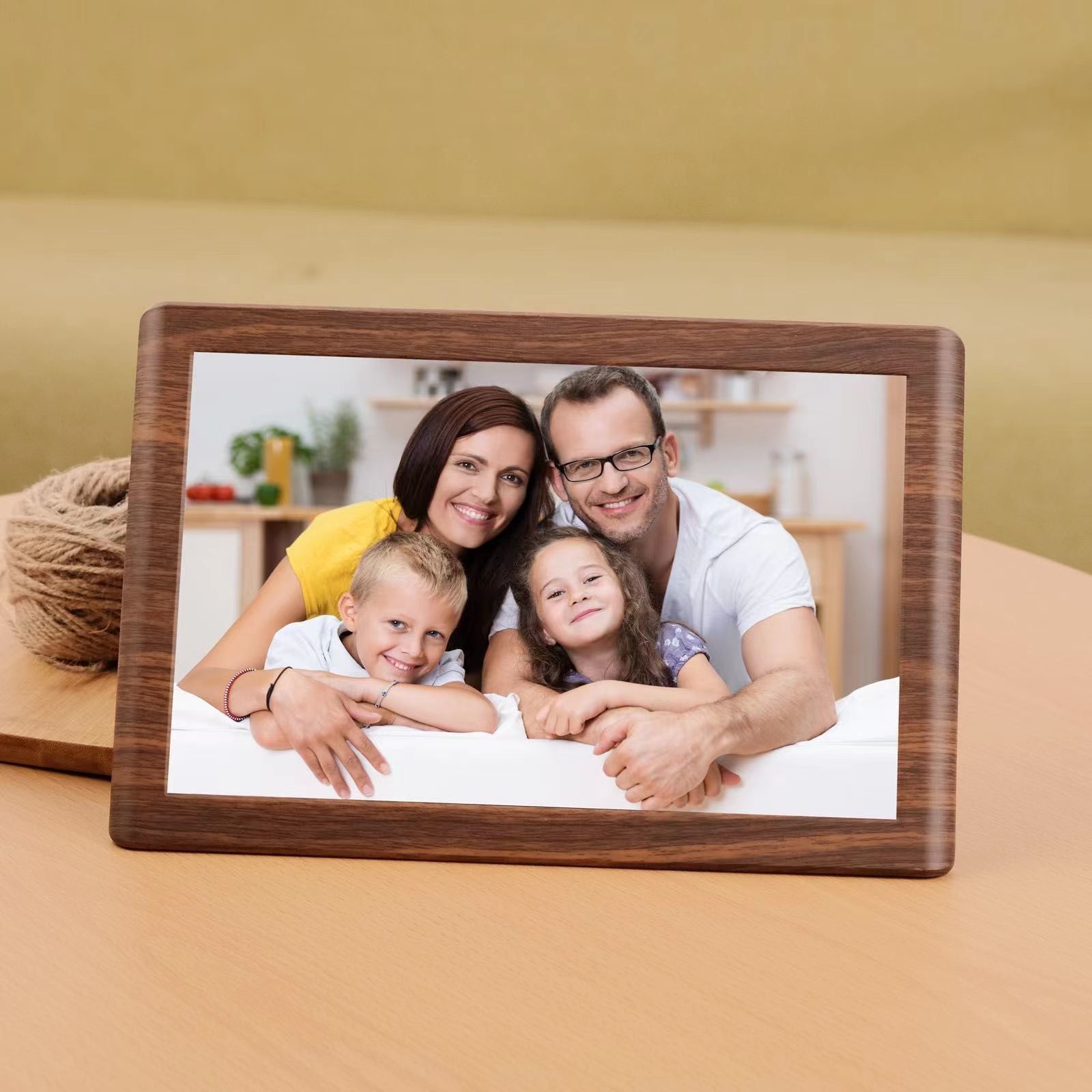

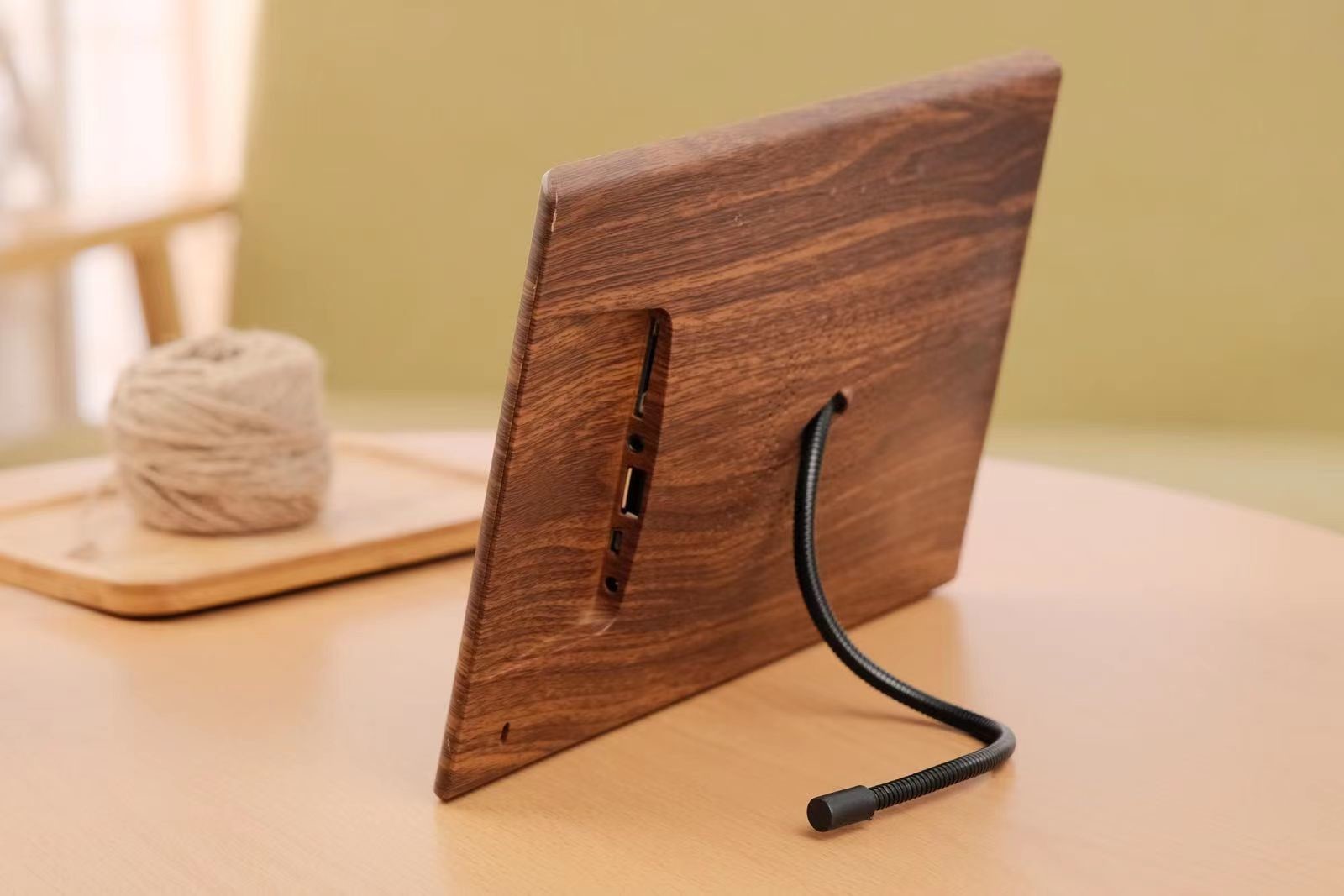

10.1-inch WiFi digital photo frame 1280x800 IPS screen,
