0.63 Inch 120x28 Pixels OLED Display Module, 0.63 Inch OEL Matrix
Display Product Introduction
SFOS063XZ-7114AN OLED Display Module is a 120x28 resolution COG
graphic display, diagonal size 0.63 inch. The OLED model is
designed as industrial grade which is having the advantage of
competitive price. The module is built-in with SSD1312 IC; it
supports I2C interface. The supply voltage for logic is 2.8V
typical, ranging from 1.65V to 3.3V, supply voltage for display is
8V, Operating Current for VDD is 180μA, driving duty 1/28. SFOS063XZ-7114AN OEL Display Module is suitable for wearable
device, smart home applications and etc. This module can be
operating at temperatures from -40℃ to +80℃; its storage
temperatures range from -40℃ to +85℃.
Features
1. This 0.63-inch mini OLED display has a resolution of 120X28 and
features a SSD1312 chipset.
2. This 0.63-inch OLED display module has ultra-low power
consumption: full screen illumination 0.08w.
3. This micro OLED display 0.63 inch is soldered type, we can
customize FPC according to customer requirements.
4. This 0.63 inch 120x28 OLED product is designed for IIC
interface.
5. This 0.63 inch OLED display module has an infinite viewing angle
"up to 175 degrees"..
6. This OLED 0.63 inch 120x28 product is suitable for wearable
devices, smart home applications, etc.
7. This IIC OLED 0.63 inch product has a self-illuminating design,
no backlight is required, and the display can be self-illuminated;
It has high-contrast, bright and clear dots that are very readable
even in tiny fonts.
8. The 0.63-inch OLED display is suitable for wearable devices,
smart home applications, etc.
9. This 0.63-inch OLED display has a faster response time of "10
microseconds at +25 °C".
10.This 0.63 inch mono OLED product has high brightness and this
product has a contrast ratio of up to 2000:1.
11. This low cost 0.63 inch OLED product has lower power
consumption - reducing CO2 emissions.
| Product: | 0.63 Inch OLED Display Module |
| Driver IC: | SSD1312 Or Equivalent |
| Interface: | I2C |
| Display Color: | Monochrome (white) |
| Number Of Pixels: | 120x28 Pixels |
| Display Mode: | Passive Matrix |
| Drive Duty: | 1/28 Duty |
| Panel Size: | 21.54 X 6.62 X 1.22 (mm) |
| Active Area: | 15.58 X 3.62 (mm) |
| Pixel Pitch: | 0.13 X 0.13 (mm) |
| Pixel Size: | 0.11 X 0.11 (mm) |
| Pin Number: | 14 Pins ( Can Be Customized) |
| Viewing Direction: | All Viewing Angles |
| Connection: | Soldering/Hotbar (customizable) |
| Life Time: | 50,000 Hours @60cd/m2 |
| Compliance: | REACH & RoHS Compliant |
0.63 Inch 120x28 Pixels OLED Display Module, 0.63 Inch OEL Matrix
Display Product Drawing

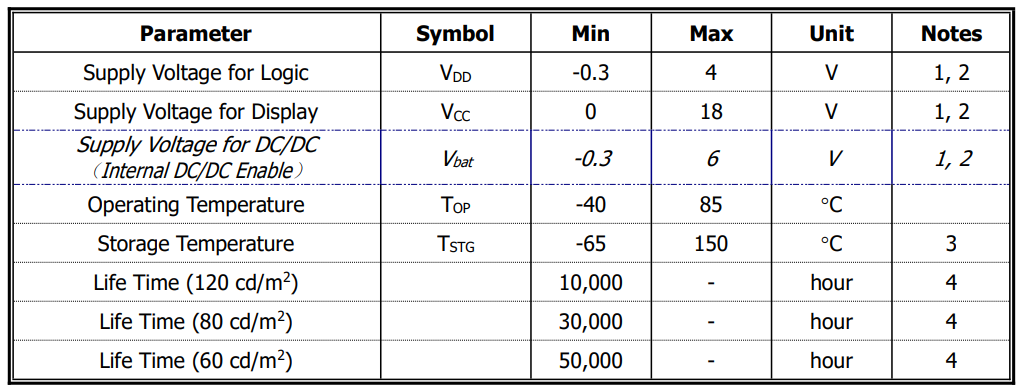

Absolute Maximum Ratings
Optics Characteristics
Pin Definition
Pin1, C2P / Pin2, C2N / Pin3, C1P / Pin4, C1N
Positive Terminal of the Flying Inverting Capacitor, Negative
Terminal of the Flying Boost Capacitor. The charge-pump capacitors
are required between the terminals. They must be floated when the
converter is not used.
Pin5, VDD2 VBAT
Power Supply for DC/DC Converter Circuit. This is the power supply
pin for the internal buffer of the DC/DC voltage converter.It must
be connected to external source when the converter is used. It
should beconnected to VDD when the converter is not used.
Pin6, VBREF NC
Pin7, VSS
Ground of Logic CircuitThis is a ground pin. It acts as a reference
for the logic pins. It must beconnected to external ground.
Pin8, VDD1
Power Supply for Logic. This is a voltage supply pin. It must be
connected to external source.
Pin9, RES#
Power Reset for Controller and Driver. This pin is reset signal
input. When the pin is low, initialization of the chip isexecuted.
Keep this pin pull high during normal operation.
Pin10, SCL
IIC Bus Clock Signal. The transmission if information in the I2C
bus is following a clock sigmal. Eachtransmission of data bit is
taken place during a single clock period of this pin.
Pin11, SDA
I2C Bus Data Signal. This pin acts as a communication channel
between the transmitter and the receiver.
Pin12, IREF
Current Reference for Brightness Adjustment. This pin is segment
current reference pin. A resistor should be connectedbetween this
pin and VSS. Set the current at 12.5uA maximum.
Pin13, VCOMH
Voltage Output High Level for COM Signal. This pin is the input pin
for the voltage output high level for COM signals. Acapacitor
should be connected between this pin and VSS.
Pin14, VCC
Power Supply for OEL Panel. This is the most positive voltage
supply pin of the chip. A stabilization capacitorshould be
connected between this pin and VSS when the converter is used.
Itmust be connected to external source when the converter is not
used.
0.63 Inch 120x28 Pixels OLED Display Module, 0.63 Inch OEL Matrix

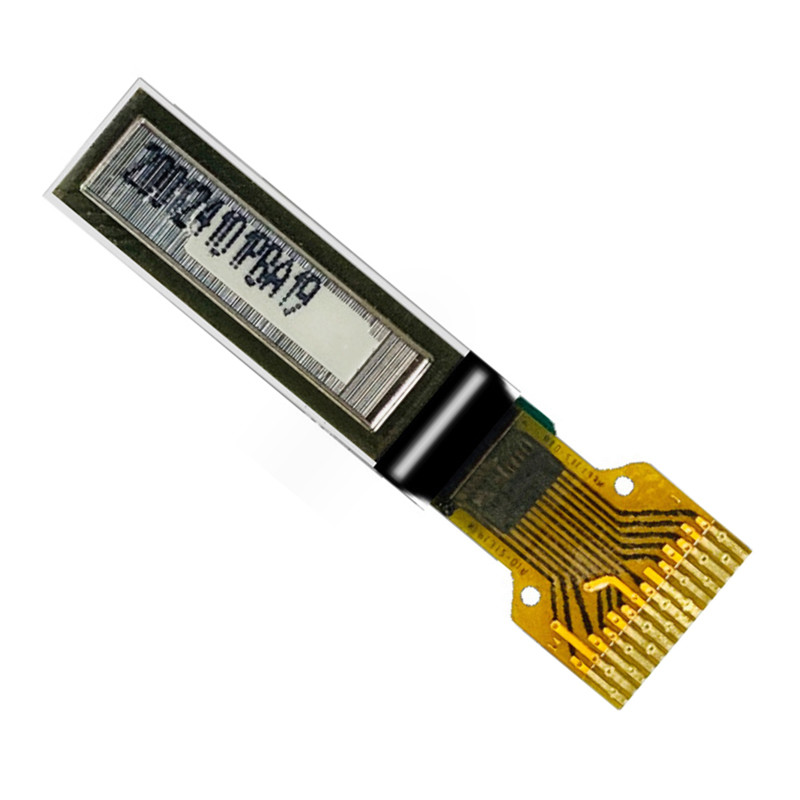

Display Product Image
