27 Inch 4K Color Industrial/Medical TFT Display 3840x2160 60HZ EDP
Interface 1000nits Product Introduction
The SFTO2700B-7125AN industrial TFT display has a 27-inch diagonal
measurement active area with UHD resolution (3840 horizontal x 2160
vertical pixel array). Each pixel is divided into red, green, and
blue dots, arranged in vertical stripes, and the module can display
1.07B colors. The TFT-LCD panel used in this module is suitable for
both low-reflection and high-color types. This industrial-grade TFT
LCD display module supports eDP interface. This TFT LCD display
operates at 11V (max) with a Vdd of 9V to 11V.
The SFTO2700B-7125AN is designed with a capacitive touch screen,
and single-touch and multi-touch options are available. This TFT
LCD module has a brightness of 1000cd/m2. TFT touch LCD
SFTO2700B-7125AN is in good quality condition. As an
industrial-grade display, this product is widely used in industrial
and medical applications, POS terminals, HMIs, home automation,
security systems, etc.
Features
This 27-inch industrial/medical TFT LCD can be displayed in
reverse, landscape, and portrait orientation.
This 27-inch TFT LCD display supports a Type 4-channel eDP
interface with a link rate of 5.4Gbps
This 27-inch LCD touchscreen display features vivid colors and
excellent color saturation with 10-bit (8bit+A-FRC) color depth and
a 1.07B color display
This 27-inch IPS LCD display has a built-in edge-type backlight
(LED),
This 27-inch EDP monitor is compatible with NTSC90% and sRGB match
rate of 98% (standard) and area ratio of 105% (standard)
This high-brightness 27-inch TFT product features 1000 nits of high
brightness and high contrast ratio (Crab:1000), low reflections,
and wide viewing angles
This 27-inch sunlight-readable TFT display is eco-friendly and
RoHS/halogen-free
This 27-inch TFT screen can be gamma corrected
| Product: | 27 Inch Industrial TFT Display |
| Resolution: | 3840(H) X 2160 (V) Pixels |
| Surface Luminance: | 1000 Cd/m2(nits) |
| Interface: | EDP Interface |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| Pin Number: | 30pins |
| Outline Dim.: | 630.0(H) X368.2 (V)x20.98(T) (mm) |
| Active Area: | 596.736(H) X 335.664 (V) (mm) |
| Surface Treatment: | Hard Coating(3H), Haze 25% |
| Connection: | ZIF |
| Touch Screen: | CTP Optional |
| Color Depth: | 1.07 B (8bit+A-FRC) |
| Vsync Frequency: | 60HZ |
| Storage Temp.: | -30℃ To +80℃ |
| Operating Temp.: | -20℃ To +70℃ |
| Backlight: | Long Side, 2-LED Lighting Bar Type |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |

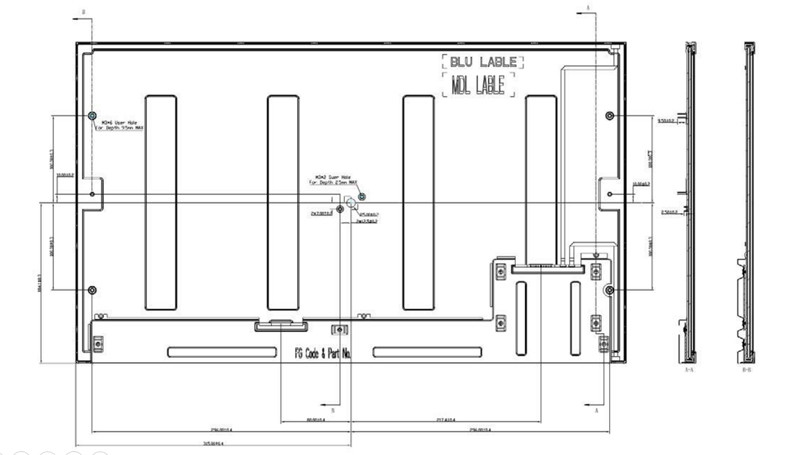

27 Inch 4K Color Industrial/Medical TFT Display 3840x2160 60HZ EDP
Interface 1000nits Product Drawing

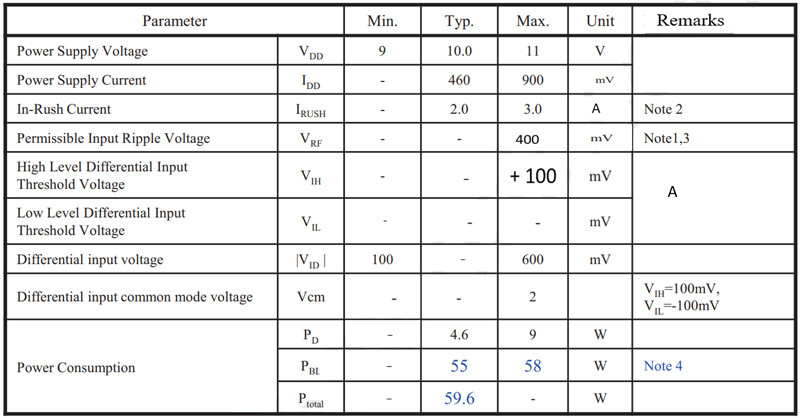

LCD Module Electrical Specifications
Backlight Unit Specifications
LCD Module Optical Specifications
27 Inch 4K Color Industrial/Medical TFT Display 3840x2160 60HZ EDP
Interface 1000nits Product Image
Factory Facilities and Certificates
Projected Capacitive (PCAP) Touch Screen
Projected capacitive (PCAP) touch technology provides fast and
responsive response and professional-grade reliability. Saef
Technology's projected capacitive touchscreens are designed for
rigorous industrial, medical, and automotive applications. We can
also combine PCAP touchscreens with liquid crystal displays (LCDs),
an integrated embedded solution that helps streamline supply chains
and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
Search keyword: industrial TFT display 27 inch, PCAP TFT LCD 27
inch, PCAP TFT LCD 27 inch, tft 27", 27 inch tft lcd, 27" tft lcd,
27 inch tft lcd, tft lcd 27, 27" tft display, 27" tft display, 27
inch tft display, tft display 27 inch, tft display 27", 27 inch tft
lcd display, 27" tft screen, 27 inch tft screen, tft screen 27
inch, tft screen 27", 27inch tft lcd screen, UFD TFT 27", 27 inch
3840x2160, 27 inch edp, high brightness 27 inch.
