14 Inch FHD 16:10 PCAP TFT Display EDP 1920x1200 Pixels With
Capacitive Touch Screen Product Introduction
SAEF Technology SFTO1400JD-7087A-CT TFT LCD Display is a 14inch IPS
type full viewing angles screen with resolution of 1920x1200
pixels(16:10) PCAP TFT Display. This commercial grade 14 inch PCAP
TFT display Module supports 8 bits-LVDS interface. high brightness
14" PCAP TFT LCD screen SFTO1400JD-7087A-CT is 3.9V(Max value) for
operating voltage. Vdd is from 2.3V to 3.6V.
SFTO1400JD-7087A-CT 14 inch TFT LCD display is designed with
capacitive touch panel, single touch and multi-touch optional. The
TFT module 14 inch SFTO1010LX-7047A-CT is with 500cd/m2 surface
luminance. If you would like to increase the brightness, please
contact with us for more technical support.
The TFT touch LCD 14 inch SFTO1400JD-7087A-CT Widely used in meter
and instruments, GPS device, POS terminal, scanner, home
automation, conference phone, analyzers, home appliance, home
automation, security system, etc.
Features
>14 inch TFT LCD Display has 2lane eDP interface with 2.7Gbps
link rates
>14 inch TFT LCD is thin and light weight
>14 inch touch LCD Display has 16.2M(Round up)( 6bit+2FRC) color
depth, color gamut 45%
>14 inch PCAP Display has Single LED lighting bar (Bottom
side/Horizontal Direction)
>14 inch TFT Display is a data enable signal model Green product
(RoHS & Halogen free product)
>14 inch TFT screen has On board LED driving circuit
>14 inch LCD touch screen has Low driving voltage and low power
consumption
>14 inch Capacitive touch Display has On board EDID chip DPCD
Version 1.1
>TFT LCD 14" has adjustable backlight brightness with DC mode
| Product: | 14 Inch TFT LCD Display |
| Resolution: | 1920 RGB X 1200 (16:10) |
| Interface: | EDP Interface |
| Surface Luminance: | 300Cd/m2(nits), 500nits optional |
| Pin Number: | 30pins |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| Outline Dim.: | 307.29*205.35(W/O PCB)*3.0 (Max) (mm) |
| Active Area: | 301.5936(H) ×188.496(V) (mm) |
| LCD Surface Treatment: | Hard Coating(3H) |
| Display Colors: | 16.7 M |
| Touch Screen: | Capacitive Touch Panel (CTP) |
| Touch Screen Interface: | IIC |
| NTSC Ratio: | 45% |
| Connection: | ZIF |
| Operating Temp.: | 0℃ To +50℃ |
| Storage Temp.: | -20℃ To +60℃ |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |
14 Inch FHD 16:10 PCAP TFT Display EDP 1920x1200 Pixels With
Capacitive Touch Screen Product Drawing

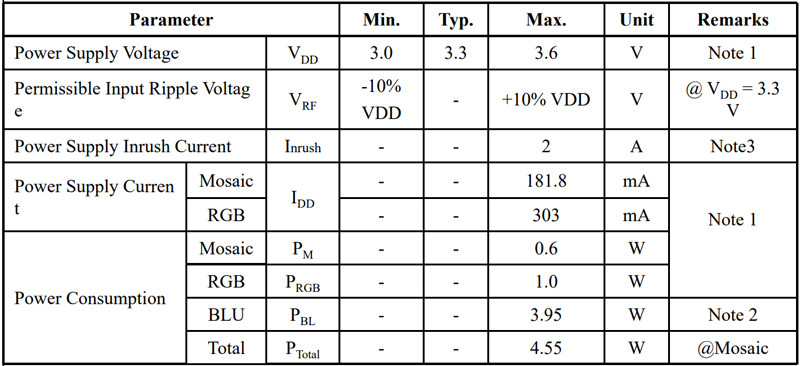

Electrical Specifications

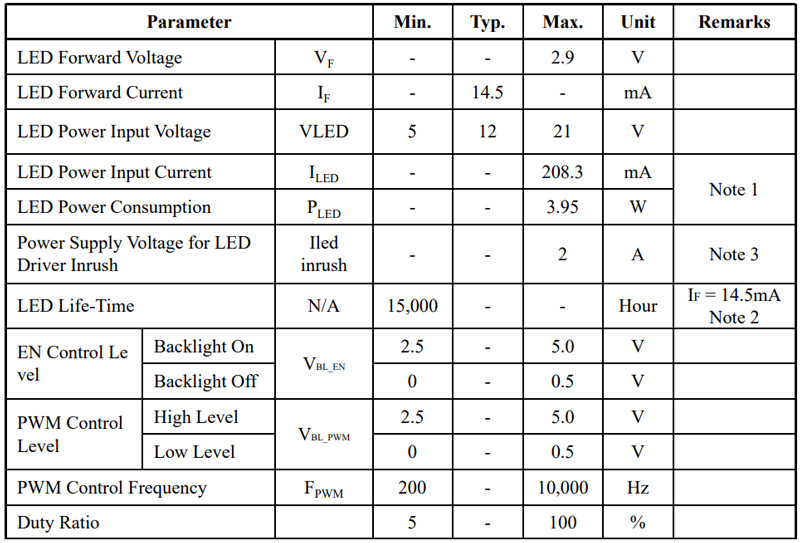

Backlight Unit Specifications
Optical Characteristics

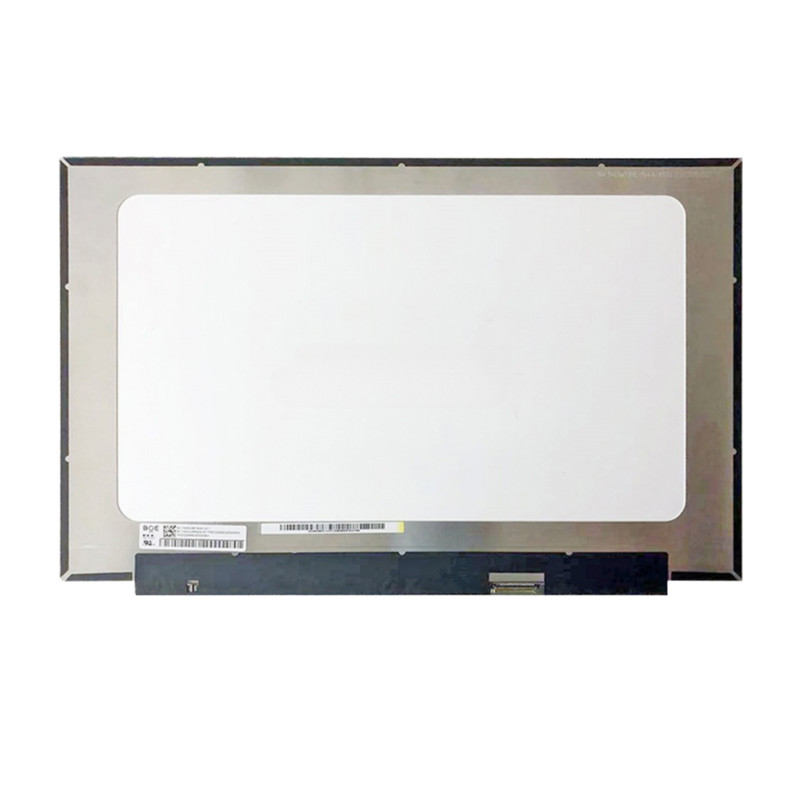

14 Inch FHD 16:10 PCAP TFT Display EDP 1920x1200 Pixels With
Capacitive Touch Screen Product Image

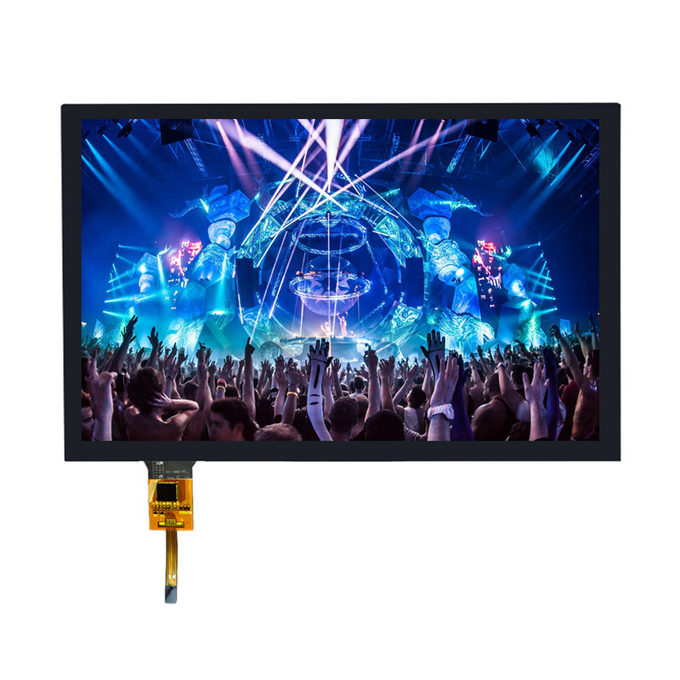

14 inch TFT Display with Customized Cover Glass
Factory Facilities and Certificates
Projected Capacitive (PCAP) Touch Screen
Projected Capacitive (PCAP) touch technology offers a fast and
sensitive response and professional-grade reliability combined. The
projected capacitive touch screen from Saef Technology is designed
for strict industrial, medical, and automotive applications. We can
also combine PCAP touch screens with liquid crystal displays
(LCDs), which is an integrated embedded solution that helps
simplify the supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
Search keyword: industrial TFT display 14 inch, PCAP TFT LCD 14 inch, PCAP TFT LCD
14 inch, tft 14", 14 inch tft lcd, 14" tft lcd, 14 inch tft lcd,
tft lcd 14, 14 inch tft display, 14" tft display, 14 inch tft
display, tft display 14 inch, tft display 14", 14 inch tft lcd
display, 14" tft screen, 114 inch tft screen, tft screen 14 inch,
tft screen 14", 14 inch tft lcd screen, 1920x1200 TFT, 14 inch
1920x1200, 14 inch edp interface
