0.42 Inch OLED Display Module 72x40, OEL Display Module 0.42 Inch Product Introduction

SFOS042XZ-7110AN OLED Display Module is a 72x40 resolution COG graphic display, diagonal size 0.42 inch. The OLED model is designed as industrial grade which is having the advantage of competitive price. The module is built-in with SSD1315 IC; it supports I2C and 4-wire SPI serial interface. The supply voltage for logic is 2.8V, supply voltage for display is 9V, Operating Current for VDD is 180μA, driving duty 1/40.

SFOS042XZ-7110AN OEL Display Module is suitable for wearable device, smart home applications and etc. This module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.

SAEF Technology is a professional OLED Module Supplier. We provide a wide range of standard passive matrix OLED (PMOLED) / OLED dot matrix display and custom design Character OLED modules, Graphic OLED displays and OLED display panels. Mechanical structure includes Chip on Board (COB), Chip on Glass (COG), and TAB (Tape Automated Bonded) types. Customers can upgrade applications from STN LCD to OLED displays easily. SAEF OLED modules are featured with all the important advantages:

• Faster response time “At +25 ℃ 10 μsec.”
• Unlimited viewing angle “Up to 175 degree”
• Thin – No need of backlight, self emitting
• High Brightness
• High contrast ratio “Up to 10,000:1”
• Wide Operation Temperature “-40 ℃ ~ 80 ℃”
• Lower power consumption

0.42 Inch OLED Display Module 72x40, OEL Display Module 0.42 Inch Product Drawing

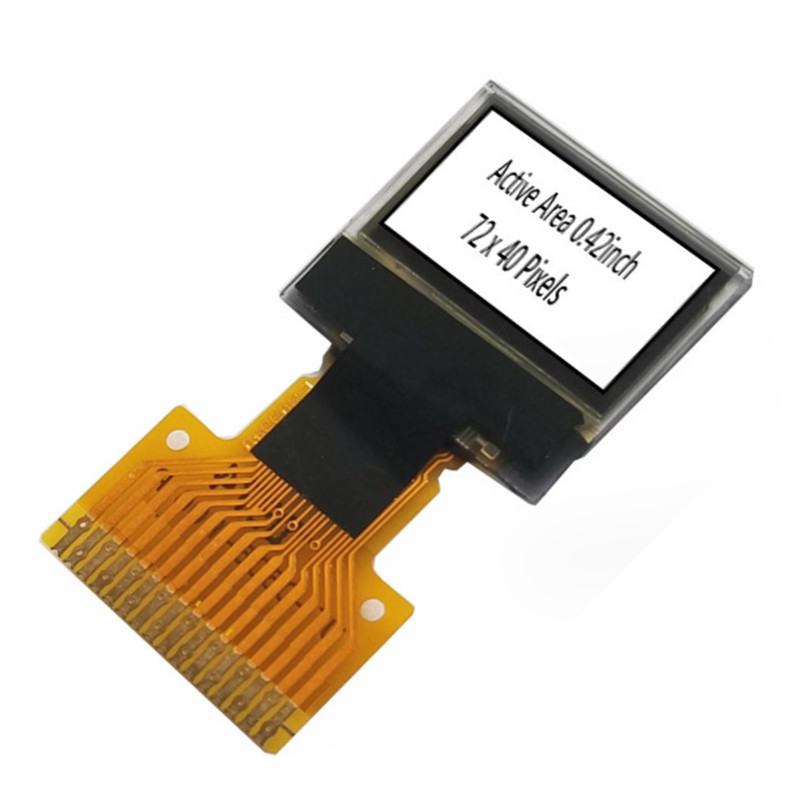

0.42 Inch OLED Display Module 72x40, OEL Display Module 0.42 Inch Product Image
