    4.3 Inch IPS 480*272 Pixel TFT LCD Display ST7283 Driver IC All Viewing Angles

    Ask Lasest Price
    Brand Name : SAEF
    Model Number : SFTO430JS-7025A-N
    Certification : ISO9001 / ISO14000
    Price : Negotiable based on order lot quantity
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 3000K pcs per month
    Delivery Time : 1-5 weeks
    • Product Details
    • Company Profile

    4.3 Inch IPS 480*272 Pixel TFT LCD Display ST7283 Driver IC All Viewing Angles

    4.3 Inch IPS 480*272 Pixel TFT LCD Display, RGB 4.3 Inch TFT Screen​ Product Introduction


    Product Quick Review

    ►4.3 inch TFT LCD Module, 4.3" TFT Module
    ►Resolution : 480x272 dots
    ►View Direction : IPS, All Viewing Angles
    ►Interface : RGB

    ►Operating Temp.: -20℃ To +70℃
    ►Driver IC:ST7283
    ►Control-Board : No
    ►Brightness (cd/m²): 500
    ►Frame Through Hole: No
    ►Touch Panel : Resistive Touchscreen

    Description

    This RGB 4.3-inch display has sufficient brightness and can provide brightness of 300nits, 500nits, 1000nits, 1500nits for indoor or outdoor use. In addition, thanks to IPS technology and 16 million colors, it looks great from any angle.
    This touchscreen display uses resistive touch sensing, making it an excellent choice for outdoor use. Raindrops will not be recorded as touch, and users can wear gloves.
    This touchless 4.3 inch monitor shares the same pin output as our resistive and capacitive touch displays.


    Product Information

    Product:4.3 Inch TFT Display
    Resolution:480x272
    Surface Luminance:500 Cd/m2 (nits)
    Viewing Direction:IPS, All Viewing Angles
    Interface:RGB
    Driver IC:ST7283
    Pin Number:40 Pins
    Touch Screen:No (RTP and CTP optional)
    Connection:ZIF FPC 46mm
    Operating Voltage:3.3V
    Operating Temp.:20℃ To +70℃
    Storage Temp.:-30℃ To +80℃
    LED Lifetime:40,000 Hours
    Compliance:REACH & RoHS Compliant

    4.3 Inch IPS 480*272 Pixel TFT LCD Display, RGB 4.3 Inch TFT Screen​ Product Drawing
    4.3 Inch IPS 480*272 Pixel TFT LCD Display ST7283 Driver IC All Viewing Angles


    Pin Definition

    No.Pin nameI/ODescription
    1LED-KILED Cathode
    2LED-AILED Anode
    3VSSIPower Ground
    4VDDIPower Source
    5- 12R00-R07IRED Data Signal (LSB)
    13-20G00-G07IGREEN Data Signal(LSB)
    21-28R00-R07IBLUE Data Signal(LSB)
    29VSSIPower Ground
    30DLCKIClock Signal to Sample each date
    31DISPIDisplay ON/OFF Signal
    32HSYNCIHorizontal Synchronizing Signal
    33VSYNCIVertical Synchronizing Signal
    34DEIInput Data enable control
    35NC-Set Open
    36GNDIPower Ground
    37XRITouch Panel PIN
    38YDITouch Panel PIN
    39XLITouch Panel PIN
    40YUITouch Panel PIN

    Maximum Absolute Limit

    ItemSymbolValueUnit
    Power supply voltage for logicVDD3.0-3.6V
    Input voltageVinVDD+0.3V
    Operating temperatureTopr-20 to 70°C
    Storage temperatureTstg-30 to 80°C
    DC Characteristics
    ItemSymbolMinTypeMaxUnitTest condition
    Operating voltageVDD3.03.33.6V-
    Supply currentIDD-TBD-mAVDD=3.3V,Ta=25°C
    Input voltageVIH0.7VDD-VDDV-
    VIL0-0.3VDDV
    Input leakage currentIIL-TBD-mAVIN=VDD or VSS

    Backlight Electrical-optical Characteristics

    ItemSymbolMINTYPMAXUNIT

    Test

    Condition

    Note
    Supply VoltageVf20.322.424VIf=20mA-
    Supply CurrentIf-20-mA--
    Reverse VoltageVr--5V-
    Power dissipationPd-448-mW-
    Luminous Intensity for LCM

    -

    -500-Cd/m2If=20mA-
    Uniformity for LCM-7075-If=20mA-
    Backlight ColorWhite

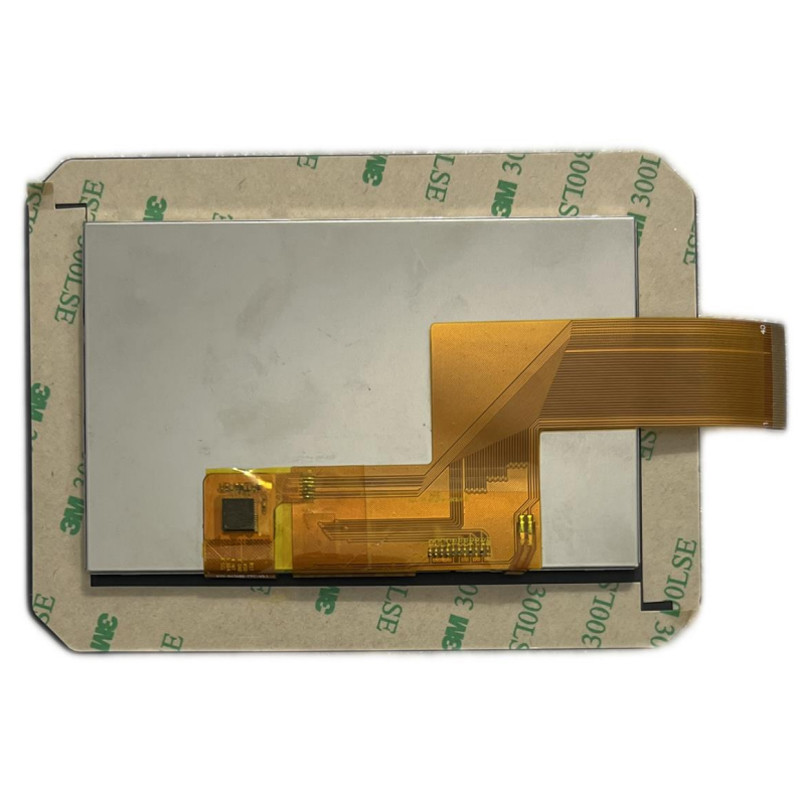

    4.3 Inch IPS 480*272 Pixel TFT LCD Display, RGB 4.3 Inch TFT Screen​ Product Image
    4.3 Inch IPS 480*272 Pixel TFT LCD Display ST7283 Driver IC All Viewing Angles

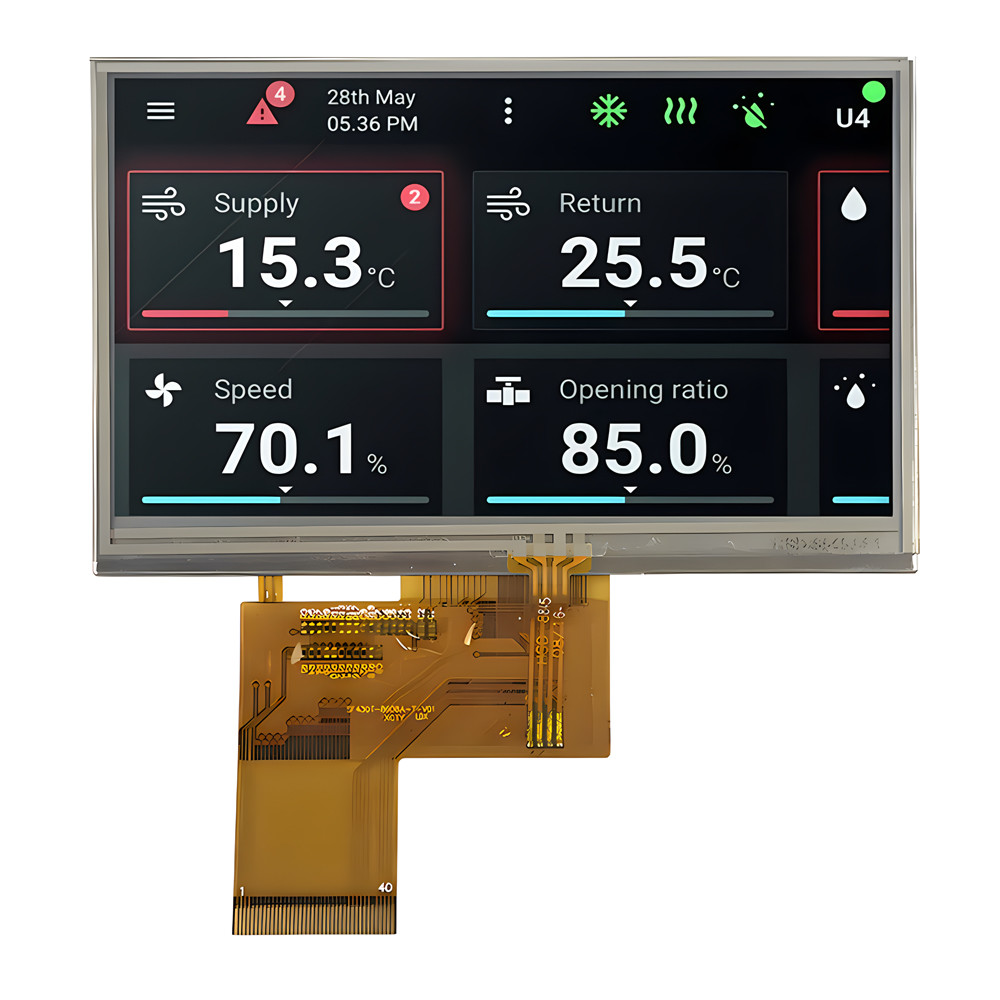

    ( with RTP optional )
    4.3 Inch IPS 480*272 Pixel TFT LCD Display ST7283 Driver IC All Viewing Angles

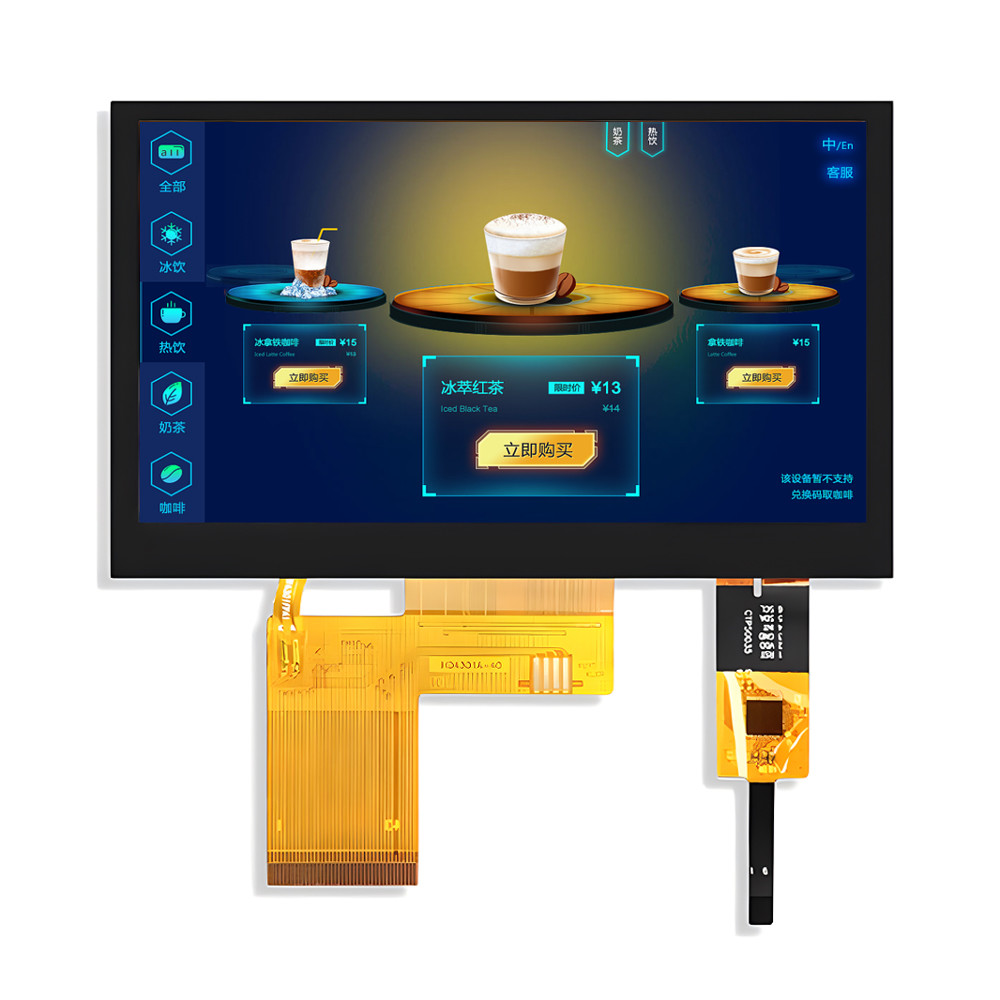

    ( with CTP optional)
    4.3 Inch IPS 480*272 Pixel TFT LCD Display ST7283 Driver IC All Viewing Angles

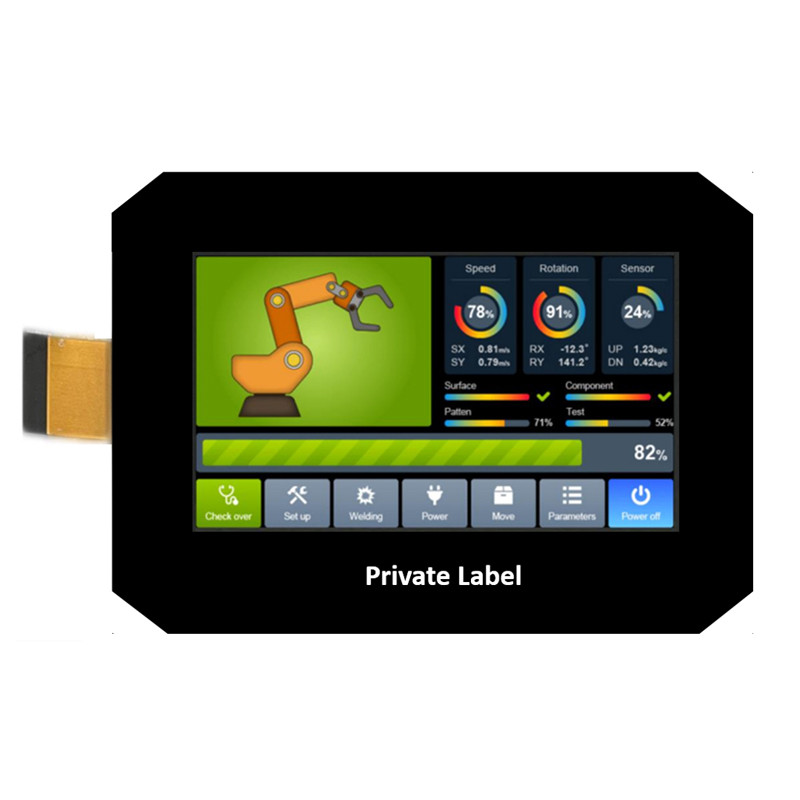

    ( with custom Touch Galss CTP )
    4.3 Inch IPS 480*272 Pixel TFT LCD Display ST7283 Driver IC All Viewing Angles4.3 Inch IPS 480*272 Pixel TFT LCD Display ST7283 Driver IC All Viewing Angles
