Factory Price 4.3 Inch 800x480 Dots PCAP TFT Display RGB Interface
Product Introduction
Product Quick Review
►4.3 inch TFT LCD Module, 4.3" TFT Module
►Resolution : 800×480 dots
►View Direction : IPS, All Viewing Angles
►Interface : RGB
►Operating Temp.: -30℃ To +80℃
►Driver IC:ST7262
►Control-Board : No
►Brightness (cd/m²): 450
►Frame Through Hole: No
►Touch Panel : Projected Capacitive Touch Screen (PCAP)
►Detect Point : 5 Fingers
Description
Saef Technology SFTO430HX-7011A-CT is a TFT LCD module with a
diagonal size of 4.3 inches landscape type and a resolution of
800x480pixels. This 4.3-inch LCD display module is equipped with an
ST7262 integrated circuit and supports MIPI interface. The power
supply voltage (Vdd) range of this 4.3-inch LCD monitor ranges from
3V to 3.6V (typical value of 3.3V). This 4.3-inch TFT module is IPS
type with a full view angle (85/85/85/85 max).
The SFTO430HX-7011A-CT display module is displayed with a
brightness of 450 nits. This 4.3-inch IPS TFT LCD can operate at
temperatures ranging from -30 ℃ to+80 ℃; Its storage temperature is
between -30 ℃ and+85 ℃. Whether used indoors or outdoors, this
4.3-inch IPS TFT LCD display can meet various display requirements.
It is a multifunctional and high-performance solution suitable for
industrial equipment, scanners, home automation, access control
systems, monitoring equipment, analyzers, security systems, garden
irrigation systems, and a wide range of applications.
Product Information
| Product: | 4.3" Inch Capacitive Touchscreen TFT |
| Resolution: | 800x480 Dots |
| Interface: | RGB |
| Surface Luminance: | 450 Cd/m2 |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| Operating Temp.: | -30℃ To +80℃ |
| Storage Temp.: | -35℃ To +85℃ |
| Driver IC: | ST7262 |
| Outline Dimensioin: | 105.5x67.2x4.52 (mm) |
| Touch Screen: | Capacitive Touch Panel Optional |
| Pin Number: | 40 Pins |
| Connection: | ZIF FPC |
| LED Lifetime: | 40,000 Hours |
| Compliance: | REACH & RoHS Compliant |
Factory Price 4.3 Inch 800x480 Dots PCAP TFT Display RGB Interface

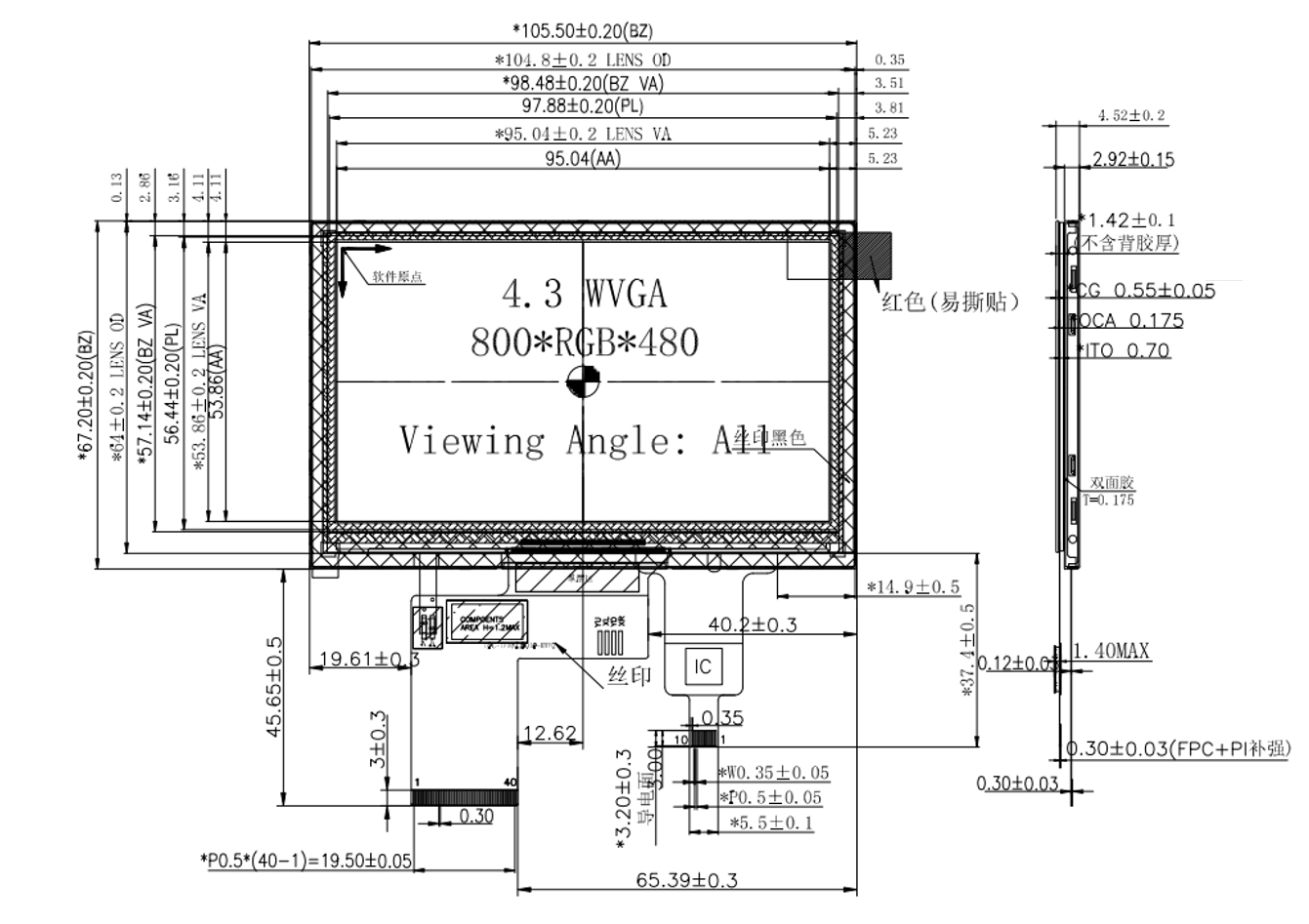

Product Drawing
Pin Definition
Pin1 LEDK Backlight cathode
Pin2 LEDA Backlight anode
Pin3 GND Ground
Pin4 VCC Analog Power Supply for LCM(3.3V )系统输入电压3.3V.
Pin5-12 R0-R7 Data bus
Pin13-20 G0-G7 Data bus
Pin21-28 B0-B7 Data bus
Pin29 GND Ground
Pin30 CLK Pixel clock signal in RGB I/F
Pin31 DISP Display
Pin32 HSYNC Horizontal sync . Signal in RGB I/F
Pin33 VSYNC Vertical sync . Signal in RGB I/F
Pin34 DEN Data enable signal in RGB I/F DE mode
Pin35 NC No Connection
Pin36 GND Ground
Pin37 XR TP XR
Pin38 YD TP YD
Pin39 XL TP XL
Pin40 YU TP YU
Capacitive Touchscreen Pin Definition
Pin1 VSS
Pin2 VDD
Pin3 SCL
Pin4 VSS
Pin5 SDA
Pin6 VSS
Pin7 /RST
Pin8 WAKE
Pin9 INT
Pin10 VSS
Factory Price 4.3 Inch 800x480 Dots PCAP TFT Display RGB Interface
Product Image
(Customized Case)
