0.87 Inch Slim OLED Display Module 128x32 Pixels I2C Interface
White Blue Text Product Introduction
Product Quick Review
►0.87 inch OLED
►Type: Graphic
►Structure: COG
►128 x 32 Dot Matrix
►IC:SSD1316
►3V Power supply
►1/32 duty
►Interface: I2C
►Display Color: White / Blue
►Connection: ZIF FPC
Description
SFOS087DY-7139AP OLED Display Module is a 128x32 resolution COG
graphic display, diagonal size 0.87 inch. The OLED model is
designed as industrial grade which is having the slim size and
dvantage of competitive price. The module is built-in with SSD1316
IC; it supports I2C interface. The supply voltage for logic is
2.8V, supply voltage for display is 9V, Operating Current for VDD
is 180μA, driving duty 1/32.
SFOS087DY-7139AP OEL Display Module can be operating at
temperatures from -40℃ to +80℃; its storage temperatures range from
-40℃ to +85℃. it is suitable for wearable device, smart home
applications and etc.
Product Information
| Product: | 0.87 Inch OLED Display Module |
| Number Of Pixels: | 128x32 Pixels |
| Interface: | I2C |
| Driver IC: | SSD1316 Or Equivalent |
| Pin Number: | 15 Pins ( Can Be Customized) |
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome (white) |
| Drive Duty: | 1/32 Duty |
| Panel Size: | 29 X 8.8 X 1.22 (mm) |
| Active Area: | 22.38 X 5.58 (mm) |
| Pixel Pitch: | 0.175 X 0.175 (mm) |
| Pixel Size: | 0.155 X 0.155 (mm) |
| Viewing Direction: | All Viewing Angles |
| Connection: | ZIF FPC |
| Life Time: | 50,000 Hours @60cd/m2 |
| Compliance: | REACH & RoHS Compliant |
Features
1. This 0.87-inch mini OLED display has a resolution of 128X32 and
features a SSD1316 chipset.
2. This 0.87-inch OLED display module has ultra-low power
consumption: full screen illumination 0.08w.
3. This micro OLED display 0.87 inch is ZIF type 11mm length, we
can customize FPC (length, interface, plugging type
connection,etc.) according to customer requirements.
4. This 0.87 inch 128x32 OLED product is designed for I2C
interface.
5. This 0.87 inch OLED display module has an infinite viewing angle
"up to 175 degrees"..
6. This OLED 0.87 inch 128x32 product is suitable for wearable
devices, smart home applications, etc.
7. This I2C OLED 0.87 inch product has a self-illuminating design,
no backlight is required, and the display can be self-illuminated;
It has high-contrast, bright and clear dots that are very readable
even in tiny fonts.
10. This 0.87-inch OLED display has a faster response time of "10
microseconds at +25 °C".
10.This 0.87 inch mono OLED product has high brightness and this
product has a contrast ratio of up to 2000:1.
11. This low cost 0.87 inch OLED product has lower power
consumption - reducing CO2 emissions.
0.87 Inch Slim OLED Display Module 128x32 Pixels I2C Interface
White/Blue Text Product Drawing
Pin Definition
Pin1, C2N / Pin2, C2P / Pin3, C1P / Pin4, C1N
Positive Terminal of the Flying Inverting Capacitor, Negative
Terminal of the Flying Boost Capacitor. The charge-pump capacitors
are required between the terminals. They must be floated when the
converter is not used.
Pin5, VDD2 VBAT
Power Supply for DC/DC Converter Circuit. This is the power supply
pin for the internal buffer of the DC/DC voltage converter.It must
be connected to external source when the converter is used. It
should beconnected to VDD when the converter is not used.
Pin6, VSS
Ground of Logic CircuitThis is a ground pin. It acts as a reference
for the logic pins. It must beconnected to external ground.
Pin7, VDD
Power Supply for Logic. This is a voltage supply pin. It must be
connected to external source.
Pin8, CS#
Pin9, RES#
Power Reset for Controller and Driver. This pin is reset signal
input. When the pin is low, initialization of the chip isexecuted.
Keep this pin pull high during normal operation.
Pin10, D/C
Pin11, SCLK
IIC Bus Clock Signal. The transmission if information in the I2C
bus is following a clock sigmal. Eachtransmission of data bit is
taken place during a single clock period of this pin.
Pin12, SDA
I2C Bus Data Signal. This pin acts as a communication channel
between the transmitter and the receiver.
Pin13, IREF
Current Reference for Brightness Adjustment. This pin is segment
current reference pin. A resistor should be connectedbetween this
pin and VSS. Set the current at 12.5uA maximum.
Pin14, VCOMH
Voltage Output High Level for COM Signal. This pin is the input pin
for the voltage output high level for COM signals. Acapacitor
should be connected between this pin and VSS.
Pin15, VCC
Power Supply for OEL Panel. This is the most positive voltage
supply pin of the chip. A stabilization capacitorshould be
connected between this pin and VSS when the converter is used.
Itmust be connected to external source when the converter is not
used.
Absolute Maximum Rating
Note 1: All the above voltages are on the basis of “VSS = 0V”.
Note 2: When this module is used beyond the above absolute maximum
ratings, permanent breakage of themodule may oPPur. Also, for
normal operations, it is desirable to use this module under
theconditions aPPording to Section 3. “Optics & Electrical
Characteristics”. If this module is usedbeyond these conditions,
malfunctioning of the module can oPPur and the reliability of the
modulemay deteriorate.
Note 3: The defined temperature ranges do not include the
polarizer. The maximum withstoodtemperature of the polarizer should
be 80°C.
Note 4: VPP = 7.5V, Ta = 25°C, 50% Checkerboard.Software
configuration follows Section 4.4 Initialization.End of lifetime is
specified as 50% of initial brightness reached. The average
operating lifetime atroom temperature is estimated by the
aPPelerated operation at high temperature conditions.
Optical Characteristics
* Optical measurement taken at VDD1 = 2.8V, VPP = 8.0V &
7.4V.Software configuration follows Section 4.4 Initialization.

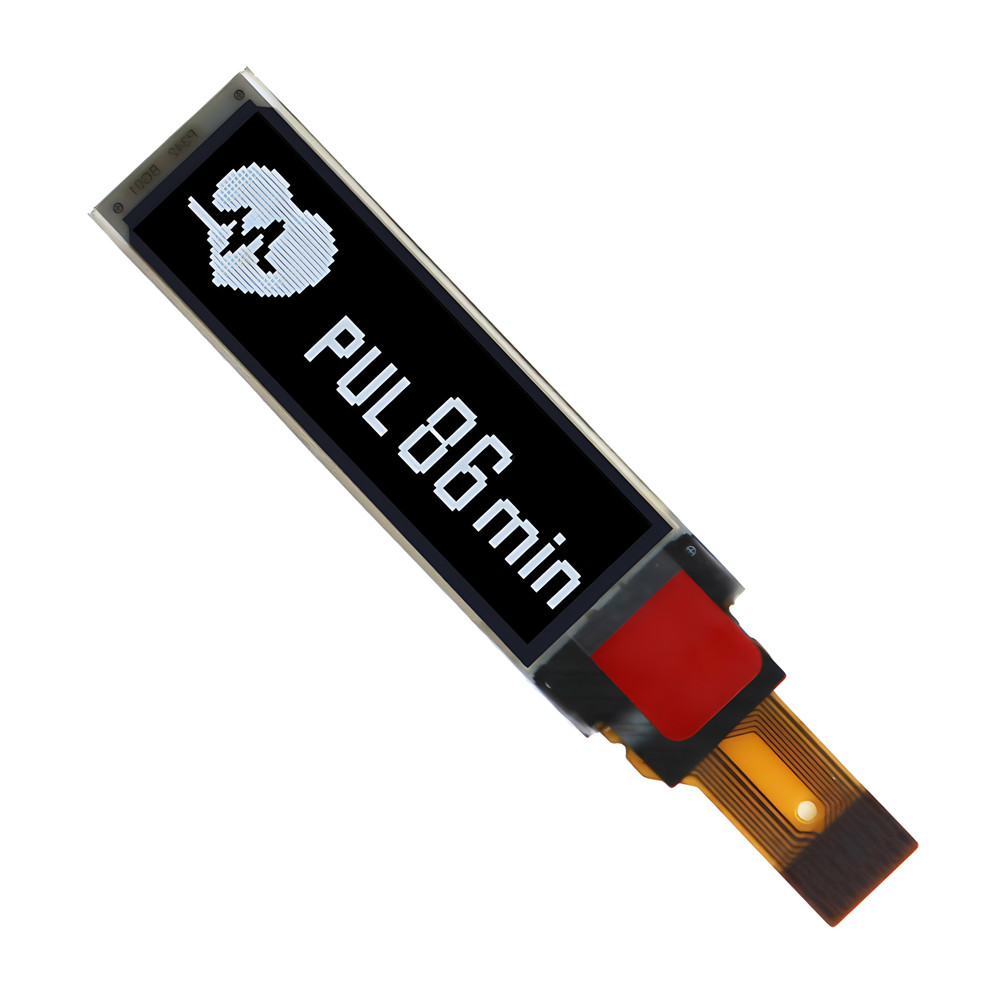

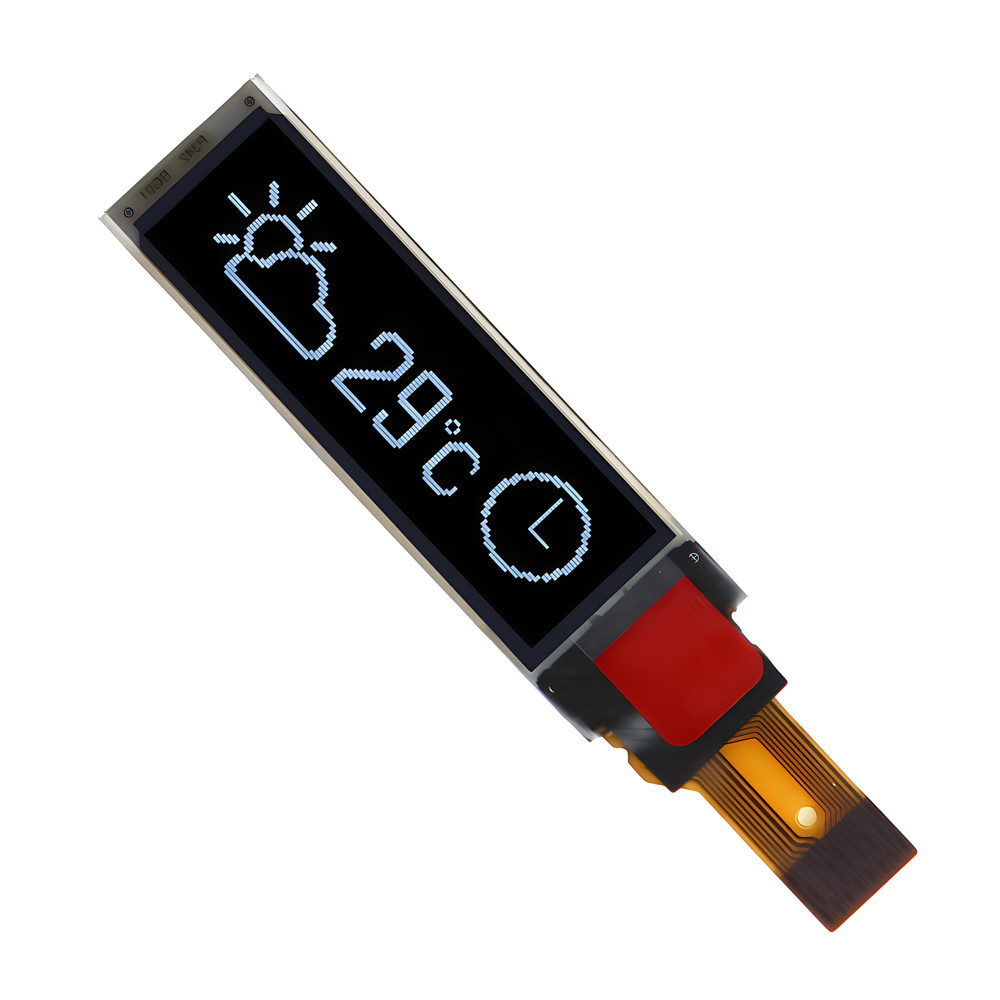

0.87 Inch Slim OLED Display Module 128x32 Pixels I2C Interface
