5 Inch TFT Display Manufacturer, Portrait Type 5 Inch PCAP TFT Display Introduction

Features

• This 5 inch TFT LCD display SF-TC500I-8725B-CT3 is a diagonal size of 5 inches and a resolution of 720x1280 pixels.
• This 5-inch LCD display module is equipped with an ILI9881C integrated circuit, which includes controller and driver IC functions, and supports MIPI interfaces.
• This 5 inch PCAP TFT display has the power supply voltage (Vdd) ranges from 2.6V to 3.3V (typical value of 2.8V).
• This 5 inch LCD screen is IPS type display with a full view angle 85/85/85/85 max.
• this 5 inch portrait TFT SF-TC500I-8725B-CT3 is displayed in portrait mode with a brightness of 300 nits, and can be customized to 1000 nits according to customer requirements.
• This 5-inch TFT display is equipped with a PCAP (projection capacitive) touch panel, featuring GT5688 IC, I2C interface, and 5-point touch technology, providing a responsive and user-friendly experience.
• This 5-inch PCAP TFT display screen can operate at temperatures ranging from -20 ℃ to+70 ℃; Its storage temperature is between -30 ℃ and+80 ℃.
• Whether used indoors or outdoors, this 5-inch TFT LCD display can meet various display requirements. It is a multifunctional and high-performance solution suitable for industrial equipment, scanners, home automation, access control systems, monitoring equipment, analyzers, security systems, garden irrigation systems, and a wide range of applications.

Product Information

5 Inch TFT Display Manufacturer, Portrait Type 5 Inch PCAP TFT Display Drawing

DC Characteristics

Note: Voltage greater than above may damage the module. All voltages are specified relative to VSS=0V.

Backlight Electrical-optical Characteristics

1. Uniformity = Min/Max * 100%

2. LED life time defined as follows:The final brightness is at 70% of original brightness;Measured Method: (X*Y: Light Area);

Optical Characteristics

Measure Conditions:1. Measure surrounding : dark room; 2. Ambient temperature: 25±2℃; 3. 30min.warm-up time.

TFT LCD Pin Definition

Pin1, LEDA LED Anode

Pin2, LEDK LED Cathode

Pin3, VCC Power Supply 2.8V

Pin4, IOVCC Power Supply 1.8V/2.8V Voltage

Pin5, GND Power Ground

Pin6, CLKP DSI-CLK+ clock signals

Pin7, CLKN DSI-CLK- clock signals

Pin8, GND Power Ground

Pin9, D0N DSI-D0- data signals

Pin10, D0P DSI-D0+ data signals

Pin11, GND Power Ground

Pin12, D1N DSI-D1- data signals

Pin13, D1P DSI-D1+ data signals

Pin14, GND Power Ground

Pin15, D2N NC DSI-D2- data signals

Pin16, D2P NC DSI-D2+ data signals

Pin17, GND Power Ground

Pin18, D3N NC DSI-D2- data signals

Pin19, D3P NC DSI-D2+ data signals

Pin20, GND Power Ground

Pin21, TE Power Supply 2.8V

Pin22, LCD_ID LCD_ID

Pin23, RESET Register select pin

Pin24, GND Power Ground

Pin25, GND Power Ground

CTP Pin definition

Pin1, GND

Pin2, SDA - 2.8V

Pin3, SCL - 2.8V

Pin4, VDD - 3.3V

Pin5, INT

Pin6, RST

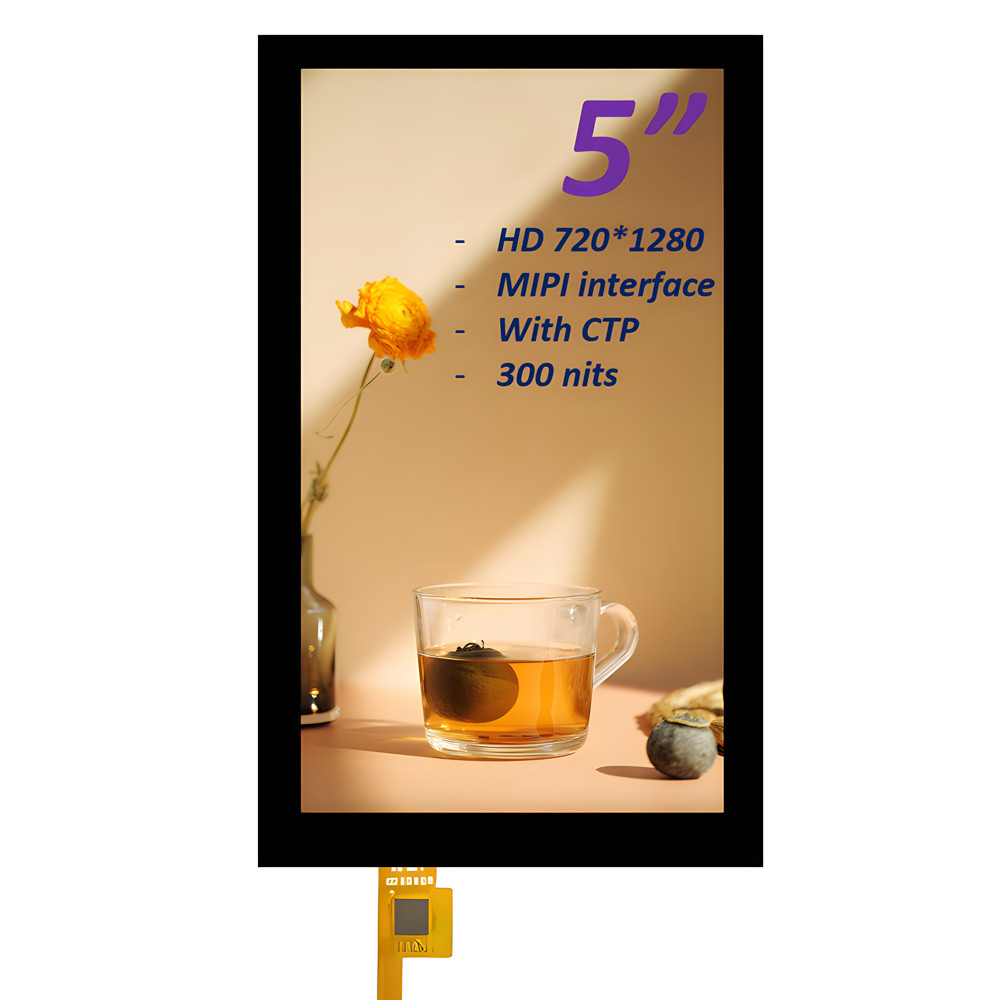

5 Inch TFT Display Manufacturer, Portrait Type 5 Inch PCAP TFT Display Image

Projected Capacitive (PCAP) Touch Screen

Projection capacitor (PCAP) touch technology provides fast and sensitive response and professional level reliability. Saef Technology's projection capacitive touch screen is designed specifically for rigorous industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.

Cover Glass:

1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF

Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
