5 Inch Capacitive TFT LCD Display, PCAP TFT 5 Inch 720*1280 Pixels
Display Product Introduction
Saef Technology SF-TC500I-8725B-CT3 is a TFT LCD module with a
diagonal size of 5 inches and a resolution of 720x1280 pixels. This
5-inch LCD display module is equipped with an ILI9881C integrated
circuit, which includes controller and driver IC functions, and
supports MIPI interfaces. The power supply voltage (Vdd) range of
this 5-inch LCD monitor ranges from 2.6V to 3.3V (typical value of
2.8V). The viewing direction of this 5-inch module is IPS type,
with a full view angle (85/85/85/85 max).
The SF-TC500I-8725B-CT3 TFT LCD display module is displayed in
portrait mode with a brightness of 300 nits, and can be customized
to 1000 nits according to customer requirements. This 5-inch TFT
display is equipped with a PCAP (projection capacitive) touch
panel, featuring GT5688 IC, I2C interface, and 5-point touch
technology, providing a responsive and user-friendly experience.
This 5-inch PCAP TFT display screen can operate at temperatures
ranging from -20 ℃ to+70 ℃; Its storage temperature is between -30
℃ and+80 ℃. Whether used indoors or outdoors, this 5-inch TFT LCD
display can meet various display requirements. It is a
multifunctional and high-performance solution suitable for
industrial equipment, scanners, home automation, access control
systems, monitoring equipment, analyzers, security systems, garden
irrigation systems, and a wide range of applications.
General Information
| Product: | 5 Inch TFT LCD Display |
| Resolution: | 720x1280 Dots |
| Interface: | MIPI |
| Viewing Direction: | IPS All Viewing Angle(85/85/85/85) |
| Touch Screen: | PCAP |
| PCAP Structure: | GFF |
| CTP Controller: | GT5688 |
| LCD Controller: | ILI9881C |
| Cover Glass Dimension: | Customizable |
| Connection: | ZIF FPC |
| Pin Number: | 25 Pins |
| Surface Luminance: | 300 Cd/m2(nits) |
| LED Lifetime: | 40,000 Hours |
| Compliance: | REACH & RoHS Compliant |
5 Inch Capacitive TFT LCD Display, PCAP TFT 5 Inch 720*1280 Pixels
Display Product Drawing
DC Characteristics
Note: Voltage greater than above may damage the module. All
voltages are specified relative to VSS=0V.

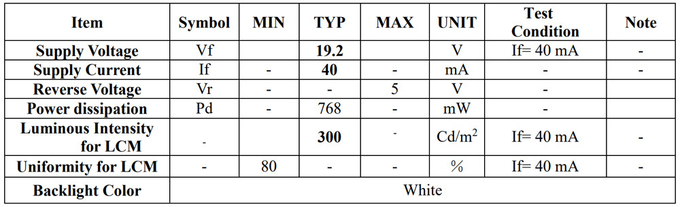

Backlight Electrical-optical Characteristics
1. Uniformity = Min/Max * 100%
2. LED life time defined as follows:The final brightness is at 70%
of original brightness;Measured Method: (X*Y: Light Area);
Optical Characteristics
Measure Conditions:1. Measure surrounding : dark room; 2. Ambient
temperature: 25±2℃; 3. 30min.warm-up time.
TFT LCD Pin Definition
Pin1, LEDA LED Anode
Pin2, LEDK LED Cathode
Pin3, VCC Power Supply 2.8V
Pin4, IOVCC Power Supply 1.8V/2.8V Voltage
Pin5, GND Power Ground
Pin6, CLKP DSI-CLK+ clock signals
Pin7, CLKN DSI-CLK- clock signals
Pin8, GND Power Ground
Pin9, D0N DSI-D0- data signals
Pin10, D0P DSI-D0+ data signals
Pin11, GND Power Ground
Pin12, D1N DSI-D1- data signals
Pin13, D1P DSI-D1+ data signals
Pin14, GND Power Ground
Pin15, D2N NC DSI-D2- data signals
Pin16, D2P NC DSI-D2+ data signals
Pin17, GND Power Ground
Pin18, D3N NC DSI-D2- data signals
Pin19, D3P NC DSI-D2+ data signals
Pin20, GND Power Ground
Pin21, TE Power Supply 2.8V
Pin22, LCD_ID LCD_ID
Pin23, RESET Register select pin
Pin24, GND Power Ground
Pin25, GND Power Ground
CTP Pin definition
Pin1, GND
Pin2, SDA - 2.8V
Pin3, SCL - 2.8V
Pin4, VDD - 3.3V
Pin5, INT
Pin6, RST
5 Inch Capacitive TFT LCD Display, PCAP TFT 5 Inch 720*1280 Pixels
Display Product Image
