0.96 Inch 30 Pin ZIF Connection OLED Thin Display 128x64 SPI I2C
Interface Product Introduction
SFTOS096XY-7128AP is a dot matrix 128x64 COG graphic type micro
OLED display module with a dimension of 0.96-inch diagonal. This
0.96 inch tiny OLED module panel size is 24.74 x 16.9 x 1.42 m.
This 0.96" micro OLED display has built-in IC SSD1315, supports SPI
and I2C interface and boasts high contrast ratio 10,000 : 1. Logic
supply voltage ranges from 2.8V-3.3V, the typical value is 3V. The
module operating temperature ranges from -40°C to +80°C; storage
temperature covers from -40°C to +85℃. The available emitting
colors are white, blue single color and blue/yellow dual colors.
Features and advantages
1. This tiny 0.96-inch OLED display module has ultra-low power
consumption: full screen illumination 0.08w.
2. This micro OLED display 0.96 inch is plugging type, we can
customize FPC (length, interface, plugging type
connection,etc.)according to customer requirements.
3. This 0.96 inch 128x64 OLED product supports SPI and IIC
interface.
4. This 0.96 inch micro OLED display module has an infinite viewing
angle "up to 175 degrees".
5. This SPI/IIC mini OLED 0.96 inch has a self-illuminating design,
no backlight is required, and the display can be self-illuminated;
It has high-contrast, bright and clear dots that are very readable
even in tiny fonts.
6. This 0.96-inch OLED display has a faster response time of "10
microseconds at +25 °C".
7.This 0.96 inch mono OLED product has high brightness and this
product has a contrast ratio of up to 2000:1.
8. This low cost 0.96 inch OLED product has lower power consumption
- reducing CO2 emissions.
9. This OLED 0.96-inch 128x64 screen is an ideal display for
consumer and industrial applications such as audio, automotive
control panels, medical devices, white goods, or home automation
products, among others.
Product information
| Product: | 0.96 Inch OLED Display |
| Display Color: | White, Blue, Blue/Yellow Dual Color |
| Number Of Pixels: | 128x64 Pixels |
| Driver IC: | SSD1315 Or Equivalent |
| Display Mode: | Passive Matrix |
| Drive Duty: | 1/64 Duty |
| Panel Size: | 24.74 X 16.9 X 1.42 (mm) |
| Active Area: | 21.74 X 10.86 (mm) |
| Pixel Pitch: | 0.17 X 0.17 (mm) |
| Pixel Size: | 0.15 X 0.154 (mm) |
| Interface: | I2C, SPI Optional |
| Pin Number: | 30 Pins (Can Be Customized) |
| Viewing Direction: | All Viewing Angles |
| Connection: | ZIF |
| Operating Temp.: | -40C - +70C |
| Storage Temp.: | -40C - +85C |
| Life Time: | 50,000 Hours @60cd/m2 |
| Compliance: | REACH & RoHS Compliant |
0.96 Inch 30 Pin ZIF Connection OLED Thin Display 128x64 SPI I2C
Interface Product Drawing
Pin Definition

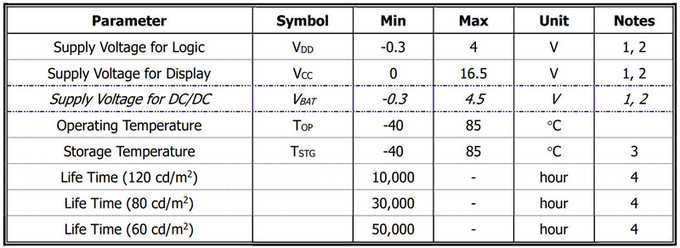

Absolute Maximum Rating

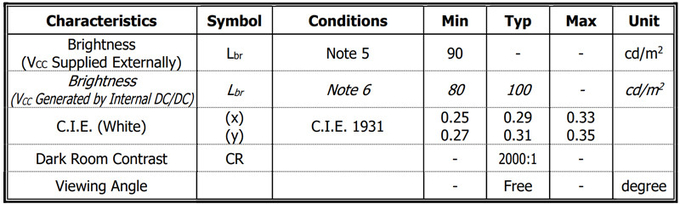

Optical Characteristics
* Optical measurement taken at VDD1 = 2.8V, VPP = 8.0V &
7.4V.Software configuration follows Section 4.4 Initialization.
Contents of Reliability Tests
0.96 Inch 30 Pin ZIF Connection OLED Thin Display 128x64 SPI I2C

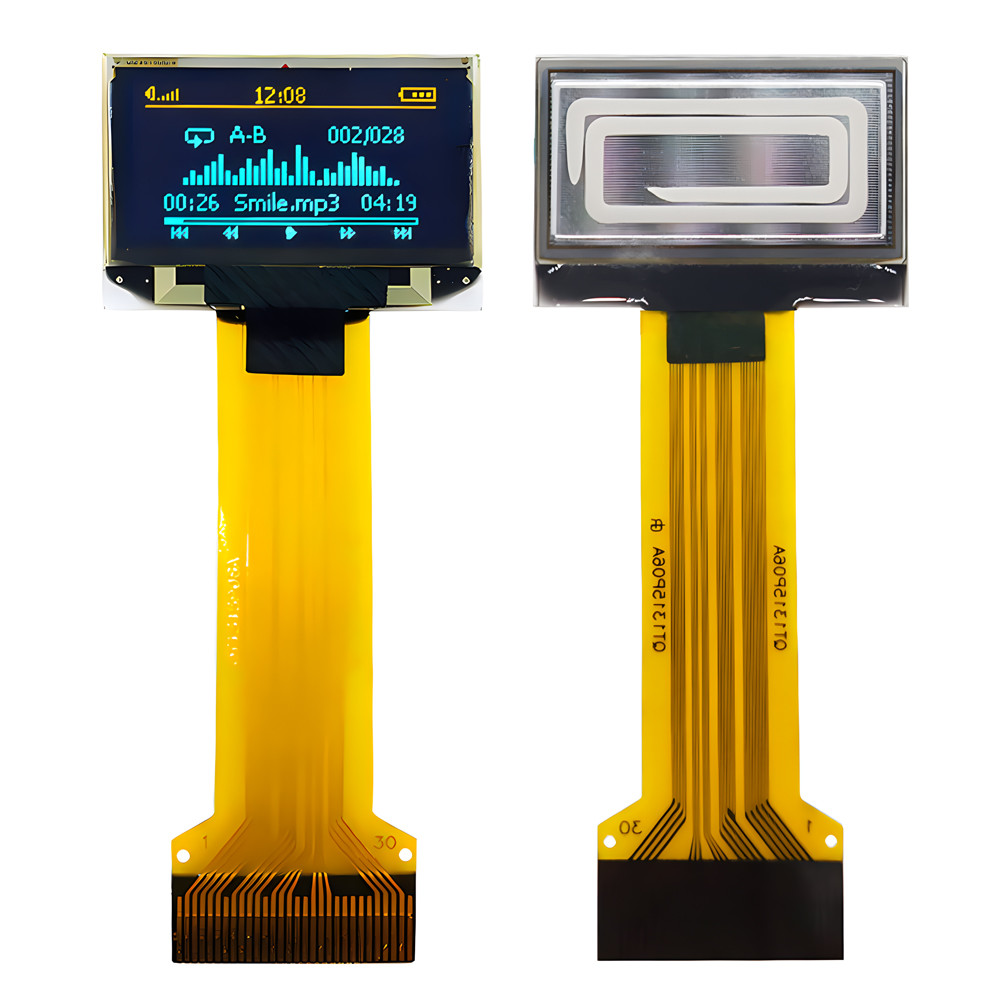

Interface Product Image
Contact Us
We love to hear about your projects, If you have any questions, we
can be reached at sales2@saef.com.cn
