1.3 Inch OLED Display Module 128x64 16 Pin ZIF Connection CH1116
Driver Product Introduction
SFOS130JY-7129AP is a beautiful white and blue monochrome 1.3 inch
128x64 Graphic OLED display module. This small OLED module is
designed with chip-on-glass technology, making it super thin only
1.4mm! and has over 50,000 hour lifetime!. The OLED model is
designed as industrial grade which is having the advantage of
competitive price. The module is built-in with CH1116G IC; it
supports SPI interface. The supply voltage for Logic is
2.8V(typical), ranging from 1.65 to 3.3V, and 12 volt for
displaying, operating current for VDD is 180μA, driving duty 1/64.
SFOS130JY-7129AP OEL display Module can be operating at
temperatures from -40℃ to +80℃.
| Product: | 1.3 Inch OLED Display Module |
| Number Of Pixels: | 128x64 Graphics |
| Display Mode: | Passive Matrix |
| Driver IC: | CH1116G Or Equivalent |
| Display Color: | Mono White and Mono Blue, Optional |
| Drive Duty: | 1/64 Duty |
| Panel Size: | 34.5 X 23.0 X 1.4 (mm) |
| Active Area: | 29.42 X 14.7 (mm) |
| Pixel Pitch: | 0.23 X 0.23(mm) |
| Pixel Size: | 0.21 X 0.21(mm) |
| Interface: | 8-bit 68XX/80XX, 3/4-wire SPI, I2C |
| Pin Number: | 16 Pins |
| Viewing Direction: | All Viewing Angles |
| Connection: | ZIF Connection |
| Life Time: | 50,000 Hours @60cd/m2 |
| Compliance: | REACH & RoHS Compliant |
Features
1. This 1.3-inch mini OLED display has a resolution of 128X64 and
features a CH1116 chipset.
2. This 1.3-inch OLED display module has ultra-low power
consumption: full screen illumination 0.08w.
3. This micro OLED display 1.3 inch is plugging type, we can
customize FPC (length, interface, plugging type
connection,etc.)according to customer requirements.
4. This 1.3 inch 128x64 OLED product is designed for SPI interface.
5. This 1.3 inch OLED display module has an infinite viewing angle
"up to 175 degrees".
6. This SPI/IIC OLED 1.3 inch product has a self-illuminating
design, no backlight is required, and the display can be
self-illuminated; It has high-contrast, bright and clear dots that
are very readable even in tiny fonts.
7. This 1.3-inch OLED display has a faster response time of "10
microseconds at +25 °C".
8.This 1.3 inch mono OLED product has high brightness and this
product has a contrast ratio of up to 2000:1.
9. This low cost 1.3 inch OLED product has lower power consumption
- reducing CO2 emissions.
10. This OLED 1.3 inch 128x64 product is suitable for wearable
devices, smart home applications, etc.
1.3 Inch OLED Display Module 128x64 16 Pin ZIF Connection CH1116

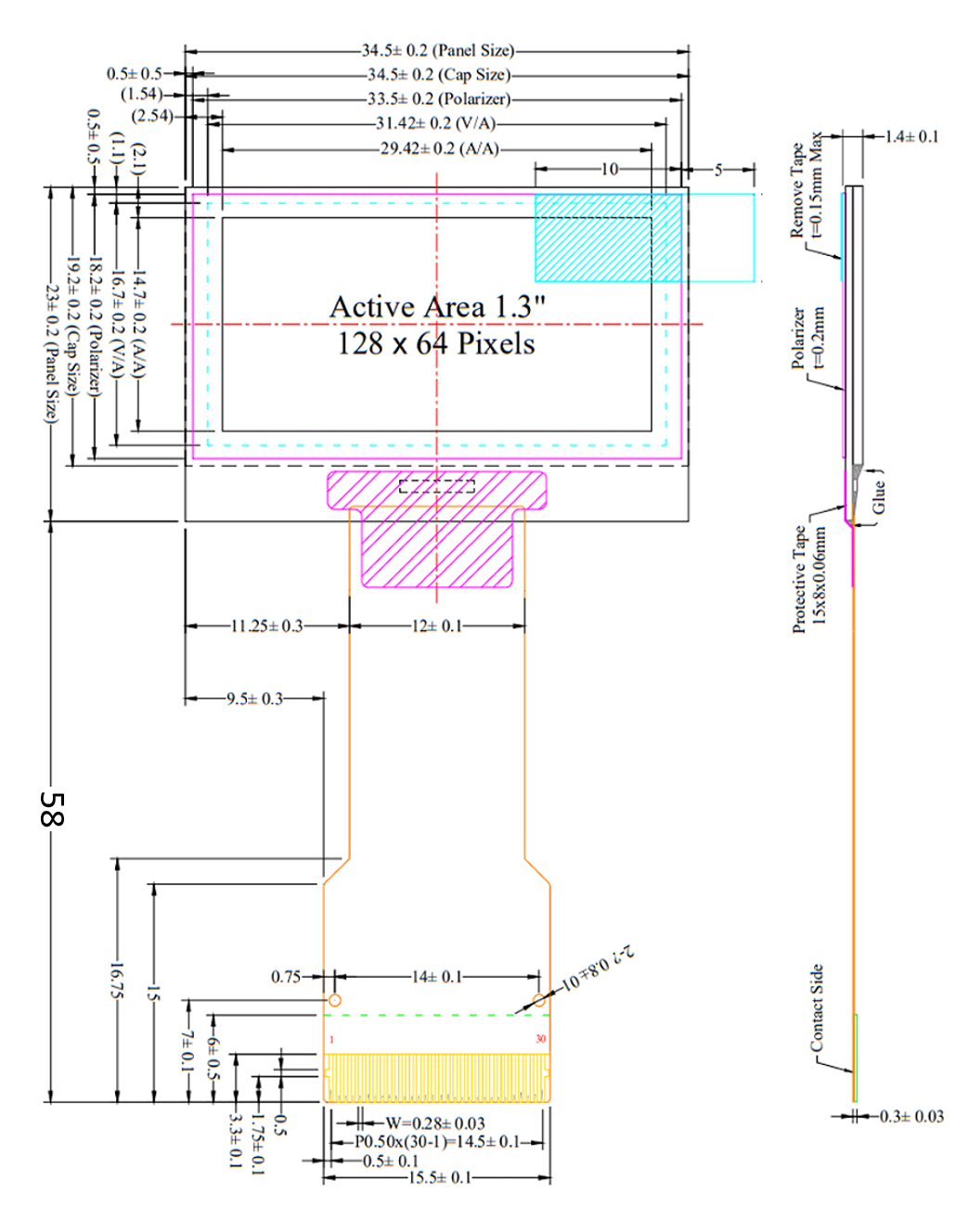

Driver Product Drawing
