SFOS130JY-7130AP.pdf
1.3 inch monochrome OLED display module 128x64 pixel Product Drawing Product Introduction
SFOS130JY-7130AP OLED Display Module is a 128x64 resolution COG
graphic display, diagonal size 1.3 inch. The OLED model is designed
as industrial grade which is having the advantage of competitive
price. The module is built-in with CH1116G IC; it supports 8-bit
68XX/80XX Parallel, 3/4-wire SPI, I2C interface. The supply voltage
for Logic is 4V, supply voltage for display is 14V, operating
current for VDD is 180μA, driving duty 1/64. SFOS130Y-7130AP OEL
Display Module can be operating at temperatures from -40℃ to +80℃;
its storage temperatures range from -40℃ to +80℃.
| Product: | 1.3 Inch OLED Display Module |
| Number Of Pixels: | 128x64 Graphics |
| Display Mode: | Passive Matrix |
| Driver IC: | CH1116G Or Equivalent |
| Display Color: | Mono White, Blue, Optional |
| Drive Duty: | 1/64 Duty |
| Panel Size: | 34.5 X 23.0 X 1.4 (mm) |
| Active Area: | 29.42 X 14.7 (mm) |
| Pixel Pitch: | 0.23 X 0.23(mm) |
| Pixel Size: | 0.21 X 0.21(mm) |
| Interface: | 8-bit 68XX/80XX, 3/4-wire SPI, I2C |
| Pin Number: | 30 Pins |
| Viewing Direction: | All Viewing Angles |
| Connection: | Plug-in Connection |
| Life Time: | 50,000 Hours @60cd/m2 |
| Compliance: | REACH & RoHS Compliant |
Features
1. This 1.3-inch mini OLED display has a resolution of 128X64 and
features a CH1116 chipset.
2. This 1.3-inch OLED display module has ultra-low power
consumption: full screen illumination 0.08w.
3. This micro OLED display 1.3 inch is plugging type, we can
customize FPC (length, interface, plugging type
connection,etc.)according to customer requirements.
4. This 1.3 inch 128x64 OLED product is designed for 8-bit
68XX/80XX, 3/4-wire SPI, I2C interface.
5. This 1.3 inch OLED display module has an infinite viewing angle
"up to 175 degrees"..
6. This OLED 1.3 inch 128x64 product is suitable for wearable
devices, smart home applications, etc.
7. This SPI/IIC OLED 1.3 inch product has a self-illuminating
design, no backlight is required, and the display can be
self-illuminated; It has high-contrast, bright and clear dots that
are very readable even in tiny fonts.
10. This 1.3-inch OLED display has a faster response time of "10
microseconds at +25 °C".
10.This 1.3 inch mono OLED product has high brightness and this
product has a contrast ratio of up to 2000:1.
11. This low cost 1.3 inch OLED product has lower power consumption
- reducing CO2 emissions.
1.3 inch monochrome OLED display module 128x64 pixel Product Drawing
Pin Definition
Absolute Maximum Ratings
Note 1: All the above voltages are on the basis of “VSS = 0V”.
Note 2: When this module is used beyond the above absolute maximum
ratings, permanent breakage of themodule may occur. Also, for
normal operations, it is desirable to use this module under
theconditions according to Section 3. “Optics & Electrical
Characteristics”. If this module is usedbeyond these conditions,
malfunctioning of the module can occur and the reliability of the
modulemay deteriorate.
Note 3: The defined temperature ranges do not include the
polarizer. The maximum withstoodtemperature of the polarizer should
be 80°C.
Note 4: VCC = 12.0V, Ta = 25°C, 50% Checkerboard.Software
configuration follows Section 4.4 Initialization.End of lifetime is
specified as 50% of initial brightness reached. The average
operating lifetime atroom temperature is estimated by the
accelerated operation at high temperature conditions.
Optics Characteristics
DC Characteristics

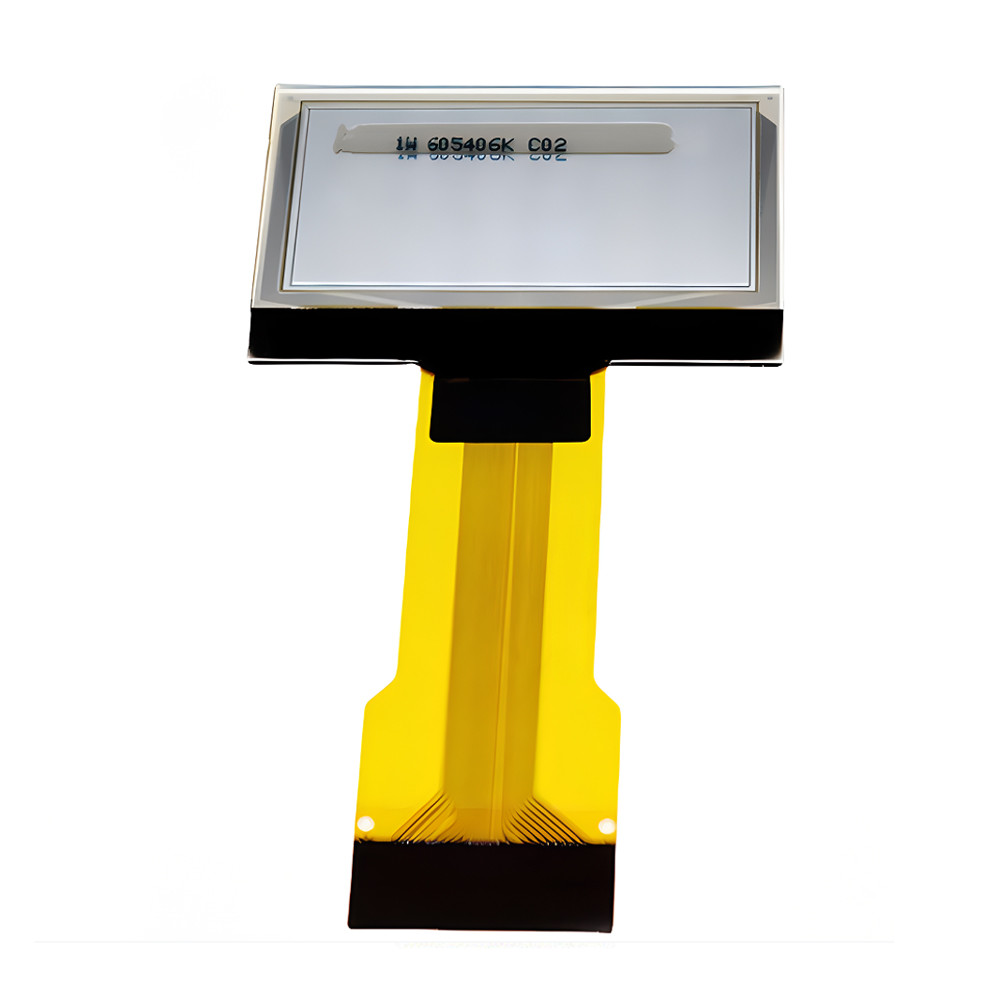

1.3 inch monochrome OLED display module 128x64 pixel Product Drawing Product Image
Factory Facilities and Certificates
SAEF Technology's graphic OLED display are available in three
mechanical structures include COB, COG and TAB passive matrix
technology. Available graphic monochrome OLED resolution in 50x16
OLED graphic display, 64x128 OLED, 100x16 OLED, 100x32 graphic
OLED, 200x16 graphic OLED, OLED 128x32, OLED display 128x64, OLED
128x128, and 256x64 OLED Display. The graphic OLED display in the
SAEF product range have on-board controllers and interfaces include
parallel, serial, and I2C OLED, SPI OLED. These OLED display
modules have driven voltages of 3V, or 5V depending on
resolution/color.
SAEF offers a wide range of OLED display modules in sizes from
0.42" to 5.5" OLED, such as 0.42" micro OLED Display, 0.49" OLED
Display, 0.66" mini OLED Display, 0.69" OLED, 0.77" OLED, 0.87"
OLED, 0.91" OLED Display, 0.95" OLED, 0.96" OLED Display, 1.3" OLED
Display, 1.5" OLED Display, 2" OLED , 2.4" OLED , 2.7" OLED
Display, 5.5" OLED Display, and custom design solutions.
