0.96 Inch OLED Display 128x64 Ｗhite/Blue/Yellow/Yellow Blue Product Introduction
Monochrome OLED display refers to an OLED display that can only
display one color, such as white, blue, and yellow. These three
colors are quite common and popular among most users. In addition,
on this display screen, we can also provide a dual color display of
yellow and blue, which also provides users with a good visual
experience.
The SFOS096XZ-7127AP OLED display module is a 128x64 resolution COG
graphic display with a diagonal size of 0.96 inches. The OLED model
is designed as industrial grade and has a price competitive
advantage. This module has a built-in SSD1315 IC; It supports I2C
and SPI interfaces. The logic power supply voltage is 2.8V, the
display power supply voltage is 9V, the VDD operating current is
160 μ A, and the driving duty cycle is 1/64.
The SFOS096XZ-7127AP OEL display module is suitable for wearable
devices, smart home applications, and more. This module can operate
at temperatures ranging from -40 ℃ to+70 ℃; Its storage temperature
range is -40 ℃ to+85 ℃.
Features
| Product: | 0.96 inch plugging connection OLED Display |
| Number Of Pixels: | 128x64 Pixels |
| Driver IC: | SSD1315 Or Equivalent |
| Display Mode: | Passive Matrix |
| Display Color: | white, blue, yellow and dual color(yellow/blue) |
| Drive Duty: | 1/64 Duty |
| Active Area: | 21.74 X 11.175 (mm) |
| Panel Size: | 24.7 X 16.6 X 1.3 (mm) |
| Pixel Pitch: | 0.17 X 0.175 (mm) |
| Pixel Size: | 0.15 X 0.15 (mm) |
| Interface: | I2C, SPI Optional |
| Viewing Direction: | All Viewing Angles |
| Connection: | Plug-in |
| Pin Number: | 30 Pins (Can Be Customized) |
| Operating Temp.: | -40C - +70C |
| Storage Temp.: | -40C - +85C |
| Life Time: | 50,000 Hours @60cd/m2 |
| Compliance: | REACH & RoHS Compliant |
0.96 Inch OLED Display 128x64 Ｗhite/Blue/Yellow/Yellow Blue Product Drawing
Interface Pin Definition
| No | Symbol | Description |
| 1 | NC | No connection. |
| 2 | C1N | CXP/CXN-Pin for charge pump capacitor;Connect to each other with a
capacitor |
| 3 | C1P |
| 4 | C2P |
| 5 | C2N |
| 6 | VBAT | Power supply for charge pump regulator circuit. |
| 7,10 | NC | No connection |
| 8 | VSS | This is a ground pin |
| 9 | VDD | Power supply pin for core logic operation. |
| 11 | BS1 |
MCU bus interface selection pins. |
| 12 | BS2 |
| 13 | CS | This is the chip select input.(active LOW) |
14 | RES | Reset signal input.when the pin is pulled LOW,initialization of the
chip is excute. Keep this pin HIGH(i.e connect to VDD)during normal
operation |
15 | A0 | This is Data/Command control pin. When it is pulled HIGH (i.e.
connect to VDD), the data at D[7:0] is treated as data. When it is pulled LOW, the data at D[7:0] will be transferred to
the command register. In I2C mode, this pin acts as SA0 for slave address selection. When 3-wire serial interface is selected, this pin must be
connected to VSS. |
16 | WR | This is read / write control input pin connecting to the MCU
interface. When 8080 interface mode is selected, this pin will be the Write
(WR#) input. Data write operation is initiated when this pin is
pulled LOW and the chip is selected. |
17 | RD | When connecting to an 8080-series microprocessor, this pin receives
the Read (RD#) signal. Readoperation is initiated when this pin is
pulled LOW and the chip is selected. When serial or I2C interface is selected, this pin must be
connected to VSS. |
18 ~25 | D0 ~D7 | These are 8-bit bi-directional data bus to be connected to the
microprocessor’s data bus. When serial interface mode is selected,
D0 will be the serial clock input: SCLK; D1 will be the serialdata
input: SDIN and D2 should be kept NC. When I2C mode is selected,
D2, D1 should be tied together and serve as SDAout, SDAin in
application and D0 is the serial clock input, SCL. |
26 | IREF | This is segment output current reference pin. When external IREF is used, a resistor should be connected between
this pin and VSS to maintain the IREF current at 30uA. When internal IREF is used, this pin should be kept NC. |
27 |
VCOMH | The pin for COM signal deselected voltage level. A capacitor should be connected between this pin and VSS.Com |
28 | VCC | Power supply for panel driving voltage. This is also the most
positive power voltage supply pin.When charge pump is enabled, a
capacitor should be connected between this pin and VSS. |
| 29,30 | NC | No connection |
DC Characteristics
| Items | Symbol | Min. | Typ. | Max. | Unit |
Supply Voltage | Logic Supply Voltage IC | VDD | 1.65 | 3.0 | 3.5 | V |
| Charge Pump Regulator Supply VoltageIC | VBAT | 3.0 | 3.3 | 4.5 | V |
Operating(for OLED panel) | VCC | 7.0 | 7.5 | 8.0 | V |
Input Voltage | High Voltage | VIH | 0.8 x VDD | - | VDD | V |
| Low Voltage | VIL | 0 | - | 0.2 x VDD | V |
Output Voltage | High Voltage | VOH | 0.9 x VDD | - | VDD | V |
| Low Voltage | VOL | VSS | - | 0.1 x VDD | V |
Electro-Optical Characteristics
| Items | Symbol | Min. | Typ. | Max. | Unit | Remark |
| Operating Luminance | L | 50 | 65 | - | cd /m2 | All pixels ON |
| Power Consumption | P | - | 50 | 60 | mW | 30% pixels ON |
| Frame Frequency | Fr | - | 105 | - | Hz | - |
Color Coordinate | Blue | CIE x | 0.11 | 0.15 | 0.19 |
CIE1931 | Darkroom |
| CIE y | 0.21 | 0.25 | 0.29 |
Response Time
| Rise | Tr | - | 10 | - | us | - |
| Decay | Td | - | 10 | - | us | - |
| Contrast Ratio | Cr | 10000:1 | - | - | - | Darkroom |
| Viewing Angle | θ | 160 | - | - | Degree | - |
| Operating Life Time | Top | 22000 | - | - | Hours | L= 65 cd/m2 |

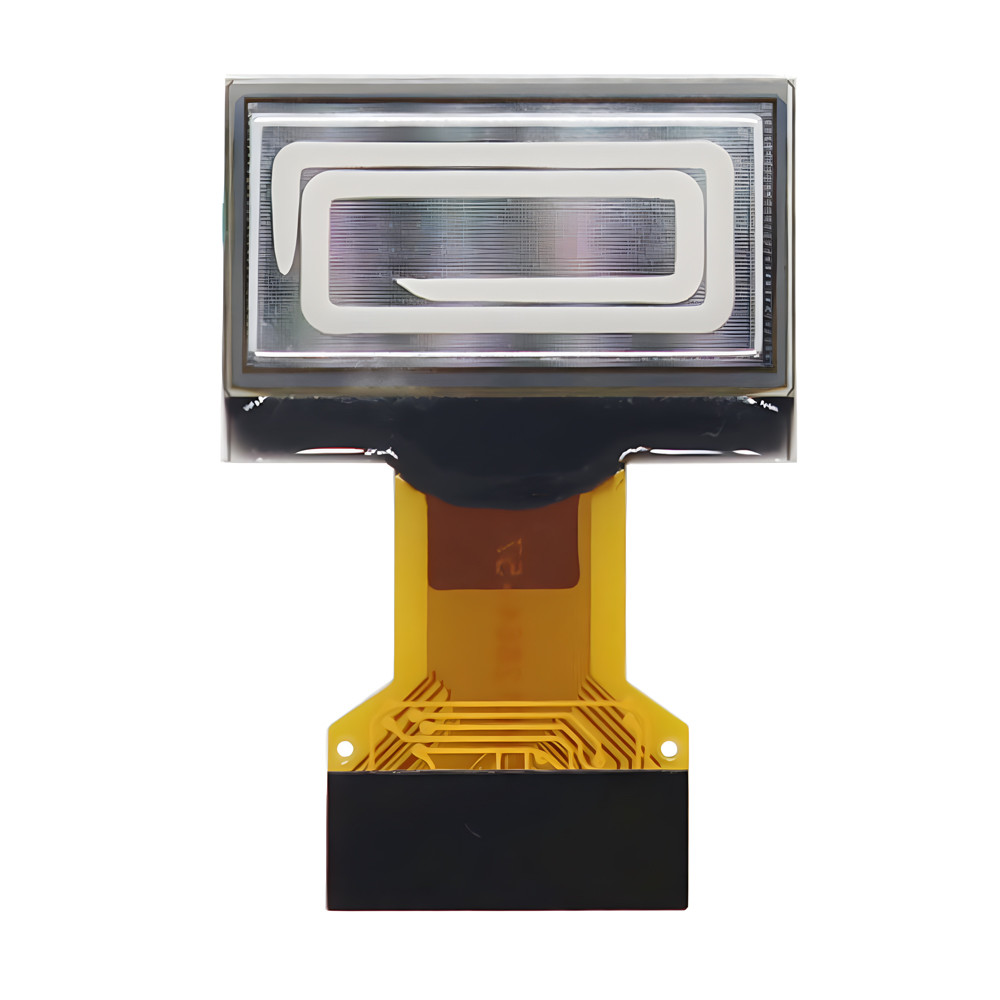

0.96 Inch OLED Display 128x64 Ｗhite/Blue/Yellow/Yellow Blue Product Image
