    Resistive Touchscreen TFT LCD 2.8 Inch 12 O' Clock 240*320 Pixels RGB&MCU Interface

    Ask Lasest Price
    Brand Name : SAEF
    Model Number : SF-TC280P-9413B-T
    Certification : ISO9001 / ISO14000
    Price : Negotiable based on order lot quantity
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 3000K pcs per month
    Delivery Time : 3-5 weeks
    • Product Details
    • Company Profile

    Resistive Touchscreen TFT LCD 2.8 Inch 12 O' Clock 240*320 Pixels RGB&MCU Interface

    240x320 2.8" Resistive Touchscreen TFT LCD


    Product Quick Review


    • Product Model No. SF-TC280P-9413B-T
    • LCD Diagonal: 2.8”
    • Resolution: 240x320
    • Viewing Angle: 12 O’clock
    • Outline Dimension: 50.0*69.2*3.5
    • Driver IC: ILI9341V
    • Interface Type: RGB/MPU 18Bit
    • Touch Panel: Resistive Touch Panel
    • Temperature: Top -20°C to +70°C; Tst -30°C to +80°C

    Description


    SF-TC280P-9413B-T is TFT LCD module is a 2.8 inch diagonal size, 240xRGBx320, full color TFT LCD display. This TFT LCD module supports RGB/MCU 18Bit Interface and it is having module dimension of 50.0 x 69.2 x 3.5mm and Active area size of 43.2 x 57.6 mm; SF-TC280P-9413B-T LCD TFT is integrated with ILI9341V controller on module, and its logic supply voltage ranges from 2.6V to 3.3V.


    SF-TC280P-9413B-T is portrait mode LCD module, with 350 cd/m2 luminance. If you would like to use it as landscape mode or increase the luminance, please contact with us for more technical support. This 2.8" TFT LCD Module works well for signal analyzers, bench top laboratory equipment, security system, home automation, mini audio player, baby monitor, and other handhold devices.



    240x320 2.8" Resistive Touchscreen TFT LCD Drawing

    Resistive Touchscreen TFT LCD 2.8 Inch 12 O' Clock 240*320 Pixels RGB&MCU InterfaceResistive Touchscreen TFT LCD 2.8 Inch 12 O' Clock 240*320 Pixels RGB&MCU Interface


    PIN Description


    NO.PIN NAMEI/ODescription
    1LED-KILED Cathode
    2LED-A1ILED Anode
    3LED-A2ILED Anode
    4LED-A3ILED Anode
    5LED-A4ILED Anode
    6IM0ISystem interface select. Note.1
    7IM1
    8IM2
    9IM3
    10RESETIReset pin
    11VSYNCIVertical synchronizing signal in RGB interface
    12HSYNCIHorizontal synchronizing signal in RGB interface
    13DOTCLKIDot clock signal for RGB interface operation
    14DEIData enable signal for RGB interface operation
    15-32DB0-DB17I/O18bit- Parallel data
    33SDOI/OSerial Output signal
    34SDII/OThe Data is outputted on the falling edge of the SCL signal
    35RDIRead strobe signal input pin
    36WRIWrite strobe signal input pin
    37D/CX(SCL)I

    This pin is used serial interface clock in 3-wrie 9-bit/

    4-wrie 8-bit serial data interface

    38CSXIChip select signal
    39TEO

    Tearing effect output pin to synchronize MPU to frame

    writing, activated by S/W command.

    40IOVCCIPower Supply1.8V/ 2.8V Voltage
    41IOVCCIPower Supply1.8V/ 2.8V Voltage
    42VCCIPower Supply 2.8V Voltage
    43GND-Ground
    44XRITouch Panel input signal
    45YDITouch Panel input signal
    46XLITouch Panel input signal
    47YUITouch Panel input signal
    48GND-Ground
    49GND-Ground
    50GND-Ground

    Absolute Maximum Ratings


    ItemSymbolValueUnit
    Power supply voltage for logicVDD2.6~3.3V
    Input voltageVinVDD+0.3V
    Operating temperatureTopr-20 to 70°C
    Storage temperatureTstg-30 to 80°C

    DC Characteristics (VDD=2.8V,Ta=25°C)


    ItemSymbolMinTypeMaxUnitTest condition
    Operating voltageVDD2.62.83.3V-
    Supply currentIDD--5mAVDD=2.8V,Ta=25°C
    Input voltageVIH0.8VDD-VDDV-
    VIL0-0.2VDDV
    Input leakage currentIIL-1.0-1.0mAVIN=VDD or VSS

    Backlight Electrical-optical Characteristics


    ItemSymbolMINTYPMAXUNIT

    Test

    Condition

    Note
    Supply VoltageVf3.03.23.4VIf=80 mA-
    Supply CurrentIf-80-mA--
    Reverse VoltageVr--5V-
    Power dissipationPd-256-mW-
    Luminous Intensity for LCM

    -

    280320350Cd/m2If=80mA-
    Uniformity for LCM-80--If=80mA-
    Backlight ColorWhite

    Touch screen panel specifications


    ItemSymbolMin.Type.Max.unitRemark
    TransParency--82-%JIS K-7105
    Haze--1-%JIS K-7105
    Hardness Of Surface--3-H150gf 45°
    FPC Peeling Strength-5-NUpward 90°
    FPC Bending--3-cycleR=1.0, 90°
    Input Force--50gf-
    Rated VoltageV touch7VDC
    X-axis ResistanceRx150550FPC PIN
    X-axis ResistanceRy300900
    Linearity--±1.5±2.0%-
    Chattering---20ms-
    Insulation ResistanceRi10---
    Notes Life-1,00,000--Times-
    Input Life-1,000,000--Times-

    Optical Characteristics


    No.ITEMSymbolConditionsSpecificationUnitNote
    MinTypMax
    1Response TimeTr+Tf25℃-15-Ms(1)(2)
    2Transmittance (With PL)T(%)--7.1---
    3Contrast RateCr

    θ=0,

    Normal viewing angle

    -500--(1)(3)
    4

    Viewing

    Angle


    Hor.θRCR>10-60-Deg-
    θL-60-
    Ver.Θ+-45-
    Θ--60-

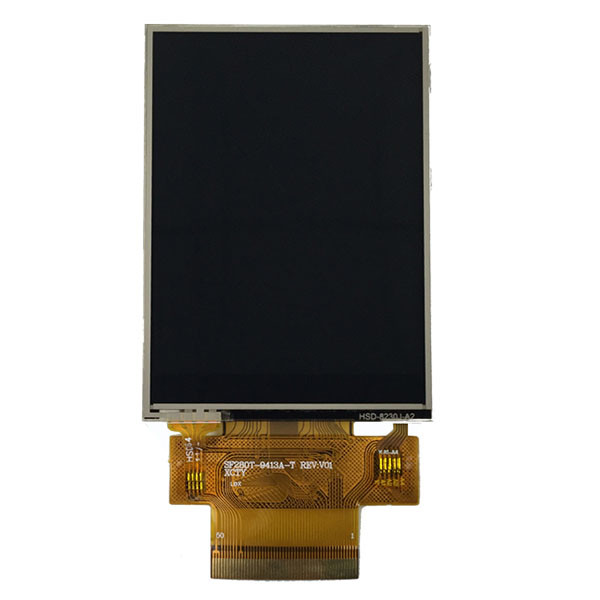

    240x320 2.8" Resistive Touchscreen TFT LCD Product Image

    Resistive Touchscreen TFT LCD 2.8 Inch 12 O' Clock 240*320 Pixels RGB&MCU InterfaceResistive Touchscreen TFT LCD 2.8 Inch 12 O' Clock 240*320 Pixels RGB&MCU Interface

    Resistive Touchscreen TFT LCD 2.8 Inch 12 O' Clock 240*320 Pixels RGB&MCU Interface
