2.8 Inch TFT LCD Display 240x320 Dots TN SPI Interface Product Introduction

Product Quick Review

• Model No. SF-TC280P-8722B-N
• Resolution : 240x320 dots
• View Direction : 12H
• Controller IC: ILI9341V
• Brightness (cd/m²): 500
• Touch Panel : without, (With RTP&CTP optional)

Description

SF-TC280P-8722B-N is a 2.8 inch portrait mode SPI TFT-LCD module featuring a resolution 240x320 pixels. SF-TC280P-8722B-N lcd module is built-in with ILI9341V IC; it supports SPI interface; its operating voltage(Vdd) range from 2.6V to 3.3V, typical value 2.8V. This module view direction is 12 o'clock and contrast ratio 400:1.

SF-TC280P-8722B-N is Portrait mode TFT-LCD featured with brightness 500 nits (typical value). SF-TC280P-8722B-N can be operated at temperatures from -20°C to +70°C, its storage temperatures range from -30°C to +80°C. It is ideal for security door system, mini audio player, baby monitor, and other handhold devices.

2.8 Inch TFT LCD Display 240x320 Dots TN SPI Interface Product Drawing

PIN Description

Absolute Maximum Ratings

DC Characteristics (VDD=2.8V,Ta=25°C)

Backlight Electrical-optical Characteristics

Optical Characteristics

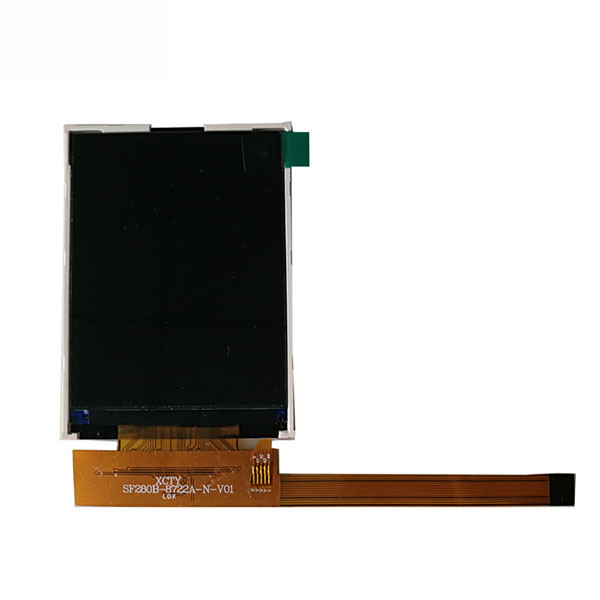

2.8 Inch TFT LCD Display 240x320 Dots TN SPI Interface Product Image
