1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface

Product Quick Review (SFOM154YZ4-12864WB-01 Specification.pdf)

►Model No.SFOM154YZ4-12864WB-01

►Type : 1.54" Graphic OLED
►Structure : COG+PCB
►128x64 dots
►IC:SSD1309
►5V Power supply
►1/64duty
►Interface: SPI, I2C
►Display Color: White / Blue

When you need an OLED small display with much brighter, much higher contrast, wider viewing angles and lower current consumption, the SAEF display OLED COB graphic item no. SFOM154YZ4-12864WB-01 is a good choose. This 1.54” OLED module is built-in SSD1309 IC which has outline dimension of 47.0(L) X 43.0(W) X 13.8(T) mm and visible portion of the OLED measures 1.54" diagonal and contains 128x64 pixels. It is able to communicate using SPI and I2C interface.

Product Features

Product:	1.54" Inch OLED Screen
Resolution:	128x64 Dots Resolution
Interface:	I2C
Display Mode:	Passive Matrix Display
Optics:	All Viewing Angles
Outline Dim.:	47.0(L) X 43.0(W) X 13.8(T) Mm
Active Area:	35.06(L) X 17.52(W) Mm
Pixel Pitch:	0.274 X 0.274 Mm
Driving Method:	1/64 Duty Cycle
Operating Temp:	-40°C To +70°C ( Customizable )
Storage Temp.:	-40°C To +85°C
Pin Number:	4 Header Pins,
Driver IC:	SSD1309 Or Equivalent
Compliance:	REACH & RoHS Compliant

1.54 inch OLED Graphic Display Product Drawing

1.54 Inch Graphic OLED Display SSD1309 128x64 Dots Resolution I2C Interface

Schematic Diagram

Interface Pin Function

No.	Symbol	Function
1	GND	Ground
2	VCC	Power supply input.
3	SCL	When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI).
4	SDA

DC Characteristics

Characteristics	Symbol	Conditions	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD		1.65	2.8	3.3	V
Supply Voltage for Display	VCC		11.5	12	12.5	V
High Level Input	VIH		0.8×VDD	-	-	V
Low Level Input	VIL		-	-	0.2×VDD	V
High Level Output	VOH	IOUT = 100μA, 3.3MHz	0.9×VDD	-	-	V
Low Level Output	VOL	IOUT = 100μA, 3.3MHz	-	-	0.1×VDD	V
VDD Supply Current VDD =2.8V, VCC = 12, IREF = 10uA , No Panel attached, Display ON, All ON,	IDD	Contrast = FFh	-	90	110	μA
VCC Supply Current VDD = 2.8V, VCC =12, IREF =10uA, No Panel attached, Display ON, All ON	ICC	Contrast = FFh	-	450	580	μA
Segment Output Current, VDD = 2.8V, VCC =12V, IREF=10uA, Display ON.	ISEG	Contrast=FFh	280	310	340	μA
		Contrast=AFh	-	215	-
		Contrast=7Fh	-	155	-
		Contrast=3Fh	-	78	-
		Contrast=0Fh	20		-
Sleep Mode Current for VDD	IDD, SLEEP	VDD = 1.65V~3.3V, VCC = 7V~16V Display OFF, No panel attached	-	-	10	μA
Sleep Mode Current for VCC	ICC, SLEEP	VDD = 1.65V~3.3V, VCC = 7V~16V Display OFF, No panel attached	-	-	10	μA

Electrical Specifications

Characteristics	Symbol	Conditions	Min	Typ	Max	Unit
Normal mode current consumption		All pixels on	-	17	25	mA
Standby mode current consumption		Standby mode 10% pixels on	-	0.5	1.5	mA
Normal mode power consumption		All pixels on	-	71.5	97.5	mW
Standby mode power consumption		Standby mode 10% pixels on	-	6.5	19.5	mW
Brightness	Lbr	-	90	110	-	cd/m2
C.I.E. (White)	(x) (y)	C.I.E. 1931	0.24 0.28	0.28 0.32	0.32 0.36
Dark Room Contrast	CR	-	2000:1	-	-
Viewing Angle		-	160	-	-	degree

I2C Interface Timing Characteristics

Symbol	Description	Min	Max	Unit
tcycle	Clock Cycle Time	2.5	-	μs
tHSTART	Start Condition Hold Time	0.6	-	μs
tHD	Data Hold Time (for “SDAOUT” Pin)	0	-	ns
tHD	Data Hold Time (for “SDAIN” Pin)	300	-	ns
tSD	Data Setup Time	100	-	ns
tSSTART	Start Condition Setup Time (Only relevant for a repeated Start condition)	0.6	-	μs
tSSTOP	Stop Condition Setup Time	0.6	-	μs
tR	Rise Time for Data and Clock Pin		300	ns
tF	Fall Time for Data and Clock Pin		300	ns
tIDLE	Idle Time before a New Transmission can Start	1.3	-	μs

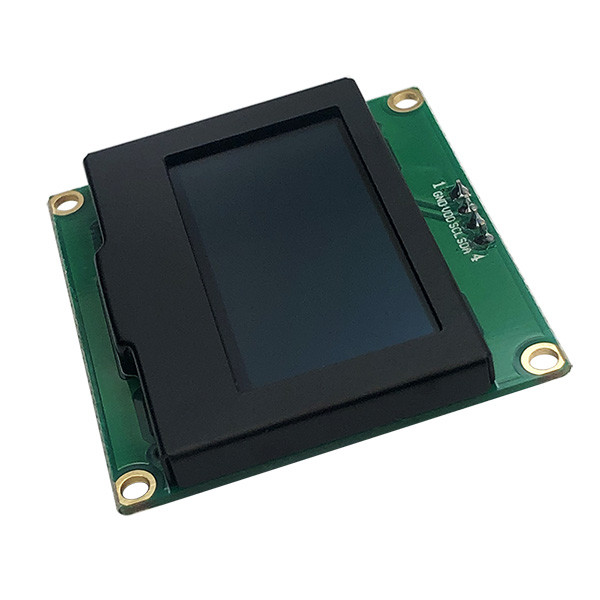

1.54 inch OLED Graphic Display Product Image
