Product Quick Review

• Model No.SFTM130JY-7152AN
• Type : 1.3" TFT LCD (1.33")
• Structure : COG+PCB
• 240x240 dots
• IC:ST7789V
• 2.5V ~ 3.3V Power supply
• Interface: SPI Serial Interface
• Display Color: Full Color 65K

Product Features

1.3 inch TFT LCD Display with 7-Pin SPI PCB Product Drawing



Schematic Diagram



Interface Pin Function

Absolute Maximum Ratings



Operating Conditions

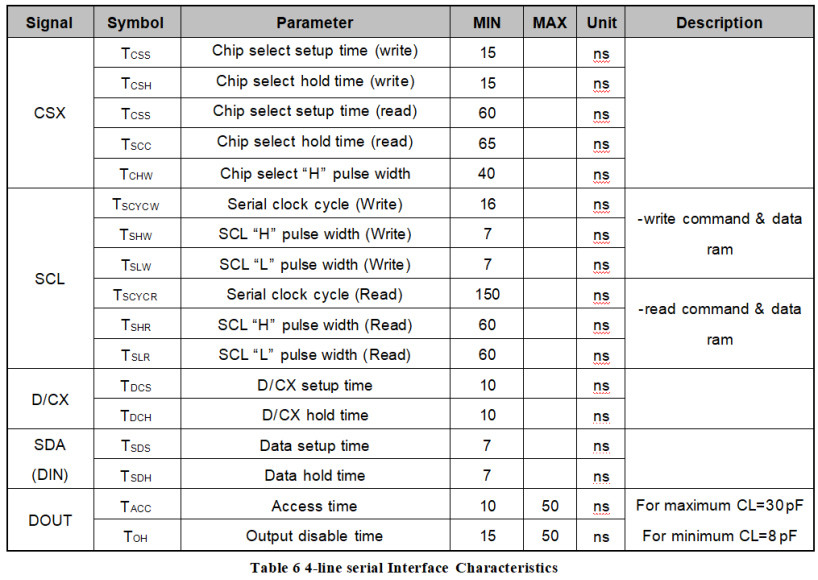

AC Characteristics



1.3 inch TFT LCD Display with 7-Pin SPI PCB Product Image

Founded in 2007, ShenZhen SAEF Technology Co., Ltd is committed to manufacturing and developing high-quality products for industrial LCD display, including TFT LCD, OLED, monochrome TN/STN/FSTN LCM display modules and system integration solutions. Saef Technology has become a leading enterprise in the field of small and medium size displays, and its continuous innovation has enable it to obtain a number of invention patents in the display field. With more than 14 years of experience, providing competitive products and services through stable product quality and professional pre-sales and after-sales service, SAEF technology has won the recognition of many international big brand companies and established long-term and stable cooperation with them.

Saef Technology is an ISO9001 and environmental ISO 14001 certified manufacturer. We provide 1 to 10 years warranty for all the company’s products. We are not only a display manufacturer but also a solution partner for our customers.

As a leading manufacturer in the display module market, Saef Technology will continue to focus on the research and development of new technologies such as TFT, OLED display, embedded systems integration solutions, and we will continue to provide customers display products with high cost performance.
