480x854 IPS 4.3 Inch TFT LCD Display Module NT35512 MIPI interface

Capacitive Touchscreen TFT LCD display module 4.3" MIPI interface Product Introduction

Product Quick Review

Model No. SF-TC430H-8579A-CT
480x854 dots resolution
IPS, all viewing angles
Surface Brightness: 250 cd/m2
Driver IC: NT35512
Interface: MIPI
Capacitive Touchscreen

Description

SF-TC430H-8579A-CT is a 4.3 inch TFT-LCD display featuring a resolution of 480x854 pixels and 250 cd/m2 brightness. This module uses NT35512 controller IC supporting MIPI interfaces. The module dimension of the display is 63.5(W) x 108(H) x 3.1(T) mm, and the active area is 53.57(W) x 95.3(H) mm. Its supply voltage range for analog is 2.6V to 3.3V; the typical value is 2.8V.

This display module uses an IPS screen, which allows users to see the display clearly at wide angles. The SF-TC430H-8579A-CT module can operate at temperatures from -20°C to +70°C; its storage temperatures range from -30°C to +80°C.

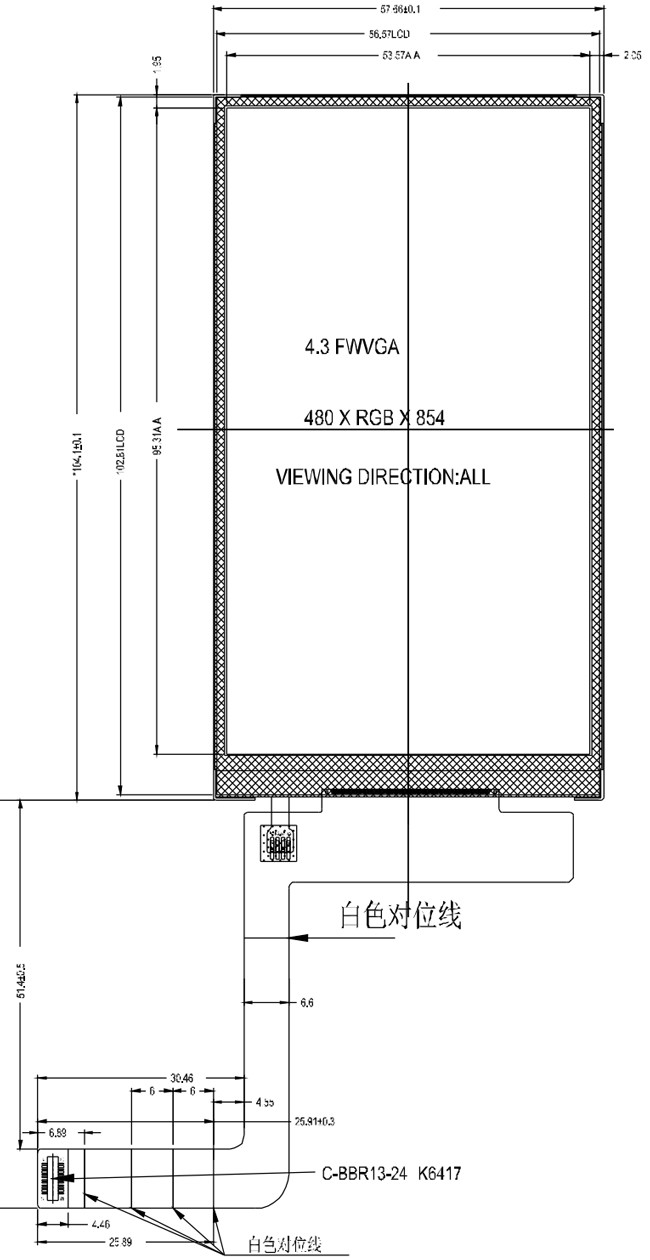

4.3 inch Portrait IPS 480x854 dots Capacitive Touchscreen TFT LCD Drawing

480x854 IPS 4.3 Inch TFT LCD Display Module NT35512 MIPI interface

PIN Description

NO.	PIN NAME	I/O	Description
1	MIPI_TCN	I	DSI-CLK- clock signals
2	MIPI_TCP	I	DSI-CLK+ clock signals
3	GND	I	Ground
4	MIPI_TDN0	I	DSI-D0- data signals
5	MIPI_TDP0	I	DSI-D0+ data signals
6	GND	I	Ground
7	MIPI_TDP1	I	DSI-D1+ data signals
8	MIPI_TDN1	I	DSI-D1- data signals
9	GND	I	Ground
10	NC	-	-
11	NC	-	-
12	GND	I	Ground
13	NC	-	-
14	NC	-	-
15	GND	I	Ground
16	VDD18_PMU	I	Power Supply 1.8V-2.8V
17	NC	-	-
18	LRSTB	I	Register select pin
19	NC	-	-
20	LPTE	I	Tearing effect output
21	VDD28_PMU	I	Power Supply 2.8V
22	GND	I	Ground
23	VLED_P	O	LED Anode
24	VLED_N	O	LED Cathode

Maximum Absolute Limite

Item	Symbol	Value	Unit
Power supply voltage for logic	VDD	1.6~3.3	V
Input voltage	Vin	VDD+0.3	V
Operating temperature	Topr	-20 to 70	°C
Storage temperature	Tstg	-30 to 80	°C

DC Characteristics

Item	Symbol	Min	Type	Max	Unit	Test condition
Operating voltage	VDD	2.6	2.8	3.3	V	-
Supply current	IDD	-	-	5	mA	VDD=2.8V,Ta=25°C
Input voltage	VIH	0.8VDD	-	VDD	V	-
Input voltage	VIL	0	-	0.2VDD	V	-
Input leakage current	IIL	-1.0	-	1.0	mA	VIN=VDD or VSS

Backlight Electrical-optical Characteristics

Item	Symbol	MIN	TYP	MAX	UNIT	Test Condition	Note
Supply Voltage	Vf	-	16	-	V	If=40 mA	-
Supply Current	If	-	40	-	mA	-	-
Reverse Voltage	Vr	-	-	5	V	-
Power dissipation	Pd	-	-	-	mW	-
Luminous Intensity for LCM	-		250	-	Cd/m2	If=40mA	-
Uniformity for LCM	-	80	-	-	％	If=40 mA	-
Backlight Color	White

Optical Characteristics

No.	ITEM		Symbol	Conditions	Specification			Unit	Note
No.	ITEM		Symbol	Conditions	Min	Typ	Max	Unit	Note
1	Response Time		Tr+Tf	25℃	-	12	-	Ms	(1)(2)
2	Transmittance (Without PoL)		T(%)	-	-	14.74	-	-	-
3	Contrast Rate		Cr	θ=0, Normal viewing angle	-	500	-	-	(1)(3)
4	Viewing Angle	Hor.	θR	CR>10	-	80	-	Deg	-
		Hor.	θL		-	80	-
		Ver.	Θ+		-	80	-
		Ver.	Θ-		-	80	-

4.3 inch Portrait IPS 480x854 dots Capacitive Touchscreen TFT LCD Product Image
