Graphic OLED 0.49 inch with 4 header pin SSD1315 Support I2C
Interface Product Introduction
Product Quick Review
►Model No. SFOM049JY-6432WB
►Size: 0.49 inch
►Type: Graphic
►Structure: COG+PCB
►64x32 Dot Matrix
►IC:SSD1315 Or Equivalent
►3V Power supply
►1/32 duty
►Interface: I2C
►Display Color: White / Yellow
Description
SFOM049JY-6432WB is a 0.49 inch Graphic OLED display which is
having COG structure with PCB board, made of 64x32 pixels. This
module is built in with SSD1315 IC support I2C Interface, supply
voltage for Logic 3V, 1/32 duty cycle. SFOM049JY-6432WB module can
be operating at temperatures from -40℃ to +80℃; its storage
temperatures range from -40℃ to +85℃. This module is suitable for
industrial device, smart home application, portable device, health
device, meter device, etc. SFOM049JY-6432WB module supports
internal Charge Pump supply and external VCC supply.
Features
| Product: | 0.49 Inch IIC OLED 4 header pins |
| Number Of Pixels: | 64x32 Graphics |
| Driver IC: | SSD1315 Or Equivalent |
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome (white) |
| Drive Duty: | 1/32 Duty |
| Panel Size: | 15 X 15 X 2.42 (mm) |
| Active Area: | 11.18 X 5.58 (mm) |
| Pixel Pitch: | 0.175 X 0.175 (mm) |
| Pixel Size: | 0.155 X 0.155 (mm) |
| Viewing Direction: | All Viewing Angles |
| Interface: | I2C |
| Connection: | Soldering/Hotbar (customizable) |
| Pin Number: | 4 Pins |
| Life Time: | 50,000 Hours @60cd/m2 |
| Compliance: | REACH & RoHS Compliant |
Graphic OLED 0.49 inch with 4 header pin SSD1315 Support I2C
Interface Product Drawing
Interface Pin Function
| No. | Symbol | Function |
|---|
| 1 | GND | Ground |
| 2 | VCC | Power supply input. |
| 3 | SCL | When the I2C interface is selected, then D0 serves as the serial
clock input pad (SCL) and D1 serves as the serial data input pad
(SDAI). |
| 4 | SDA
|
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
|---|
| Supply Voltage for Logic | VCC | 0 | 4.0 | V |
| Supply Voltage for Display | VCC1 | 0 | 16.0 | V |
| Operating Temperature | TOP | -40 | +80 | °C |
| Storage Temperature | TSTG | -40 | +85 | °C
|
Electronical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Supply Voltage for Logic | VCC | － | 2.8 | 3.0 | 3.2 | V |
| Input High Volt. | VIH | － | 0.8×VDD | － | VDDIO | V |
| Input Low Volt. | VIL | － | 0 | － | 0.2×VDD | V |
| Output High Volt. | VOH | － | 0.9×VDD | － | VDDIO | V |
| Output Low Volt. | VOL | － | 0 | － | 0.1×VDD | V |
| 50% check Board operating Current | ICC | VCC1=7.5V | － | 13.0 | 26.0 | mA
|

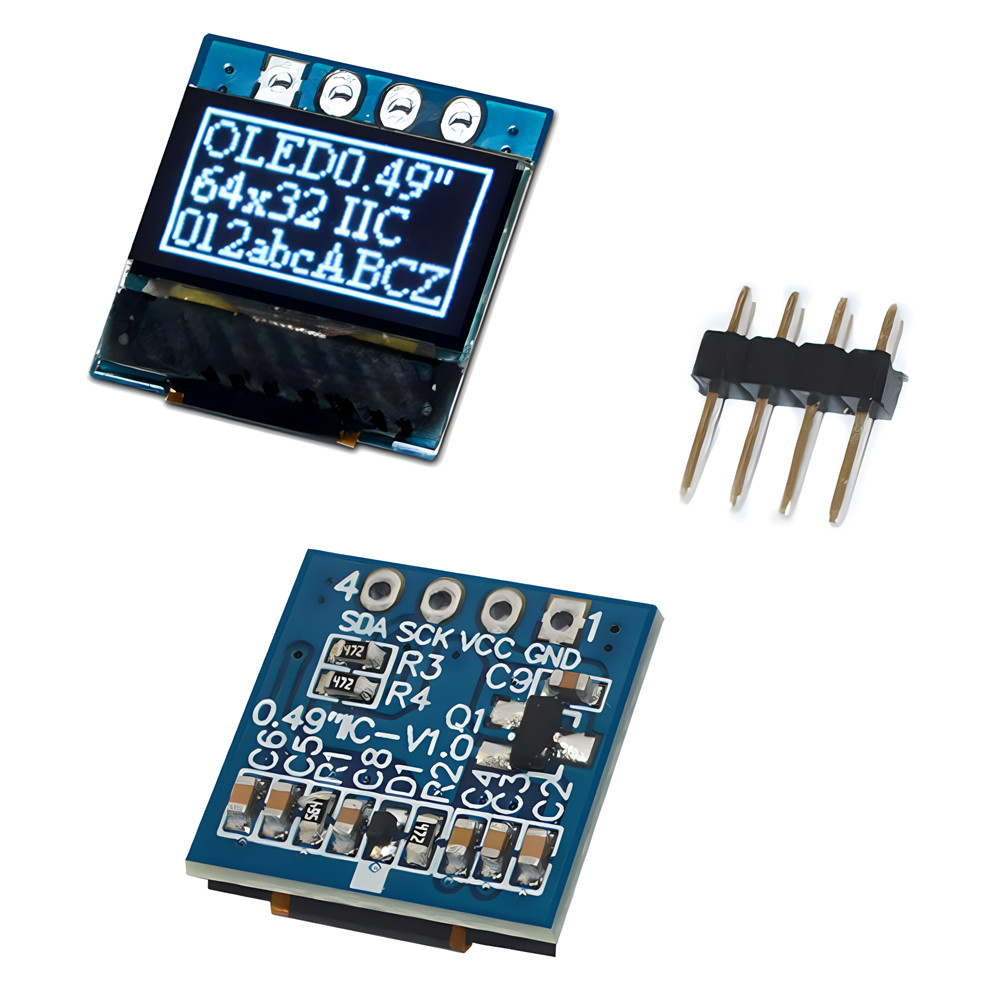

Graphic OLED 0.49 inch with 4 header pin SSD1315 Support I2C
Interface Product Image
