About this item SFTO686XC-7108BN
Industrial grade 6.68-inch strip TFT LCD display with a resolution
of 480x1280 pixels and high brightness of 800 nits, designed to
provide clear display in various lighting conditions. The following
is a detailed introduction of the product:
Display screen specifications:
Size: 6.68 inches, suitable for industrial applications with
limited space.
Resolution: 480x1280 pixels, providing clear image and text
display, suitable for occasions that require high-resolution
display.
Display technology:
Adopting TFT (Thin Film Transistor) technology ensures fast
response and high contrast display, suitable for dynamic images and
videos.
Brightness:
The high brightness of 800 nits ensures clear visibility in bright
industrial environments or outdoor conditions.
Color:
Supports 16.7 million color display, capable of presenting rich
colors and delicate images.
Interface type:
May provide MIPI interface, which is a high-speed serial interface
suitable for connecting mobile devices and high-performance display
modules.
Viewing angle:
Industrial grade TFT LCDs typically have a wide viewing angle(IPS
Type), ensuring a good visual experience from different angles.
Working temperature:
Designed to meet industrial standards, capable of stable operation
over a wide temperature range from -20C to +70C and adapting to
various harsh environments.
Durability:
High durability design, suitable for 24/7 uninterrupted operation,
ensuring long-term stability and reliability.
Application scenarios:
Suitable for various industrial and commercial applications such as
industrial automation, medical equipment, traffic monitoring,
security monitoring, etc.
Customized services:
According to customer needs, customized services may be provided,
including specific interfaces, sizes, brightness, etc.
This 6.68-inch industrial grade TFT LCD display is an ideal choice
for industrial applications that require clear display in various
lighting conditions due to its high resolution, high brightness,
and wide viewing angle characteristics.
Features
| Item | Contents | Unit |
| LCD Type | TFT | - |
| Display color | 16M | |
| Viewing Direction | ALL | O’clock |
| Operating temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Module size | 66.6*181.0*4.6 | mm |
| Active Area(W×H) | 60.19*160.51 | mm |
| Number of Dots | 480×RGB×1280 | dots |
| Power Supply Voltage | 3.3 | V |
| Backlight | 12-LEDs (white) | pcs |
| Brightness(LCM) | 800 | cd/m² |
| Data Transfer | MIPI | - |
| LCM Connector Type | AFC30-S40FCC-00 | 0.5PITCH 40pin |
| Driver IC | FL7707 | |

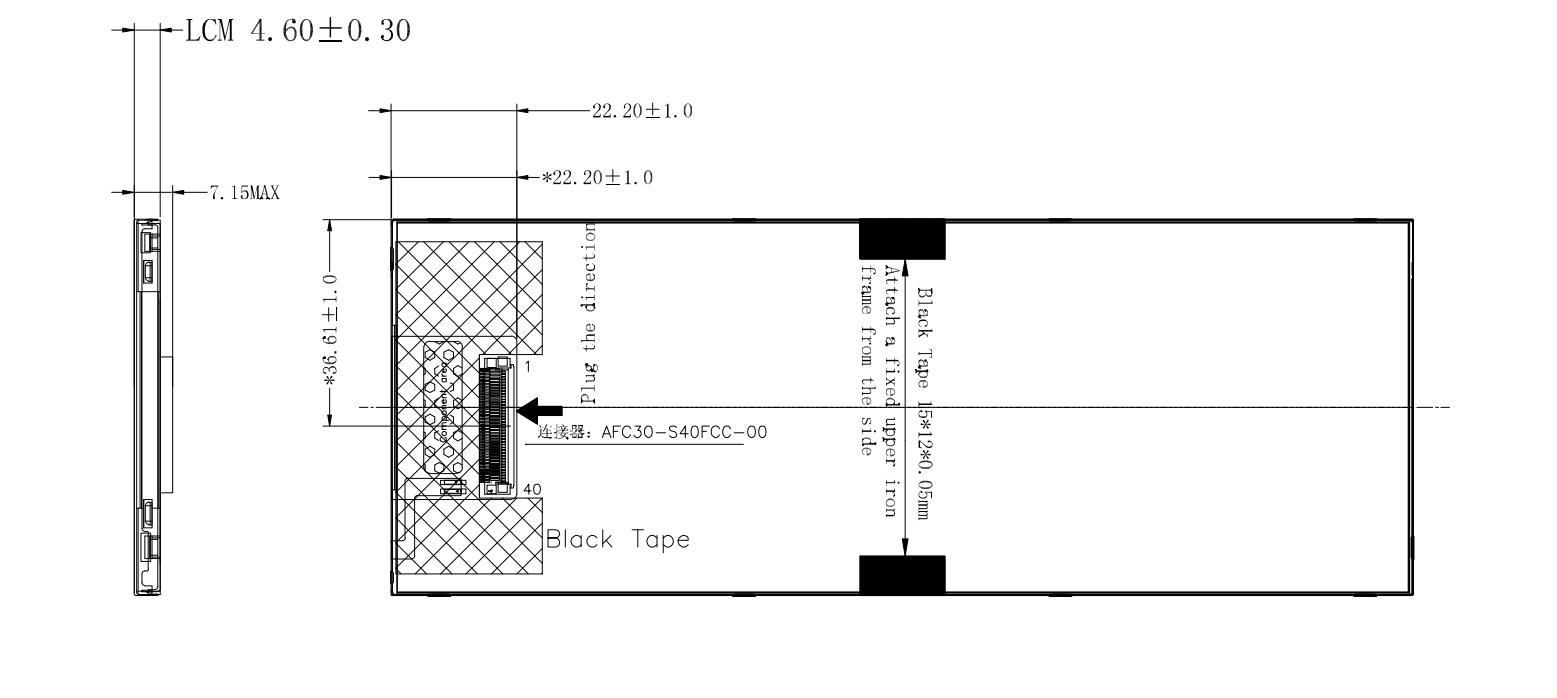

Mechanical Drawing
Pin Description
| Pin No. | Symbol | Function |
| 1 | GND | Ground |
| 2 | D0P | MIPI Data lane0 input (positive) |
| 3 | D0N | MIPI Data lane0 input (negative) |
| 4 | GND | Ground |
| 5 | D1P | MIPI Data lane1 input(positive) |
| 6 | D1N | MIPI Data lane1 input(negative) |
| 7 | GND | Ground |
| 8 | CLKP | MIPI CLK input (positive) |
| 9 | CLKN | MIPI CLK input (negative) |
| 10 | GND | Ground |
| 11 | D2P | MIPI Data lane2 input(positive) |
| 12 | D2N | MIPI Data lane2 input (negative) |
| 13 | GND | Ground |
| 14 | D3P | MIPI Data lane3 input(positive) |
| 15 | D3N | MIPI Data lane3 input (negative) |
| 16-17 | GND | Ground |
| 18-19 | VCC-1V8 | IO Power Supply(1.65V~3.6V) |
| 20 | REFCLK/NC | NC |
| 21 | SDA/NC | NC |
| 22 | SCL/NC | NC |
| 23 | BIST/NC | NC |
| 24 | RSTB | global reset pin. Active low to enter reset state. suggest to
connecting with an RC reset circuit for stability. Normally pull
high. |
| 25 | STBYB | NC |
| 26 | AVDD/NC | NC |
| 27 | GND | Ground |
| 28-29 | K | Backlight LED Ground |
| 30 | GND | Ground |
| 31 | VGL/NC | NC |
| 32-33 | GND | Ground |
| 34 | VGH/NC | NC |
| 35-36 | A | Backlight LED Power |
| 38-39 | VDD-3V3 | Power Supply(3.3~3.6V) |
| 40 | VCOM/NC | NC |
Absolute Maximum Ratings
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Power supply | VDD | Ta=25℃ | - | 3.3 | - | V |
| Gate On Power Supply Voltage | VGH | | - | 15 | - | V |
| Gate Off Power Supply Voltage | VGL | | - | -11 | - | V |
Electrical characteristics(Vss=0V ,Ta=25℃)
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Power supply | VDD | Ta=25℃ | - | 3.3 | 3.6 | V |
| Power supply | IOVCC | Ta=25℃ | - | 1.8 | - | V |
| Input voltage | ‘H’ | VIH | VIOVCC=1.8V | 0.8VIOVCC | - | VIOVCC | V |
| ‘L’ | VIL | VIOVCC=1.8V | 0 | - | 0.2VIOVCC | V |
LED backlight specification(VSS=0V ,Ta=25℃)
| Item | Symbol | Condition | Min | Typ | Max | Unit |
| Supply voltage | - | - | - | 9.6 | - | V |
| Supply current | If | - | - | 240 | - | mA |
| Forward current | Normal | Ipn | 3-chip series x 4 | - | | - | mA |
| Dimming | Ipd | - | - | - |
| LED LIFE | - | - | 40000 | - | - | Hrs |
Product Image
