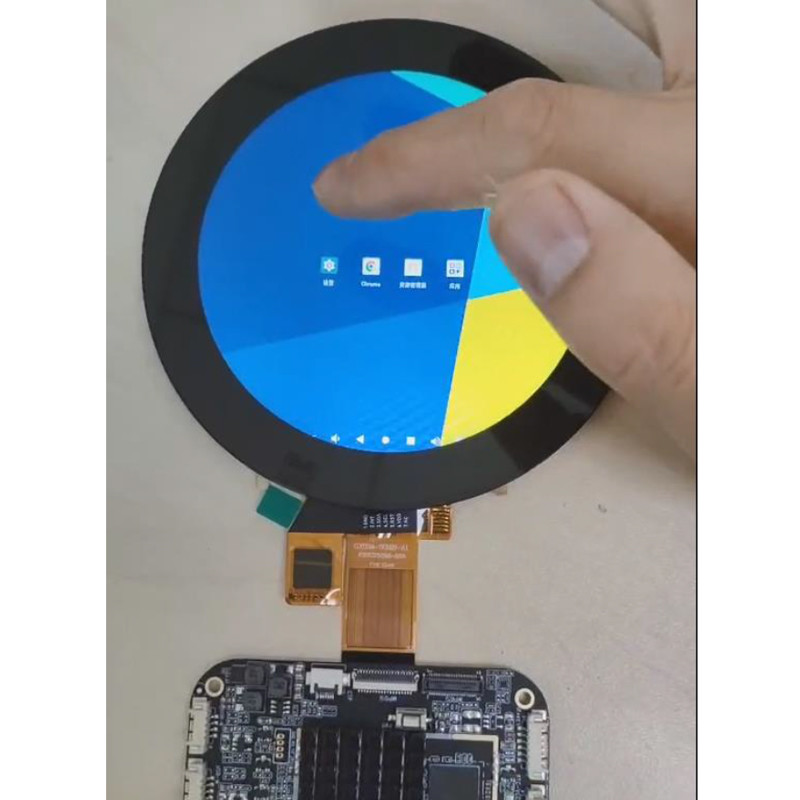

3.4 Inch Custom Round Lcd Android RK3566 Advertising Media Display
With With PCAP Touch Product Description
The SFAD340XC-8998A-N board is equipped with Rockchip's RK3566
high-performance, low-power quad-core application processor Android
11.0 system, the main frequency is up to 1.8GHz. The embedded 3D
GPU enables the RK3566 with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and
Vulkan 1.1 are fully compatible. The special 2D hardware engine
will maximize the lift High display performance and provides very
smooth operation. The built-in NPU supports 0.8T computing power,
and supports almost full grid H.264 decoder 4K@60fpsH.265 decoder
4K@60fps also supports H.264/H.265 encoders 1080p@60fps,
high-quality JPEG encoder/decoder. Integrated multi-channel LCD
driver, WIFI, BT, power
In one place, it supports the decoding of most of the current
popular video and picture formats, and supports MIPI interface
display
screen, simplifying the design of the whole machine system.
| Product: | 3.4 Inch Round Android Advertising Player | Touch Screen: | Capacitive Touch Panel (CTP) Optional |
|---|
| Resolution: | 720x720 | Viewing Direction: | IPS Full Viewing Angle |
|---|
| CPU: | Rockchip RK3566 UP To1.8GHz | Android: | 11 |
|---|
| GPU: | Mali-G52-2EE | Memory: | 2G LPDDR4X/LPDDR4 |
|---|
| Playback Mode: | Multiple Playback Modes Such As Looping, Timing, And Interstitial | USB2.0 Interface: | 2 X USB HOST (2 X USB With Built-in Headers) |
|---|
| USB OTG: | 1 STANDARD TYPEC 2.0 INTERFACE | MIPI: | Up To 2560*1440 |
|---|
| Audio Output: | The Left And Right Channels Output 8R/2W Speakers | System Updates: | Support PC Updates |
|---|
3.4 Inch Custom Round Lcd Android RK3566 Advertising Media Display
with with PCAP touch Product Description

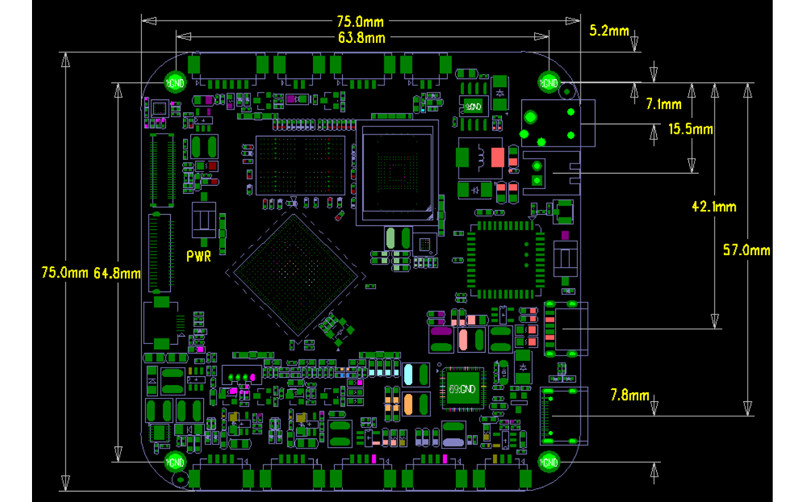

Android Board Drawing 1
Characters of the product
◆ High integration. Integrated USB/WIFI/BT/MIPI/SERIAL/hacker and
other functions to simplify the whole machine Design, the whole
machine design is more beautiful.
◆ High definition. Support 1080P/H.265 (2K) video decoding and
various MIPI signal LCD display Display.
◆ Comes with power amplifier. Support dual-channel 8R/2W power
amplifier.
◆ Rich interfaces. Support USB/serial/GPIO/ADC interface expansion,
which can meet the mainstream on the market Peripheral.
◆ Functional. Support horizontal and vertical screen playback,
video split screen, rolling subtitles, timer switch, USB Data
import and other functions.
◆ Convenient management: Humanized playlist making software, easy
to manage and control advertising playback. Playback logs for easy
understanding of playback.
Android Ad Machine auto-play app
As the most popular operating system, the Android platform is known
for its outstanding openness. And its combination with digital
signage can bring people more imagination. The development of the
digital signage industry to this day can be described as the
refinement of the division of labor, the refinement of the
industry, and the refinement of the application, and the
traditional digital signage can no longer be satisfied. The open
platform can allow different manufacturers in the industrial chain
to cooperate more closely, control the details more
comprehensively, realize the concept of content is king, service
first, and build a platform for customers to truly realize
customized and personalized services.
After integrating the computer based on the Android platform into
the terminal of the information release system, it can realize
customized applications for specific occasions and have basic
information advertising functions. Customized interactive touch
query function and game entertainment function are integrated,
taking advantage of the small size of a tablet. Easy to move.
Flexible features, open up new applications in the field of mobile
digital signage, to meet individual customer needs. For example,
the electronic menu system can be applied to hotels, high-end
restaurants, KTV bars, etc., and has the ability to realize
intuitive style query of dishes and drinks. Function introduction,
etc. You can recommend special items such as discounts, discounts,
and signboards to customers through the function of advertising
release, and have the function of placing orders directly. It can
also be used as an entertainment terminal for customers, such as
playing some small games or watching movies and videos before
meals. Meet the entertainment needs of customers with extra time:
In addition to the application in hotels and catering, the platform
is also in the targeted and personalized application market in many
industries such as hospitals, automobiles, real estate, and
tourism.
