3.4 Inch Round TFT LCD Display 800x800 Pixels for Automotive Application Product Introduction

The SFTO340XC-7093A-CT is a 3.4-inch, 800x800 round TFT LCD display module. It features a brightness of 1000 cd/nits (typical value), with a contrast ratio of 1000:1 (typical value). The power supply voltage (VCC) for driving the LCD panel is 2.6V to 3.3V. This 3.4 inch IPS-LCD type TFT can operate at temperatures ranging from -20 ℃ to+70 ℃; Its storage temperature is between -30 ℃ and+80 ℃.
The 3.4 inch TFT LCD display is a small display module suitable for a variety of applications, including
Internet of Things (IoT) devices: Suitable for integration into IoT devices such as smart home systems and industrial control systems.
Medical devices: Ideal for use in portable defibrillators, insulin pumps, and other medical monitoring and diagnostic devices.
Industrial automation: Perfect for deployment in machine control systems, process control systems, and monitoring systems within industrial automation.
Gaming: Well-suited for integration into gaming applications such as handheld game consoles.
These applications represent just a few examples of the diverse potential uses for a 3.4-inch TFT display. The specific utilization will depend on the product's requirements and the desired features and performance of the display.

Features

• This 3.4 inch TFT LCD display is a resolution of 800x800 pixels round display.
• This 3.4 LCD display module is equipped with an FL7707 driver IC functions and supports MIPI interface.
• This 3.4 inch TFT display has the power supply voltage (Vdd) ranges from 2.6V to 3.3V (typical value of 2.8V).
• This 3.4 inch round LCD screen is IPS type display with a full view angle 85/85/85/85 max.
• this 3.4 inch circular TFT SFTO340XC-7093A-CT is displayed with a brightness of 1000 nits.
• Whether used indoors or outdoors, this 3.4-inch TFT LCD display can meet various display requirements. It is a multifunctional and high-performance solution suitable for a variety of applications

Product information

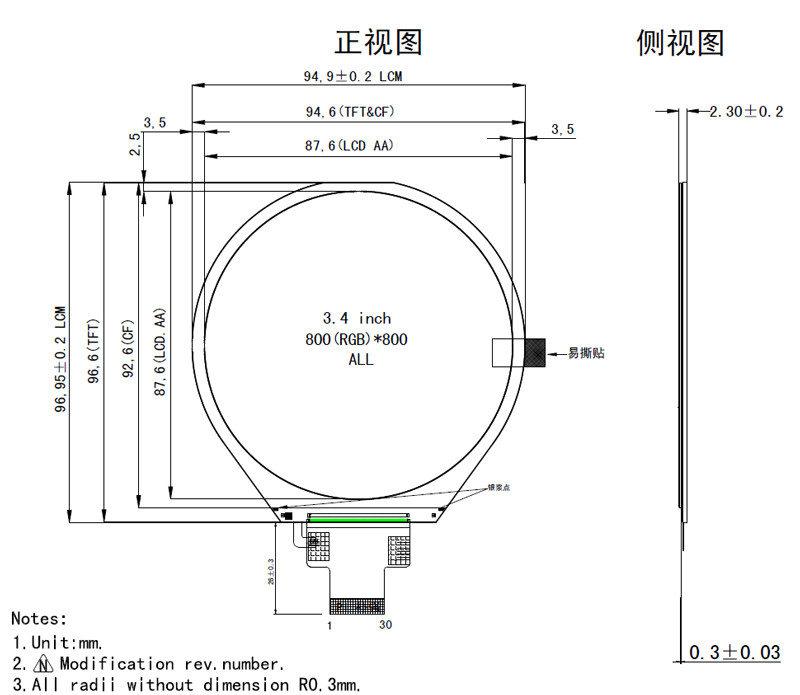

3.4 Inch Round TFT LCD Display 800x800 Pixels for Automotive Application Product Drawing


Pin Definition
Pin1 LEDA LED anode
Pin2 LEDK1 LED Cathode
Pin3 LEDK2 LED Cathode
Pin4 VCI Power Supply 2.8~3.3V
Pin5 IOVCC Power Supply 1.8V-2.0V
Pin6 RESET LCM reset signals
Pin7 TE Tearing effect output
Pin8 PWM The PWM frequency output for LCD driver control.
Pin9 GND Ground
Pin10 D0P DSI-D0+ data signals
Pin11 D0N DSI-D0- data signals
Pin12 GND Ground
Pin13 D1P DSI-D1+ data signals
Pin14 D1N DSI-D1- data signals
Pin15 GND Ground
Pin16 CLKP DSI-Clock+
Pin17 CLKN DSI-Clock-
Pin18 GND Ground
Pin19 D2P DSI-D2+ data signals
Pin20 D2N DSI-D2- data signals
Pin21 GND Ground
Pin22 D3P DSI-D3+ data signals
Pin23 D3N DSI-D4- data signals
Pin24 GND Ground
Pin25 TP_INT Touch Interrupt
Pin26 TP_SDA Touch IIC Data signal
Pin27 TP_SCL Touch IIC Clock signal
Pin28 TP_RESET Touch Reset Signal
Pin29 TP_VCI Touch Power supply
Pin30 TP_IOVCC Touch Power supply

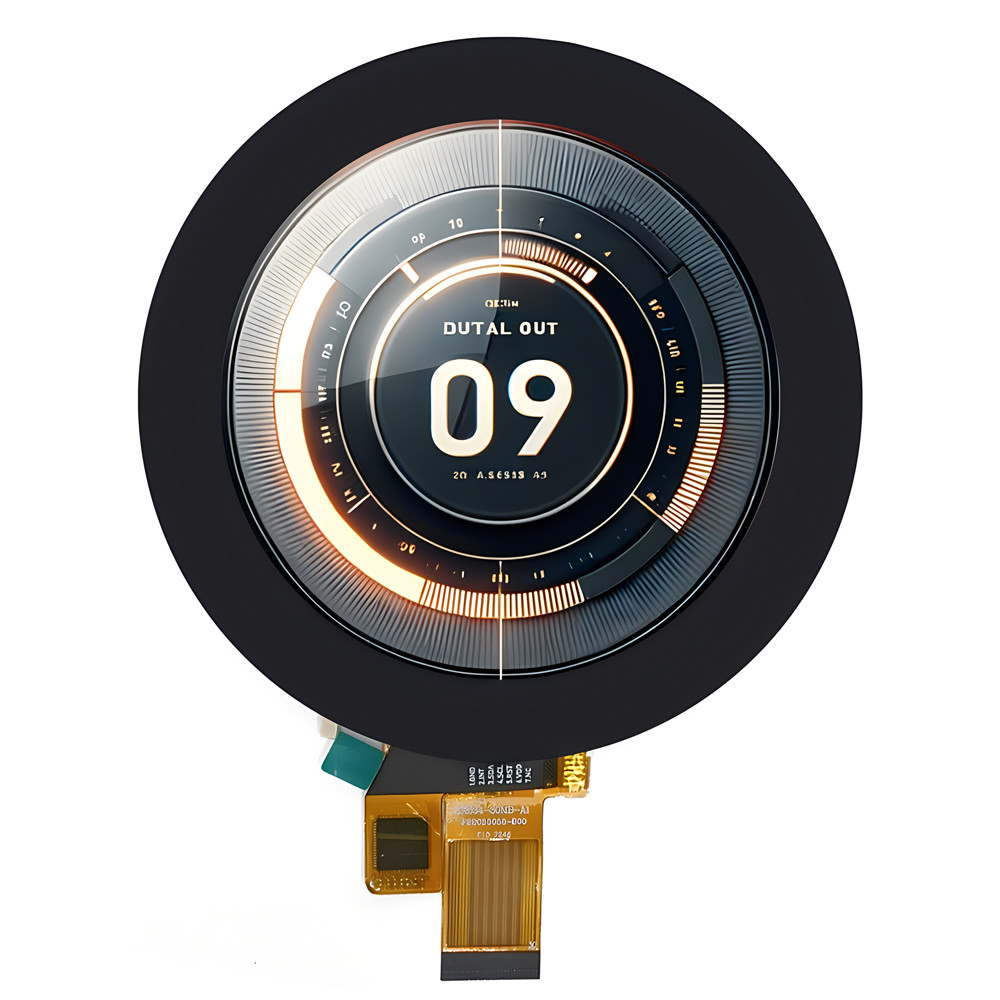

3.4 Inch Round TFT LCD Display 800x800 Pixels for Automotive Application Product Image
