4.2 Inch Color E-Ink EPaper Display 400*300 Dots For Signage Low
Power Consumption Ultra-Thin Display Description
SAEF Technology SFEPD420ZHBWR-7050MN11 is a 3-Colors 4.2” a-Si,
active matrix TFT, Electronic Paper Display (EPD) panel. The panel
is capable to show Black, White. The panel has high resolution
(120dpi) that it is able to easily display fine patterns. Due to
its bi-stable nature, the EPD panel requires very little power to
update and needs no power to maintain an image.
Features
1 a-Si TFT active matrix Electronic Paper Display(EPD)
2 Three colors support: White, Black, Red
3 Resolution: 400 x 300
4 Ultra-low power consumption
5 Super Wide Viewing Angle - near 180°
6 Extra thin & light
7 SPI interface
8 RoHS compliant
| Product: | 4.2-Inch Color E-Ink EPaper Display | Resolution: | 400 X300 Dots Resolution |
|---|
| Display Mode: | Active Matrix Electrophoretic Display(AM EPD) | Optics: | All Viewing Angles |
|---|
| Outline Dim.: | 91 (H) X 77(V)x 0.9(T) mm | Active Area: | 84.8 (H) X 63.6(V) mm |
|---|
| Pixel Pitch: | 0.212x 0.212 (120dpi) | Operating Temp: | 0°C To +40°C |
|---|
| Storage Temp.: | -25°C To +60°C | Color: | Black/White/Red |
|---|
| Surface Treatment: | Anti-Glare, 3H | Pin Number: | 24 Pins |
|---|
| Interface: | SPI | Pixel Arrangement: | Vertical Stripe |
|---|
| Input Current: | 4.93 MA | Compliance: | Rohs & Reach Compliant |
|---|
Application
Signage, Electronic Shelf Label System, e-paper readers, e-paper
notebooks, mobile phones, computers, monitors, wearable products,
4.2 Inch Color E-Ink EPaper Display 400*300 Dots For Signage Low
Power Consumption Ultra-Thin Display Drawing

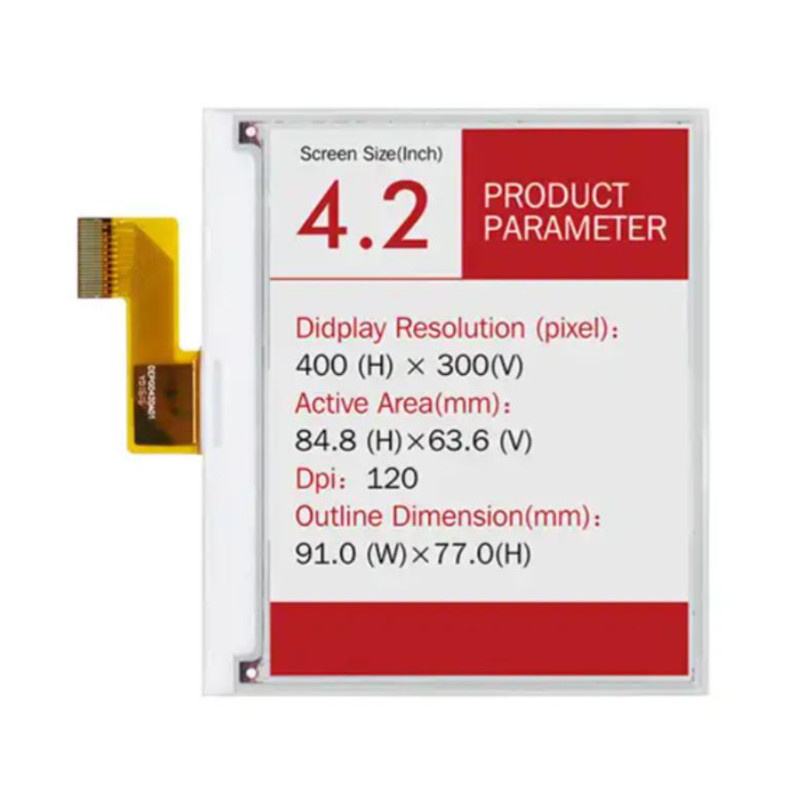

4.2 Inch Color E-Ink EPaper Display 400*300 Dots For Signage Low
Power Consumption Ultra-Thin Display Product Image
Epaper Applications and advantages:
The application scenarios are expanded to multiple fields, and the
performance advantages are more prominent.
E-ink screens are conducive to the development of different end
soft products for rollable, foldable and wearable product
applications. As consumer electronics shipments gradually slow
down, we believe that major brands are beginning to deploy new
display solutions to provide customers with differentiated
experiences. We are optimistic about the advantages of electronic
ink screens in energy saving, eye protection, etc., and are
expected to achieve breakthroughs in consumer electronics terminal
products with good user experience, thereby promoting the
continuous growth of the market scale.
The e-ink screen has advanced application characteristics and has
made great progress in display technology. E-ink screens can be
used in applications such as e-books, e-newspapers, portable signs,
and foldable displays. The e-ink screen has the characteristics of
low power consumption, light weight, durability and convenience in
direct light. Compared with traditional LCD screens, the main
advantages of e-ink screens are paper-like readability and lower
power consumption.
Commercial: Electronic tags are mainly used in retail, office,
manufacturing, medical, financial and other fields
Commercial use is currently a key area for the application and
development of e-paper products, mainly including nine application
fields, including smart retail, smart education, smart healthcare,
smart office, smart transportation, smart logistics, smart civil
aviation, smart industry, and digital finance. Overall, we believe
that commercial market opportunities are expected to increase
significantly during the forecast period. Moreover, the
technological advantages of digital signage and the incorporation
of smart cities, new technology applications such as whiteboards,
and interactive signage in different shapes are expected to drive
further growth in the market.
At present, e-paper mainly focuses on the paper-like and low-power
IoT market, and the fundamental goal of the e-paper industry market
is not the application market of liquid crystal displays, but to
replace traditional paper and realize various industrial
applications of digitalization, recycling and intelligent IoT.
According to the statistics in the "E-paper Industry Market
Development Report" of Epaper Insight, CINNO Research, the three
major application fields of electronic price tags, e-paper readers
and notepads accounted for more than 95% of the global e-paper
display module product market in 2020.
